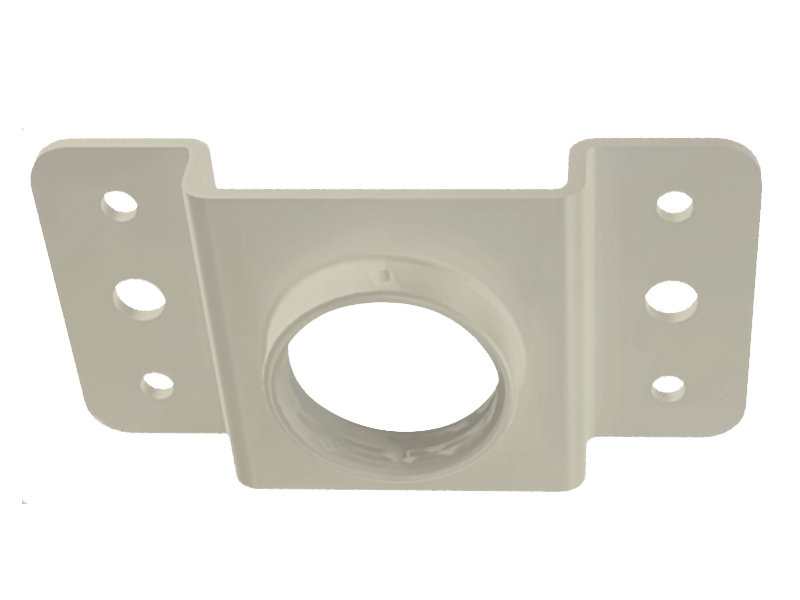

Hanwha - SBP-302CMA - Mounting plate for the telescopic pendant mount SBP-302CM
Part number:
SBP-302CMA
Price:
Mounting plate for the telescopic pendant mount SBP-302CM
| Materials | Steel |
| Dimensions (WxHxD) | 5.98" x 3.15" x 1.34" (152.0 x 80.0 x 34.0mm) |
| Pipe Thread | 1.5" NPT female (bottom) |
| Weight | 0.9lb (0.4kg) |
| Max Load | 80lb (36.2kg) |
| Pivot Angle | N/A |
| Color | Ivory |
| Applicable Mount | All Hanwha Hanging Mount (1.5" NPT) |
| Optional Accessories | SBP-302CM telescopic pendant mount SBP-302CMS swivel mount adapter SBP-302CM-12 extension pipe, 12" SBP-302CM-36 extension pipe, 36" |
| Cable Routing | Cable hole |
Name
Description
Size
Downloads
File
Hanwha Techwin America - NDAA Compliant Product List
0.5mb
File
SBP-302CMA CAD
0.5mb
File
SBP-302CMA Manual
1mb
