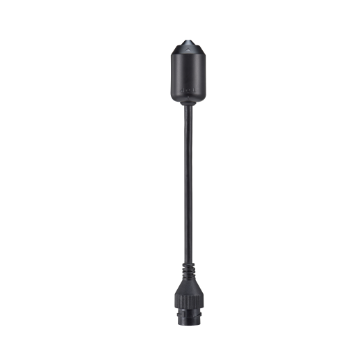

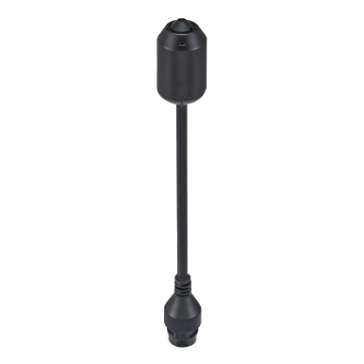

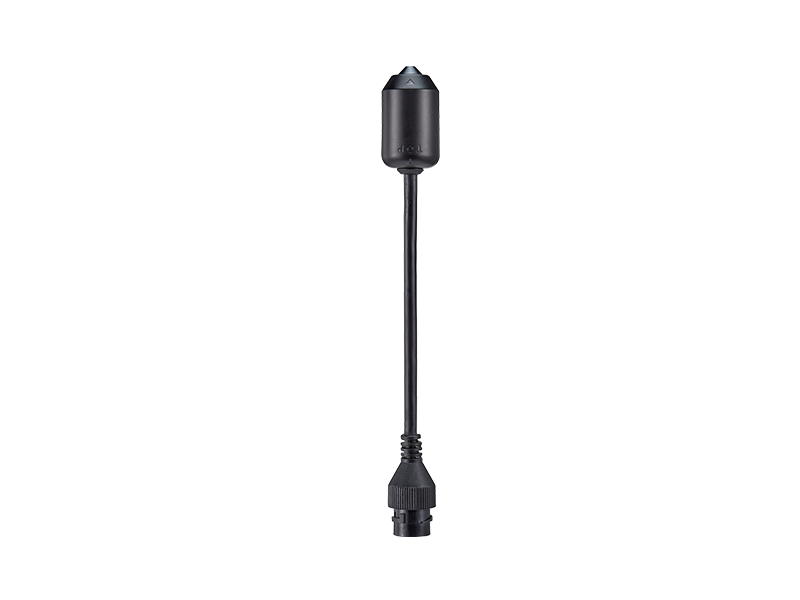

Hanwha - SLA-T4680 - 4.6mm Pinhole Lens Module
Part number:
SLA-T4680
Price:
4.6mm pinhole lens module, compatible with the XNB-6001, straight body style, 2MP @ 60fps, 0.06 Lux, 120dB WDR, 73º horizontal field of view, 8 meters/ 26 feet cable
Key Features:
- Compatible with XNB-6001
- Max. 2M (1920 x 1080) resolution
- 0.06 Lux@F2.5
- 4.6mm pinhole lens
| SLA-T4680 | |
| Imaging Device | 1/2.8" 2M CMOS |
| Total Pixel | 1,945(H) x 1,109(V) 2.16M |
| Effective Pixel | 1,945(H) x 1,097(V) 2.13M |
| Scanning System | Progressive Scan |
| Min Illumination | Color : 0.06Lux (F2.5) B/W: 0.06Lux (F2.5) |
| S/n Ratio | 50dB |
| Wide Dynamic Range | 120dB |
| Day & Night | Electrical |
| Lens | |
| Focal Length Zoom Ratio | 4.6mm |
| Max. Aperture Ratio | F2.5 |
| Angular view of Field | H : 73° / V : 39° / D : 85° |
| Min Object Distance | 0.3m (0.98ft) |
| Lens Type | Pinhole |
| Mount Type | RJ12 connected with main unit |
| Environmental | |
| Operation Tempreture/ Humidity | -10°C ~ +55°C (+14°F ~ +131°F) /Less than 90% RH |
| Storage Tempreture/ Humidity | -50°C ~ +60°C (-58°F ~ +140°F) /Less than 90% RH |
| Mechanical | |
| Color/Metal | Lens : Black / Plastic Cable : Black |
| Dimension (W x H x D) | Lens : Ø24 x 42mm |
| (Ø0.94" x 1.65") Cable : 8m (314.96") | |
| Weight | 310g (0.68 lb) |
