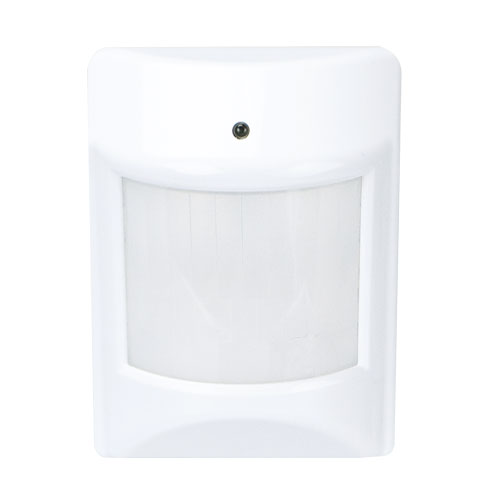

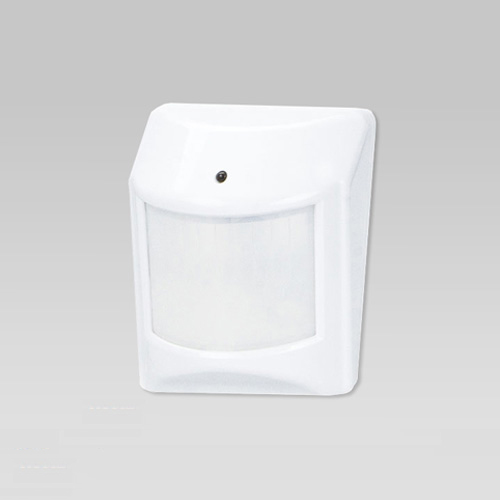

Planet - HZS-100A - PIR sensor (FCC-908.42MHz). Z-Wave Plus™, 120 Degree Horizontal Angle Coverage, 2~10 meter Motion Range, Temperature, LED Status Indicator, Low battery detection
Part number:
HZS-100A
Price:
PIR sensor (FCC-908.42MHz). Z-Wave Plus™, 120 Degree Horizontal Angle Coverage, 2~10 meter Motion Range, Temperature, LED Status Indicator, Low battery detection
Features:
- Z-Wave 500 series module inside
- Wall mount mechanism
- Auto switch-off delay time settings
- 120-degree motion detection
- Detects changes in movement via infrared technology
- Tamperproof protection
- Low-power consumption for long battery life
- Battery capacity detection (with the HAC-1000 Control Gateway)
- Temperature report (with the HAC-1000 Control Gateway)
- App and control pad alerts for any situation (with App Cloud Home and HTS-1000P Control Pad)
| Hardware and Network | |
| Z-Wave Frequency | America: 908.42MHz Europe: 868.42MHz |
| Installation Height | About 2 meters |
| PIR Detecting Distance | 3~10 meters |
| PIR Detecting Angle | 120 degrees coverage |
| LED Indicators | Movement detected (red) |
| Operating Range | Up to 30 meters in open space |
| Delay Time Adjustment | 1~255 minutes |
| Installation | Wall mount, indoor use |
| General | |
| Power Requirements | CR123A 3V |
| Operating Temperature | -15 ~ 40 degrees C |
| Operating Humidity | 0 ~ 90% (non-condensing) |
| Weight | 75g |
| Dimensions (W x D x H) | 84 x 62 x 50 mm |
| Emission | CE, FCC |
Name
Description
Size
Downloads
File
Datasheet
0.9mb
File
Quick Guide
0.5mb
