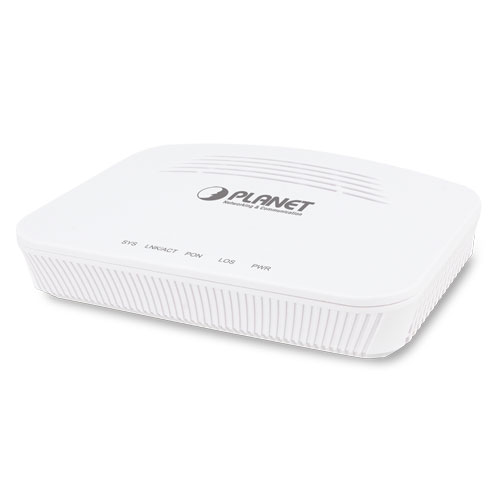

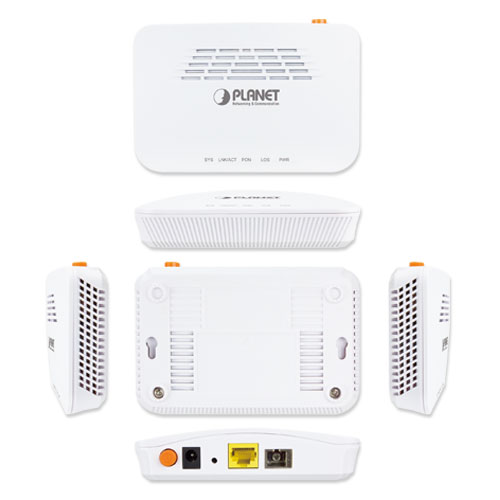

Planet - EPN-110 - GEPON SFU ONU
Part number:
EPN-110
Price:

Perfectly Designed for FTTx Applications
PLANET EPN-110 is a GEPON Optical Network Unit (ONU) equipped with one GEPON port and one Gigabit Ethernet RJ45 interface. When functioning with PLANET GEPON Optical Network Terminal (OLT), the EPN-110 provides highly-effective GEPON solutions for FTTx network. With the friendly-centralized GUI management, it is easy for the installation and maintenance of GEPON deployment.



Cost-effective Passive Optical Network Connection Solution
With increasing network services such as HDTV, IPTV, voice-over-IP (VoIP) and multimedia broadband applications, the demand of broadband communication has grown quickly. Passive Optical Network (PON) is the most promising NGN (Next Generation Networking) technology to meet the needs. As compared to other broadband access technologies such as xDSL and cable modem, Passive Optical Network (PON) technology offers competitive advantages including a long-term life expectancy of the fiber infrastructure, lower operating costs through the reduction of “active” components, support of up to 20km long distance between equipment nodes, and most importantly, offer of much greater bandwidth.



Robust ONUs Management
The EPN-110 is designed to work with PLANET OLT to provide robust FTTx applications. With the Element Management System (EMSbuilt in the PLANET OLT, the administrators can manage and configure the facilities such as adding or removing PLANET OLTs and ONUs to or from the network architecture easily and economically. The EMS also supports many operating and monitoring functions for efficient ONUs management including ONU auto-detection, auto-registration, testing of link connection, binding of MAC address and filtration, bandwidth control, flow control, and multicast stream control.

Hardware Specifications
Transmission Speed Downstream: 1.25 Gbps
Upstream: 1.25 Gbps
Port PON Port: 1 PON port
Ethernet Port: 1 RJ45 port (10/100/1000BASE-T)
Fiber Maximum Distance 20km
Optic Wavelength TX: 1310mm, RX: 1490mm
Optical Receive Sensitivity -27 dBm
Input Saturation Power -3 dBm
Signal Detect Assert Power -27 dBm
Signal Detect De-assert Power -42 dBm
LED Indicators 1 Power LED
1 PON LED
1 Link LED
1 LOS LED
1 SYS LED
Dimensions (W x D x H) 120 x 96 x 29 mm
Weight 95g
Power Input 12V DC, 0.5A
EMS Utility Specifications
ONU Features MAC address learning
Supports IGMP snooping
64 MAC addresses
Service Level Agreement (SLA)
Remote loop-back test
ACL and MAC filtering
IEEE 802.3ah compliant Forward Error Correction (FEC)
Standards Conformance
Standards Compliance IEEE 802.3 10BASE-T
IEEE 802.3u 100BASE-TX
IEEE 802.3ab 1000BASE-T
IEEE 802.3x flow control and back pressure
IEEE 802.1w Rapid Spanning Tree Protocol
Safety CE
Environment Specifications
Temperature Operating temperature: -5 ~ 55 degrees C
Storage temperature: -30 ~ 60 degrees C
Humidity Operating humidity: 10 ~ 90% non-condensing
Storage humidity: 10 ~ 95% non-condensing
