Acti - PPSW-0102 - PLANET FGSD-1011HP 8-Port 802.3at PoE Switch (PoE Budget 120W)
Part number:
PPSW-0102
Price:

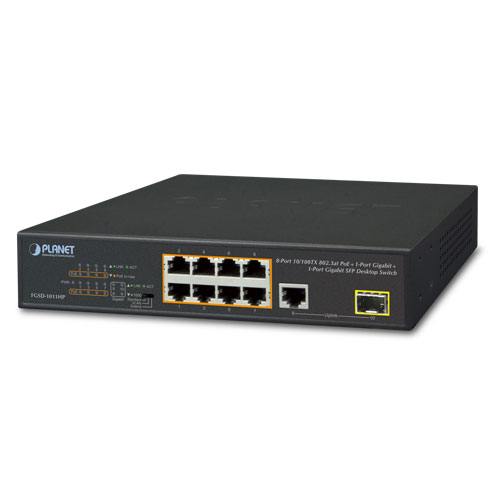

PLANET FGSD-1011HP 8-Port 802.3at PoE Switch (PoE Budget 120W)
| Device | |
| Original Manufacturer | PLANET |
| Product Type | Data Switch |
| Original Model | FGSD-1011HP |
| Description | PLANET FGSD-1011HP 8-Port 802.3at PoE Switch (PoE Budget 120W) |
| Network | |
| Ethernet Port | Total ports: 9 port(s) |
| PoE: 8 port(s), Ethernet (10/100 Base-T), RJ-45 connector | |
| Non-PoE: 1 port(s), Ethernet (10/100/1000 Base-T), RJ-45 connector | |
| General | |
| PoE Standard | IEEE 802.3af, IEEE 802.3at |
| PoE Output | Maximum 30 Watts per port |
| PoE Power Budget | Maximum 120 W |
| Power Source | AC 100-240V |
| Weight | 1220g (2.65lb) |
| Dimensions | (W x H x D): 220mm x 44mm x 150mm (8.66" x 1.73" x 5.90") |
| Operating Temperature | 0°C ~ 50°C (32°F ~ 122°F) |
| Storage Temperature | -10 °C ~ 70 °C (14 °F ~ 158 °F) |
| Approvals | CE, FCC |
| Warranty | 1 Year(s) |
Name
Description
Size
Downloads
File
Datasheet
0.7mb
