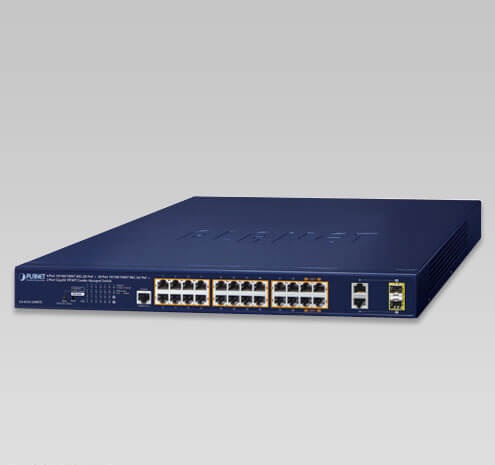

Planet - GS-4210-24HP2C - 4-Port 10/100/1000T 802.3bt PoE + 20-Port 10/100/1000T 802.3at PoE + 2-Port Gigabit TP/SFP Combo Managed Switch

Product Overview

The Planet GS-4210-24HP2C is a 1U managed Gigabit switch with 4 802.3bt PoE++ ports (up to 95W each), 20 PoE+ ports (up to 36W each), and 2 Gigabit TP/SFP combo uplink ports, providing a total PoE budget of 515W. It delivers 52Gbps switching capacity and 38.69 Mpps throughput, with intelligent PoE features including PD alive check, scheduled power recycling, PoE scheduling, usage monitoring, and Extend mode up to 250m. Smart fan design ensures efficient and quiet operation.

Key Configuration

• • Copper ports: 26 × 10/100/1000BASE-T RJ45 (ports 1-20 PoE+, ports 21-24 PoE++, ports 25-26 combo)
• • SFP slots: 2 × 100/1000BASE-X SFP (shared with ports 25-26, supports DDM)
• • PoE budget: 515W (standard mode) / 180W (fanless mode)
• • PoE output: ports 1-20: 54V DC, 36W max (802.3at); ports 21-24: 54V DC, 90W (802.3bt) / 95W (UPoE) / 60W (Force) / 36W (End-span/Mid-span)
• • Switch fabric: 52Gbps non-blocking; throughput: 38.69 Mpps @ 64 bytes
• • Dimensions: 440 × 330 × 44 mm (1U); weight: 4410g

Key Features

4 × 802.3bt PoE++ ports support high-power devices like PTZ cameras, AIO PCs, and digital signage. PoE Extend mode allows transmission up to 250 m at 10 Mbps, overcoming the standard 100 m limit. It includes PD alive check, scheduled power recycling, and per-port PoE scheduling for energy efficiency, plus real-time PoE usage monitoring via web interface. The switch features smart fan cooling (with optional fanless low-load mode), IPv4/IPv6 dual stack support, VLANs, link aggregation, STP/RSTP/MSTP, IGMP/MLD snooping, and 8 QoS priority queues. Security includes 802.1X, RADIUS/TACACS+, DHCP snooping, ARP inspection, IP-MAC binding, and DoS protection, with full management via web, Telnet, SNMP, SSHv2, and TLS 1.2 plus SFP-DDM monitoring.

Technical Context

The GS-4210-24HP2C supports 802.3bt PoE++ (95W) for high-power devices and 802.3at PoE+ (36W) for standard IP equipment. PoE Extend mode enables 250 m reach at 10 Mbps for remote cameras and APs. It includes PD alive check, scheduled reboot, and smart fan control for quieter operation. Dual PoE modes ensure compatibility, while SFP uplinks support long-distance fiber connections.

Installation Notes

1U rack-mount switch (440 × 330 × 44 mm, 4.41 kg) with auto-sensing 100–240V AC input and up to 590W power consumption. It operates from 0–50°C with fans or 0–40°C in fanless mode (180W PoE budget), plus 5–95% humidity support. Includes smart dual fans, ESD protection (6KV contact, 8KV air), and a reset function for reboot or factory reset. Supports configurable PoE per port (802.3bt, UPoE, 802.3at End/Mid-span, Force mode) with PoE Extend mode up to 250 m at 10 Mbps. Management is via web, Telnet, SNMP, SSH, and TLS. The package includes a rack kit, console cable, power cord, and SFP dust caps.
