The GS-5220-24UPL4XVR is a cost-optimized, 1.25U, Gigabit Ultra PoE Managed Switch with LCD Touch Screen and redundant power featuring PLANET’s intelligent PoE functions to improve the availability of critical business applications.

Amazing Touch LCD Ultra PoE Switches with Advanced L2+ /L4 Switching and Security

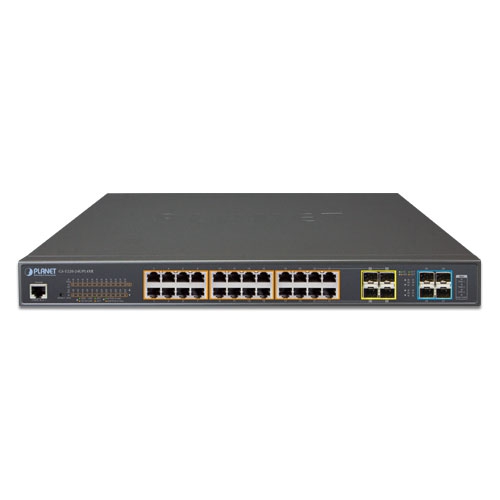

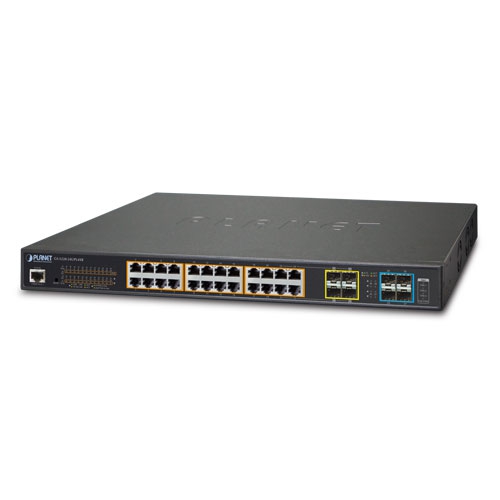

PLANET’s GS-5220-24UPL4XVR is a cost-optimized, 1.25U, Gigabit Ultra PoE Managed Switch with LCD Touch Screen and redundant power featuring PLANET’s intelligent PoE functions to improve the availability of critical business applications. It provides IPv6/IPv4 dual stack management and built-in L2+ /L4 Gigabit switching engine. The switch has 24 10/100/1000BASE-T ports featuring 75-watt Ultra PoE and 4 additional 10Gigabit SFP+ ports. With a total power budget of up to 600 watts, the GS-5220-24UPL4XVR provides a quick, safe and cost-effective ultra PoE network solution for small businesses and enterprises.

PLANET Network Management System (NMS) Solution

The IGS-10020HPT supports PLANET’s NMS via CloudViewer App which is an Intelligent App to monitor your network from the cloud. With a cloud network, it makes data and services available from anywhere with an Internet connection. With PLANET CloudViewer, your network status can be monitored in real time anytime, anywhere via your mobile phone or tablet. User can easily check network status, device information, and port and PoE statuses from the cloud to reduce management costs.

Smart and Intuitive LCD Control

PLANET’s unique Smart LCD PoE Switches provide intuitive touch panel on the front of the unit that facilitates the Ethernet management and PoE PD management. They greatly promote management efficiency in large-scale networks, such as enterprises, hotels, shopping malls, government buildings, and other public areas. The following are special management and status functions:

• PoE management and status
• System IP address, VLAN and QoS configuration
• Port management and status, and SFP information
• Troubleshooting: cable diagnostic and remote IP ping
• Maintenance: reboot, factory default and save configuration

Convenient and Smart ONVIF Devices with Detection Feature

PLANET’s newly developed feature, ONVIF Support, is specifically designed for co-operating with video IP surveillances. From the GS-5220-24UPL4XVR GUI, clients can search and view all of the ONVIF devices via network application. In addition, clients can upload floor images onto the switch which allows for easier inspection and planning of the switch being deployed. Moreover, clients can get real-time surveillance information and online/offline status, and also allows PoE reboot control from GUI.

75 Watts of Power over 4-pair UTP

The GS-5220-24UPL4XVR ultra PoE solutions adopt the IEEE 802.3at/af standard. Instead of delivering power over 2-pair twisted UTP, be it end-span (Pins 1, 2, 3 and 6) or mid-span (Pins 4, 5, 7 and 8), it provides the capability to source up to 75 watts of power by using all the four pairs of standard Cat. 5e/6 Ethernet cabling. In the new 4-pair system, two PSE controllers will be used to power both the data pairs and the spare pairs. It can offer more PoE applications, such as:

• Thin-client
• PoE PTZ speed dome
• AIO (All-in-One) touch PC
• Remote digital signage display
• Any network device that needs higher PoE power to work normally

Built-in Unique PoE Functions for Powered Devices Management

The GS-5220-24UPL4XVR is a managed PoE switch for surveillance, wireless and VoIP networks. The following are special PoE management functions:

• PoE schedule
• PD alive check
• PoE usage monitoring
• Scheduled power recycling

Intelligent Powered Device Alive Check

The GS-5220-24UPL4XVR can be configured to monitor connected PD (powered device) status in real time via ping action. Once the PD stops working and responding, the GS-5220-24UPL4XVR will resume the PoE port power and power back up the PD. The PoE port being able to reset the PDs power source will greatly enhance the network reliability and reduce administrator management burden.

Scheduled Power Recycling

The GS-5220-24UPL4XVR allows each of the connected PoE IP cameras or PoE wireless access points to reboot at a specified time each week. Therefore, it will reduce the chance of IP camera or AP crash resulting from buffer overflow.

PoE Schedule for Energy Saving

The environmentally friendly GS-5220-24UPL4XVR can effectively control the power supply while still providing high watts of power. The PoE schedule function helps you enable or disable PoE power feeding for each PoE port during specified time intervals and is a powerful function to help SMBs or enterprises save power and money. It also increases security by powering off PDs that should not be in use during non-business hours.

PoE Usage Monitoring

Via the power usage chart in the web management interface, the GS-5220-24UPL4XVR enables the administrator to monitor the status of the power usage of the connected PDs in real time. Thus, it greatly enhances the management efficiency of the facilities.

Cost-effective 10Gbps Uplink Capacity

The four 10G SFP+ slots of the GS-5220-24UPL4XVR support dual-speed 10GBASE-SR/LR or 1000BASE-SX/LX. The administrator now can flexibly choose the suitable SFP/SFP+ transceiver according to the transmission distance or the transmission speed required to extend the network efficiently. It greatly supports SMB networks to achieve the maximum performance of 10Gbps in a cost-effective way.

Redundant AC/DC Power Supply to Ensure Continuous Operation

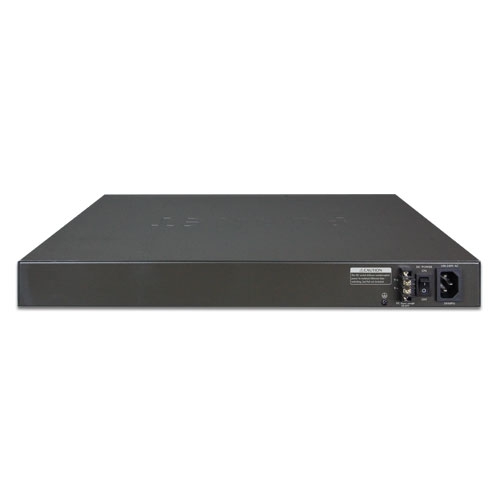

The GS-5220-24UPL4XVR is particularly equipped with one 100~240V AC power supply unit and one 36~60V DC power supply unit to provide an enhanced reliable and scalable redundant power supply. The continuous power system is specifically designed to fulfill the demands of high-tech facilities requiring the highest power integrity. With the 36~60V DC power supply, the GS-5220-24UPL4XVR is able to act as a telecom-level device that can be located in the electronic room.

Environment-friendly, Smart Fan Design for Silent Operation

The GS-5220-24UPL4XVR features a 19-inch metal housing, a low noise design and an effective ventilation system. It supports the smart fan technology that automatically controls the speed of the built-in fan to reduce noise and maintain the temperature of the PoE switch for optimal power output capability. The GS-5220-24UPL4XVR is able to operate reliably, stably and quietly in any environment without affecting its performance.

Solution for IPv6 Networking

With the IPv6/IPv4 dual stack and other management functions with user-friendly interfaces, the GS-5220-24UPL4XVR is the best choice for IP surveillance, VoIP and wireless service providers to deploy the IPv6 network. More importantly, it helps SMBs upgrade their network infrastructures to the IPv6 era without any monetary investment.

IPv4/IPv6 VLAN Routing for Secure and Flexible Management

To help customers stay on top of their businesses, the GS-5220 switch series not only provides ultra high transmission performance and excellent Layer 2 technologies, but also offers IPv4/IPv6 VLAN routing feature which allows to cross over different VLANs and different IP addresses for the purpose of having a highly-secure, flexible management and simpler networking application.

Robust Layer 2 Features

The GS-5220 series can be programmed for advanced switch management functions, such as dynamic port link aggregation, Q-in-Q VLAN, Multiple Spanning Tree Protocol (MSTP), Layer 2/4 QoS, bandwidth control and IGMP/MLD snooping. The SGS-5220 series allows the operation of a high-speed trunk combining multiple ports. It consists of a maximum of 14 trunk groups with 4 ports for each group, and supports connection fail-over as well.

Powerful Security

The GS-5220 series offers a comprehensive Layer 2 to Layer 4 access control list (ACL) for enforcing security to the edge. It can be used to restrict to network access by denying packets based on source and destination IP address, TCP/UDP port number or defined typical network applications. Its protection mechanism also comprises 802.1x Port-based and MAC-based user and device authentication. With the private VLAN function, communication between edge ports can be prevented to ensure user privacy.

Enhanced Security and Traffic Control

The GS-5220 series also provides DHCP Snooping, IP Source Guard and Dynamic ARP Inspection functions to prevent IP snooping from attack and discard ARP packets with invalid MAC address. The network administrator can now construct highly-secure corporate networks with considerably less time and effort than before.

User-friendly Secure Management

For efficient management, the GS-5220 managed switch series is equipped with console, web and SNMP management interfaces. With the built-in web-based management interface, the GS-5220 series offers an easy-to-use, platform independent management and configuration facility. The GS-5220 series supports SNMP and it can be managed via any management software based on the standard SNMP v1 or v2 Protocol. For reducing product learning time, the GS-5220 series offers Cisco-like command via Telnet or console port and customer doesn’t need to learn new command from these switches. Moreover, the GS-5220 series offers the remotely secure management by supporting SSH, SSL and SNMP v3 connection where the packet content can be encrypted at each session.

Intelligent SFP/SFP+ Diagnosis Mechanism

The GS-5220-24UPL4XVR supports SFP-DDM (Digital Diagnostic Monitor) function that greatly helps network administrator to easily monitor real-time parameters of the SFP and SFP+ transceivers, such as optical output power, optical input power, temperature, laser bias current, and transceiver supply voltage.

Features:

• Ports: 24 10/100/1000T Ultra PoE + 4 10G SFP+ and 1 console port
• Type: Managed
• Ultra PoE Ports: 24
• Standards: 802.3bt (Type 3)
• Total PoE Budget: 600 Watts
• Max. Power Consumption: AC: 723W/2466.98BTU, DC: 36.6W/124.88BTU
• Throughput: 95.23Mpps/64Bytes
• Operating Temperature: 0 to 50°C
• TAA Compliant
