Planet - GS-5220-8P2T2X - L2+ 8-Port 10/100/1000T 802.3at PoE + 2-Port 1G/10G SFP+ Managed Switch
Part number:
GS-5220-8P2T2X
Price:

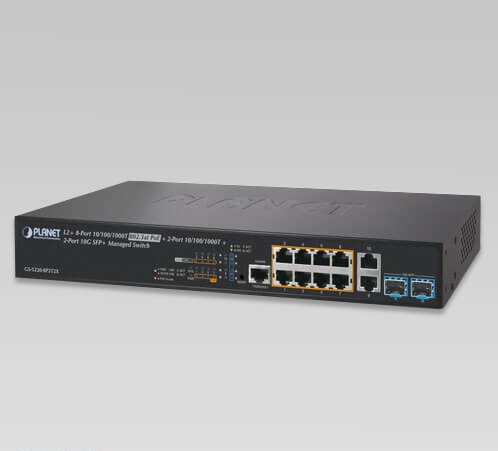

The GS-5220-8P2T2X is a Layer 2+ Managed Gigabit Switch provides 8 10/100/1000BASE-T ports featuring 36-watt 802.3at PoE+, 2 additional Gigabit copper ports and another 2 extra 1/10 Gigabit BASE-X SFP fiber slots.
Features:
- Ports: 10 10/100/1000TX + 2 10G X SFP
- Type: Managed
- PoE Ports: 8
- Standards:802.3at/af
- Total PoE Budget: 240W (@25°C), 200W (@50°C)
- Max. Power Consumption: 320 W/1091.9BTU
- Throughput: 44.642Mpps@64Bytes
- Operating Temperature: 0 to 50°C
- TAA Compliant
| Hardware Specifications | |
| Copper Ports | 10 x 10/100/1000BASE-T RJ45 Auto-MDI/MDI-X interface with Port-1 to Port-10 |
| SFP/mini-GBIC Slots | 2 x 1/10G BASE-X SFP interfaces with Port-11 to Port-12 |
| PoE Injector Port | 8 ports with 802.3at/af PoE injector function with Port-1 to Port-8 |
| Console | 1 x RJ45 serial port (115200 , 8, N, 1) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 60Gbps/non-blocking |
| Throughput | 44.642Mpps@ 64Bytes packet |
| Address Table | 16K entries, automatic source address learning and aging |
| Shared Data Buffer | 16Mbits |
| Flow Control | IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 9KB |
| Reset Button | < 5 sec: System reboot > 5 sec: Factory default |
| LED | System: Fan Alert (Green), SYS (Green), PWR (Green) 10/100/1000BASE-T RJ45 Interfaces (Port 1 to Port 10): 1000Mbps LNK/ACT (Green) 10/100Mbps LNK/ACT (Orange) PoE-in-Use (Orange)(Port 1 to Port 8) 1/10G Mbps SFP Interfaces (Port 11 to Port 12): 1G LNK/ACT (Green) 10G Mbps (Orange) |

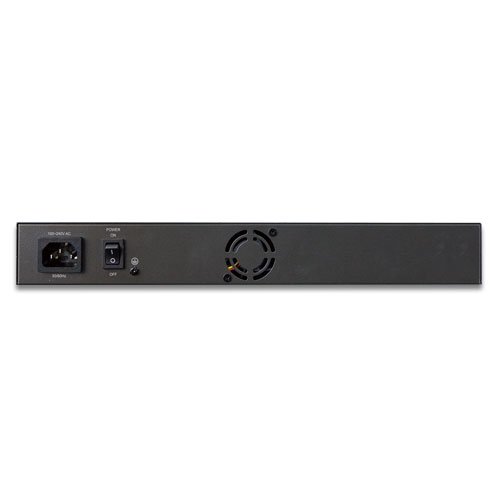

| Power Requirements | 100~240V AC, 50/60Hz |
| Power Consumption (Full Loading) | 320 watts/1091.9 BTU (max.) |
| ESD Protection | 6KV DC |
| Dimensions (W x D x H) | 330 x 200 x 43.5 mm, 1U height |
| Weight | 2kg |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at PoE Plus, PSE |
| PoE Power Supply Type | End-span |
| PoE Power Output | Per port 54V DC, max. 36 watts |
| Power Pin Assignment | 1/2(+), 3/6(-) |
| PoE Power Budget | 240 watts (max.) @ 25 degrees C 200 watts (max.) @ 50 degrees C |
| PoE Ability | PD @ 7 wattsL: 8 units PD @ 15.4 watts: 8 units PD @ 30.8 watts: 8 units |
| Layer2 Management Functions | |
| Basic Management Interfaces | Console , Web browser, SNMP v1, v2c |
| Secure Management Interfaces | SSH, SSL, SNMP v3 |
| ONVIF | ONVIF device discovery ONVIF device monitoring Floor Map |
| Port Configuration | Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow Control disable/enable |
| Port Status | Display each ports speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring | TX/RX/Both Many-to-1 monitor |
| VLAN | 802.1Q tagged based VLAN, up to 255 VLAN groups Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) Up to 255 VLAN groups, out of 4094 VLAN IDs |
| Link Aggregation | IEEE 802.3ad LACP/Static Trunk Supports 6 trunk groups with 4 ports per trunk |
| QoS | Traffic classification based, strict priority and WRR 8-level priority for switching – Port number – 802.1p priority – 802.1Q VLAN tag – DSCP/TOS field in IP packet |
| IGMP Snooping | IGMP (v1/v2/v3) Snooping, up to 255 multicast groups IGMP Querier mode support |
| MLD Snooping | MLD (v1/v2) Snooping, up to 255 multicast groups MLD Querier mode support |
| Access Control List | IP-based ACL/MAC-based ACL Up to 256 entries |
| Bandwidth Control | Per port bandwidth control Ingress: 10Kbps~13000Mbps Egress: 10Kbps~13000Mbps |
| SNMP MIBs | RFC 1213 MIB-II RFC 2863 IF-MIB RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2737 Entity MIB RFC 2819 RMON MIB (Groups 1, 2, 3 and 9) RFC 2618 RADIUS Client MIB RFC 3411 SNMP-Frameworks-MIB IEEE 802.1X PAE LLDP MAU-MIB Power over Ethernet MIB |
| Layer 3 Functions | |
| IP Interfaces | Max. 128 VLAN interfaces |
| Routing Table | Max. 128 routing entries |
| Routing Protocols | IPv4 hardware static routing IPv6 hardware static routing |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z 1000BASE-SX/LX IEEE 802.3ab 1000BASE-T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 |
| Environments | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
