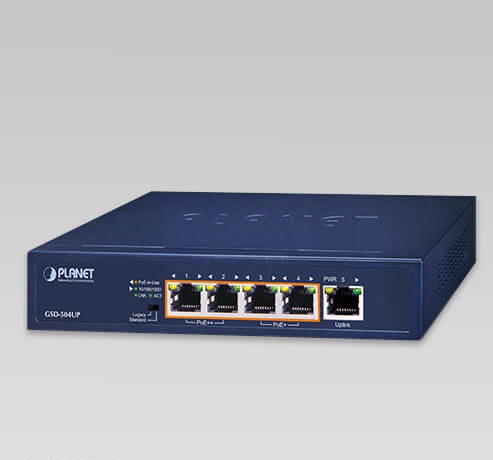

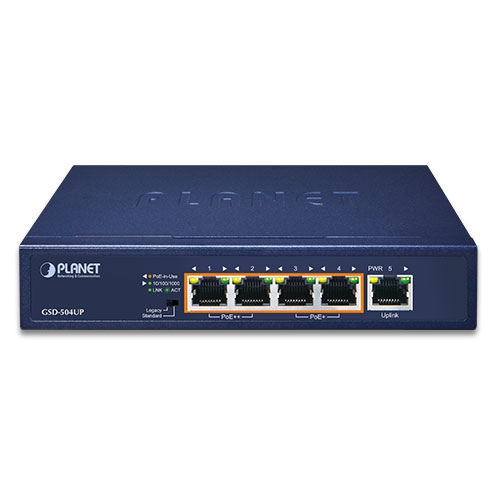

The GSD-504UP is the smallest unmanaged Gigabit PoE switch equipped with two 802.3bt PoE++ ports, two 802.3at PoE+ ports and one uplink port.
- Ports: 5 10/100/1000TX
- Type: Unmanaged
- PoE Ports: 4
- Standards: 802.3bt, 802.3af/at
- Tota PoE Budget: 120W
- Max. Power Consumption 136W/ 464.05BTU
- Throughput: 7.44Mpps@64Bytes
- Operating Temperature: 0 to 50°C
- TAA Compliant
Gigabit PoE Switch
The Smallest 802.3bt PoE++ Switch
PLANET GSD-504UP is the smallest unmanaged Gigabit PoE switch equipped with two 802.3bt PoE++ ports, two 802.3at PoE+ ports and one uplink port. With a total PoE power budget of 120 watts and non-blocking data switching performance, the GSD-504UP can fulfill the demand of sufficient PoE power for different applications.
Plug and Play High Power Sourcing Solution
Complying with the IEEE 802.3bt Power over Ethernet Plus Plus technology, the GSD-504UP provides up to 90 watts of PoE output power, tripling that of the earlier 802.3at plus. With the Legacy function enabled via the DIP switch, it can be backward compatible with 802.3af/at PoE standards to allow users to flexibly deploy standard and high powered devices simultaneously with no need of software configuration. With data and Power over Ethernet from one unit, the GSD-504UP can reduce cable deployment and eliminate the need for dedicated electrical outlets on the wall, ceiling or any unreachable place.
Environment-friendly, Fanless Design for Silent Operation
The GSD-504UP comes with a desktop-sized, compact metal housing, making the placement of the unit convenient. It features a ventilated construction in which a cooling fan is not necessary, thereby making its operation noiseless. Moreover, the GSD-504UP is able to operate reliably and stably in any environment without affecting its performance. The deployment of PoE PDs with constant power feeding can be easily and quickly done.
Robust Protection
The GSD-504UP protects against the ESD 6kV surge to improve product stability and also protects users’ networks from devastating ESD attacks, making sure the flow of operation does not fluctuate.
Ideal Solution for SOHO to Have IP Surveillance Secure
As IP surveillance is in great demand, the GSD-504UP PoE++ Switch is also best used as a Surveillance Switch to supply PoE power to PoE IP cameras without requiring an extra cabling or electrical outlet, making the deployment of cameras quick and convenient. The GSD-504UP supports two 802.3bt PoE ++ ports and two 802.3at PoE+ ports along with four 10/100/1000BASE-T ports featuring up to 90 or 30 watts, and one extra Gigabit Ethernet TP interface supporting high-speed transmission of surveillance images and videos.
| Hardware Specifications | |
|---|---|
| Network Connector | 5 10/100/1000BASE-T RJ45 auto MDI/MDIX ports |
| PoE Inject Port | 2 ports with 802.3bt PoE++ injector function (Ports 1 to 2) 2 ports with 802.3af/at PoE+ injector function (Ports 3 to 4) |
| LED Indicators | System: PWR (Orange) Per PoE port: PoE (Orange, Ports 1 to 4) Ethernet port: LNK (Green) |
| Thermal Fan | Fanless design |
| Switch Architecture | Store-and-Forward |
| MAC Address Table | 2K MAC address table with auto learning function |
| Switch Fabric | 10Gbps |
| Switch Throughput | 7.44Mpps @64 bytes |
| Jumbo Packet | 9K bytes |
| Flow Control | Back pressure for half duplex. IEEE 802.3x pause frame for full duplex |

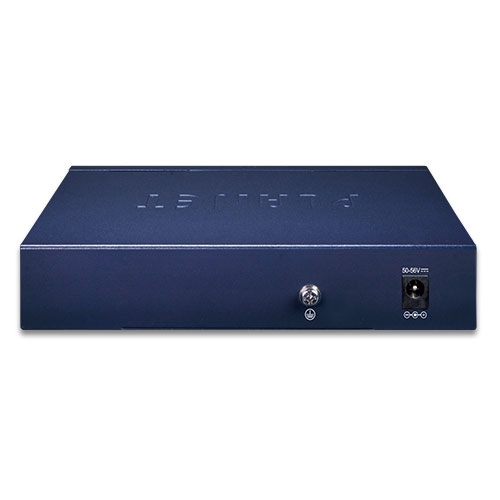

| Power Requirements | 55V DC, 2.8A |
| Surge Protection | Contact: 4KV; Air: 6KV |
| ESD Protection | Contact 4KV; air 6KV |
| Power Consumption | Max. 136 watts, 464.05 BTU |
| Dimensions (W x D x H) | 168 x 93 x 32 mm |
| Weight | 414g |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE IEEE 802.3bt Power over Ethernet Plus Plus/PSE |
| PoE Power Supply Type | Ports 1 to 2: End-span + Mid-span; Ports 3 to 4: End-span |
| Power Pin Assignment | Port 1-2: 4 pairs 1/2 (-), 3/6 (+) and 4/5 (+), 7/8 (-) Port 3-4: 2 pairs 1/2 (-), 3/6 (+) |
| PoE Power Output | Port 1-2: 90W max.; Port 3-4: 30W max. |
| Total PoE Power Budget | 120 watts |
| Standard Conformance | |
| EMI Safety | FCC Part 15 Class A, CE |
| Standard Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3ab 1000BASE-T Gigabit 1000BASE-T IEEE 802.3x Flow Control and Back Pressure IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus |
| Environment | |
| Operating | Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage | Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
