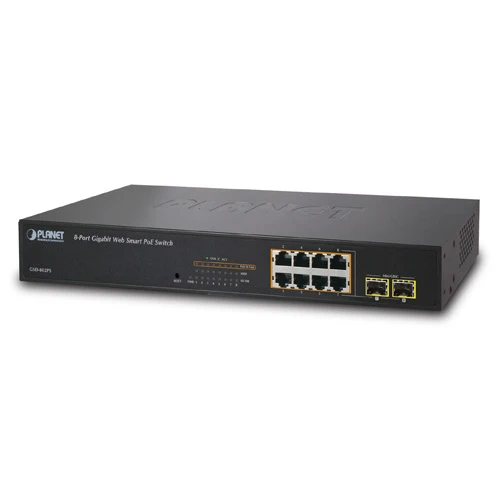

Planet - GSD-802PS - 8-Port Gigabit Web Smart PoE Switch
Part number:
GSD-802PS
Price:
8-Port Gigabit Web Smart PoE Switch
Features:
Physical Port GSD-800S
- 8-Port 10/100/1000Base-T RJ-45 Copper ports.
GSD-802S
- 8-Port 10/100/1000Base-T RJ-45 Copper with 2 Shared SFP / mini-GBIC slots
GSD-802PS
- 8-Port 10/100/1000Base-T RJ-45 Copper with 2 Shared SFP / mini-GBIC slots
Generic Features
- Comply with IEEE 3, 10Base-T, IEEE 802.3u, 100Base-TX, IEEE 802.3ab,1000Base-T, IEEE
802.3z,1000Base-SX/LX, Ethernet standard
- Auto-MDI/MDI-X detection on each RJ-45 port
- Prevents packet loss with back pressure (half-duplex) and 3x PAUSE frame flow control (Full-duplex)
- 8K MAC address table, automatic source address learning and ageing
- 16Gbps switch fabric, non-blocking switch architecture
- 9K Jumbo Frame support at all speed (10/100/1000 Mbps)
Layer-2 Switching
- Support port-based and 1q VLAN function, up to 64 VLAN groups
- 1w Rapid-Spanning Tree protocol support
- Link Aggregation support static mode and LACP (802.3ad) - up to 4 Trunk groups, each trunk for up to maximum 8 ports
- IGMP Snooping – multicast filtering
- Rate Limit bandwidth control at both Inbound and Outbound in steps of 128kbps
Quality of Service
- 4 QoS classes per port
- Traffic class assignment based on 1p tag, or DSCP field
- Multicast and Broadcast Storm Control as well as Flooding Control
Security
- Port Mirroring support for dedicated port monitoring
- 1X Port-Base access control, RADIUS ServerAuthentication
- Static MAC Address assign destination MAC address at specifies port
Power over Ethernet (GSD-802PS)
- Per Port PoE Full power support
- Powered Device Auto detection
- Power Interface Protection
- LED easy PoE status Monitoring
- Power feeding on/off and priority configuration
Management
- Remote Web management interface
- Firmware upgrade through web interface
- Cable Diagnostics technology
- Support SNMPv1 with RFC-1213/1573-Interface group, Ethernet MIB
- SNMP Trap
| Model | GSD-800S | GSD-802S | GSD-802PS |
| Hardware Specification | |||
| Copper Ports | 8-Port 10/100/1000Base-T Auto MDI/MDI-X | ||
| SFP/mini-GBIC slot | - | 2 | 2 |
| PoE Injector Ports | - | - | 8 |
| Switch architecture | Store-and-Forward | ||
| Switch Fabric | 16Gbps | ||
| Switch throughput | 11.9Mpps | ||
| Address Table | 8K entries | ||
| Share data Buffer | 176KB On-chip frame buffer | ||
| Flow Control | Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex | ||
Dimensions (mm) ( W x D x H ) | 217 x 135 x 43.5, 1U height | 330 x 155 x 43.5, 1U height | |
| Weight | 1.1kg | 1.2kg | 1.8 kg |
| Power Requirement | 100-240V AC, 50-60 Hz | ||
| Power Consumption | 13.2 Watts maximum, 41.4 BTU/hr | 13.2 Watts maximum, 41.4 BTU/hr | 130 Watts maximum, 410 BTU/hr |
| PoE Power Output | - | - | 48V DC, 15.4W, 350mA (Ping 1, 2, 3, 6) |
| Layer 2 Functions | |||
| Management Interface | Web Browser, SNMPv1, v2c monitor and SNMP Trap | ||
| Port configuration | - Port disable/enable. Auto-negotiation 10/100/1000Mbps full and half duplex mode selection - Flow Control disable / enable - Bandwidth control on each port | ||
| VLAN | Port-Based / 802.1Q Tagged Based VLAN, Up to 64 VLAN groups | ||
| Link Aggregation | Supports 4 groups of 8-Port trunk, IEEE 802.3ad LACP | ||
| QoS | 4 Priority Queue and traffic classification based on 802.1p priority, DSCP field in IP Packet | ||
| IGMP Snooping | IGMP (v1/v2) Snooping, up to 64 multicast Groups | ||
| Port Mirror | One to many and the monitor mode is RX | ||
| SNMP MIBs | RFC-1213 MIB-2 | ||
RFC-1573-Interface MIB RFC-2819 RMON MIB (Group 1) | ||
| Standards Conformance | ||
| EMI Safety | FCC Class A, CE | |
| IEEE 802.3 | Ethernet | |
| IEEE 802.3u | Fast Ethernet | |
| IEEE 802.3ab | Gigabit Ethernet | |
| IEEE 802.3z | Gigabit Ethernet, 1000Base-SX/LX | |
| Network Standards | IEEE 802.1q IEEE 802.1w | Tagged VLAN Rapid Spanning Tree |
| IEEE 802.1X | Port-Based Authentication | |
| IEEE 802.3ad | Link Aggregation Control Protocol | |
| IEEE 802.3x | Full-Duplex flow control | |
| IEEE 802.3af | Power Over Ethernet ( GSD-802PS only) | |
| Operating Temperature | 0~50ºC | |
| Storage Temperature | -40~70ºC | |
| Operating Humidity | 5% to 90% , relative humidity, non-condensing | |
| Storage Humidity | 5% to 90% , relative humidity, non-condensing | |
| Regulation Compliance | FCC Part 15 Class A, CE | |
