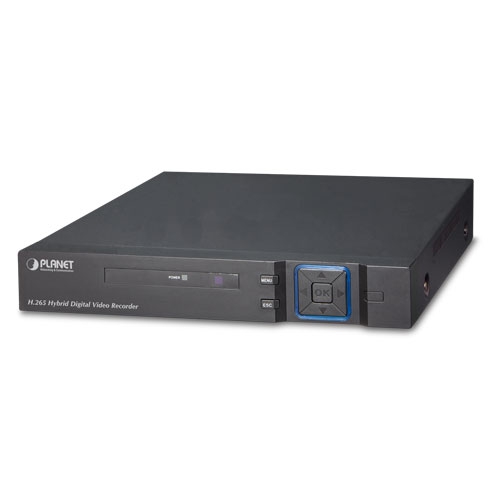

Planet - HDVR-435 - H.265 4-ch 5-in-1 Hybrid Digital Video Recorder
- Efficient Solution for All Video Formats
- Bandwidth Saving
- Hybrid Integration
- High Resolution Local Display
- Real-time Remote Monitoring
- Central Management System (CMS)
- Advanced Event Management
- Perfect for Indoor Surveillance Applications
Part number:
HDVR-435
Price:
Hardware
- Embedded, highly-reliable standalone HDVR
- Supports 4-ch BNC connectors
- Supports VGA/HDMI dual local display
- Supports 3.5" SATA x 1 HDD
- Supports RS485 for PTZ control
Video and Audio
- Supports H.265 and H.264 compressions
- Video resolution up to 1080p (analog mode) and 1080p (IP mode)
- Supports hybrid mode for combination of IP, traditional analog, TVI, CVI and AHD cameras
- 2-way audio support with enhanced audio quality
Video Recording / Backup
- Simultaneous recording and live video streams
- Manual or scheduled recording of 4 cameras simultaneously
- Video recycling function 24/7 for easy inquiry of suspicious events
- Exports recorded video file in H.26X or AVI format to USB device
- Instant Event Notification
Network Service
- Easy access with PLANET Dynamic DNS and built-in NTP Server
- Supports PPPoE, DHCP and manual settings
- Supports P2P cloud function for remote viewing
- Supports dropbox for recording channels
Easy Installation and Management
- ONVIF compliant for interoperability
- Supports multiple languages
- Automatically discovered by management software
- Web-based and management utility for easy configuration
- Up to 64 channels with the central management software
- Supports two USB2.0 ports for mouse control and backup
- Supports mobile phone remote viewer, Web UI and CMS
| Hardware | |
|---|---|
| Ethernet | 1 x RJ45, 10/100BASE-TX |
| BNC Interface | 4 |
| USB Interface | 2 x USB 2.0 for backup device and mouse |
| Video Interface | VGA/HDMI/video out interface |
| Audio Interface | 4 x audio-in, 1 x audio-out |
| Storage Device | 1 x 3.5” SATA hard disk connector (max. 6TB) |
| LED | Power |
| Button | Menu, ESC, Direction and Enter |
| Power Requirements | 12V DC, 2A |
| Consumption | 15W (without HDD) |
| Weight | 792 g |
| Dimensions (W x D x H) | 253 x 242 x 40 mm |
| Camera | |
| Max. Channels | 4-channel cameras |
| Additional Camera | Manual/Smart Camera Search |
| Video | |
| Video Signal | AHD/TVI/CVI/CVBS/IP |
| Video System | PAL (625 lines, 50fps); NTSC (525 lines, 60fps) |
| Compression | H.265/H.264 |
| Resolution | IP camera: 1080p/960p/720p/D1 Analog camera: AHD-H (1080P)/AHD-N (1080N)/AHD-M (720P)/D1 |
| Encode Capacity | 4 x 1080p@15fps |
| Decode Capacity | 4 x 1080p@15fps |
| Hybrid mode | Analog cameras: 4-ch 1080p Analog cameras & IP cameras: 2-ch 1080p & 2-ch 1080p IP cameras: 4-ch 1080p |
| Motion Detection | Zones: 192 (16 x 12) detection zones Sensitivity: multi-level sensitivity (only local channels) |
| Cloud | P2P |
| Audio | |
| Audio Type | 2-way |
| Audio Format | G.711A |
| Live view | |
| Display Division | 1, 4 |
| Snapshot | Video snapshot in JPEG format |
| Playback | |
| Record | Manual, Alarm, Motion Detection, Schedule |
| Local Playback | 2-ch simultaneous playback; Supports up to 4-channel playback (local input mode) |
| Play Method | Play, Pause, Stop, Slow, Fast, Prev. Frame, Next Frame Search by time, calendar, event, channel |
| Download | Backup file to specific local HDD partition |
| Monitor | |
| Display Quality | 1920 x 1080, 1440 x 900, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Network and Configuration | |
| Network Service | TCP, UDP, HTTP, DHCP, DNS, DDNS, RTSP, NTP, UPnP, FTP, SMTP |
| Security | Password protection |
| Triggers and Event | |
| Event Type | System Events
Camera Events
|
| Event Action |
|
| Management | |
| Remote Session | 2 users are recommended |
| Privileges | Live View, Playback, System Configurations, Camera Configurations, Recording Configuration, Event Configuration, Maintenance |
| User Interface |
|
| Log Type | All, System, Config, Storage, Alarm Event, Week Day, Account, Playback |
| Software Utility | Search utility, CMS, App |
| Environment | |
| Operating Temperature | -10~60 degrees C |
| Storage Temperature | -10~60 degrees C |
| Humidity | 10~90% (non-condensing) |
