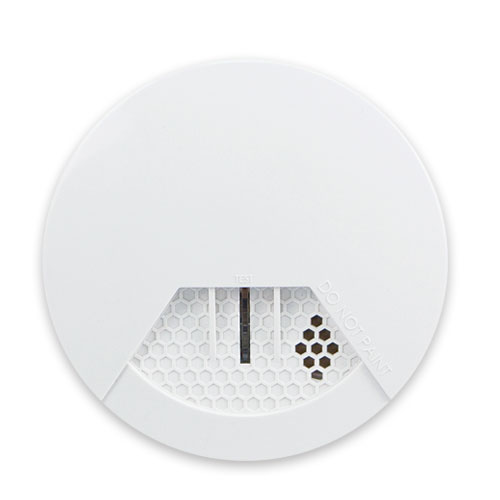

Z-Wave Ceiling-mount Smoke Detector
Part number:
HZS-200A
Price:
Smoke Detector (FCC-908.42MHz). Z-Wave Plus™, Photoelectron Smoke Detect, Smoke Sensitivity: 0.5%/ft ~ 4.0%/ft, Low battery detection
Features:
- Z-Wave 500 series module inside
- Ceiling and wall mount mechanism
- Photoelectric sensor is particularly effective in detecting smoldering fires
- Built-in 85dB sounder and flashing red LED indicate presence of smoke
- Tamperproof protection
- Low-power consumption for long battery life
- Manual test button allows you to easily ensure functioning properly
- Mute mode allows you to silence the detector when there is a false alarm
- Battery capacity detection (with the HAC-1000 Control Gateway)
- Immediately send alert notifications to smart device (with the Cloud Home App)
| Hardware and Network | |
|---|---|
| Z-Wave Frequency | America: 908.42MHz Europe: 868.42MHz |
| Sensor | Photoelectric |
| Buzzing Sound Level | 85dB, 3m distance |
| LED Indicators | Red: Standby mode, low battery warning Yellow: Tamper switch alert, low battery warning, error detection |
| Operating Range | Up to 30 meters in open space |
| Installation | Wall mount, 4 to 6 inches from the ceiling suggested Ceiling mount Indoor use only |
| General | |
| Power Requirements | CR123A 3V |
| Operating Temperature | 0 ~ 49 degrees C |
| Operating Humidity | 10 ~ 95% (non-condensing) |
| Weight | 144g |
| Dimensions (Φ x L) | 120 x 48.7 mm |
| Emission | CE, FCC |
