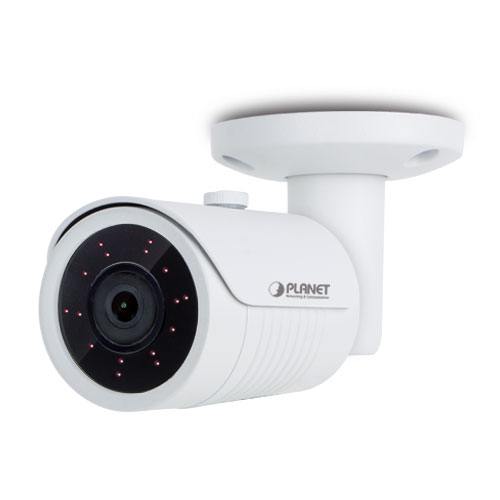

Planet - ICA-A3280 - H.265 1080p Smart IR Bullet IP Camera with Artificial Intelligence
- Built-in Unique Brand-new Artificial Intelligence Technology
- High Efficiency Video Compression
- Exceptional Image Quality
- Advanced Media Management
- Flexible Installation and Power Functionality
- Scheduled Power Rebooting
- Water-resistant and Dust-proof Protection
- Security IP Surveillance Deployment with Artificial Intelligence
- High Scalability for Various Industrial IP Surveillance Solutions
Part number:
ICA-A3280
Price:
Camera

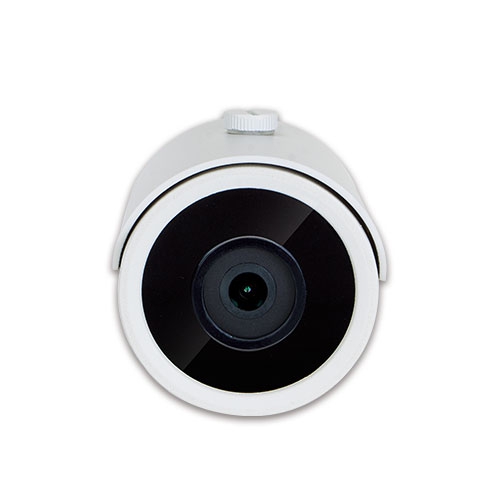

- 1/2.8" 2 megapixel Sony STARVIS back-illuminated CMOS sensor
- 3.6mm fixed with 3MP lens
- 0.005 lux minimum illumination at F1.2
- Built-in smart IR illuminators, effective up to 25 meters
- Removable IR-cut filter for Day & Night function
Video and Audio
- Simultaneous H.264(+)/H.265(+)/JPEG/AVI/MJPEG triple-stream video encoding
- Simultaneous multi-stream support
- H.264/H.265/MJPEG baseline profile, main profile or basic or high profile options
- Max. resolution of 2304 x 1296 at 20fps
- WDR (50dB) enhancement function strengthens visibility under extremely bright or dark environments
- 3DNR to improve picture quality at low lux
- Two-way audio support
- Image adjustment options
- Image Adjustment
- Exposure Settings
- Backlight Settings
- Day and night switch
- White Balance
- Video Adjustment
- Image Enhancement
- Defog Model
- OSD Settings
- Motion detection
- 3 configurable regions of privacy mask to protect personal privacy
- Video tampering
- Alarm Input
- Exception
- Network Disconnected
- IP address Conflicted
- ROI (Region of Interest)
- Artificial Intelligence options
- Face Recognition
- Intrusion Detection
- Line Cross Detection
- Loitering Detection
- People Gathering Detection
Power over Ethernet
- Compatible with IEEE 802.3af Power over Ethernet PD for flexible deployment
Network Configuration and Management
- IPv4 DHCP Client and IPv4 Static IP Address management
- PLANET DDNS and Easy DDNS, FTP, SMTP, P2P, Cloud, RTSP Encryption, PTZ and IPEYE available options
- ONVIF compliant for interoperability
- SNTP Network Time Protocol/synchronize with computing time
- Schedule power rebooting
- System log
- User management options for various authorities:
- Admin
- Operator
- Guest
- System maintenance
- Firmware upload/download via HTTP
- Easy configuration and management via Windows-based software or web interface
- PLANET Search Tools utility and Professional Video/Central Management Software
Case and Installation
- IP67-rated metal housing with cable management bracket for rigorous environment
- Waterproof and dustproof designs
- -20 to 60 degrees C operating temperature
- Micro SD/SDHC card local video recording supported
- Digital Input / Output for integration with sensors and alarms
- RS485 for PTZ (Pelco-D and Pelco-P)
- Plug and Play installation
| Camera | |||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Image Sensor | 1/2.8" Sony STARVIS back-illuminated CMOS sensor | ||||||||||
| Lens | Focus Length: 3.6mm Focus Control: Fixed Lens Type: Fixed Pixels: 3MP Angle of view: - Horizontal: 80 degrees - Vertical: 62 degrees |
||||||||||
| Min. Illumination | 0.005 lux (color) @ F1.2 2lux (B/W) @ IR on |
||||||||||
| IR Illuminations | Built-in smart IR illuminators, effective up to 25 meters *The IR distance is based on the environment |
||||||||||
| Effective Pixels (H x V) | 1945 x 1097 | ||||||||||
| Power over Ethernet | |||||||||||
| PoE Standard | IEEE 802.3af PoE PD | ||||||||||
| Video Compression | |||||||||||
| Video Resolution |
|
||||||||||
| Frame Rate | Up to 15~25 fps for all resolutions | ||||||||||
| Bitrate | 32~16384kbps | ||||||||||
| Shutter Time | Auto, PAL/NTSC (1/25 sec. ~ 1/10000 sec.) | ||||||||||
| Image Setting | Image Adjustment Exposure Settings Backlight Settings Day and night switch White Balance Video Adjustment Image Enhancement Defog Model OSD Settings (Text, time and date overlay and overlay image on video) Motion detection, video tampering, alarm Input 3 configurable regions of privacy mask to protect personal privacy |
||||||||||
| Streaming | Streaming over UDP, TCP, HTTP, or HTTPS Controllable frame rate MJPEG streaming over HTTP (server push) Constant and variable bit rate ROI (Region of Interest) |
||||||||||
| Artificial Intelligence | |||||||||||
| Recognition | Face Detection and Recognition Number of faces per frame: 32 Capture rate: >99.5% Repeat capture rate: <15% False capture rate: <0.5% Number of supported faces: 10,000 Minimum detection of face pixels: 25 x 25 Maximum detection of face pixels: 300 x 300 |
||||||||||
| Intelligent Analysis | Face Recognition Intrusion Detection Line Cross Detection Loitering Detection People Gathering Detection |
||||||||||
| Audio | |||||||||||
| Audio Streaming | Two-way audio | ||||||||||
| Audio Compression | G.711A/G.711U | ||||||||||
| Audio Input | External microphone input | ||||||||||
| Audio Output | External speaker output | ||||||||||
| Networking & Configuration | |||||||||||
| Standards Compliance | IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX IEEE 802.3af Power over Ethernet |
||||||||||
| Protocol | IPv4 DHCP Client and IPv4 Static IP Address management PLANET DDNS and Easy DDNS, FTP, SMTP, P2P, Cloud, RTSP Encryption, PTZ and IPEYE |
||||||||||
| Security | User Management options for various authority Admin / Operator / Guest |
||||||||||
| Users | On-line monitoring of 16 clients at the same time | ||||||||||
| Web Brower | IE8~11, Google Chrome, Firefox , Mac Safari | ||||||||||
| App | YES (Android, IOS with P2P QR code) | ||||||||||
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Dutch, Czech, Vietnamese | ||||||||||
| System Integration | |||||||||||
| Application Programming Interface | ONVIF compliant | ||||||||||
| Alarm Triggering | Motion Detection / Video Tampering / Alarm Input Face Recognition / Intrusion Detection / Line Cross Detection / Loitering Detection / People Gathering Detection |
||||||||||
| Alarm Events | SMTP, FTP, Cloud(Google, Dropbox), SD card | ||||||||||
| Hardware Specifications | |||||||||||
| Power Requirements | 12V DC, 0.7A IEEE 802.3af |
||||||||||
| Power Consumption | 8W (IR on) | ||||||||||
| Dimensions (W x D x H) | 157 x 66 x 70 mm | ||||||||||
| Weight | 650g | ||||||||||
| SD Card Slot | Micro SD (512GB maximum) | ||||||||||
| LED | 42μ x 2pcs | ||||||||||

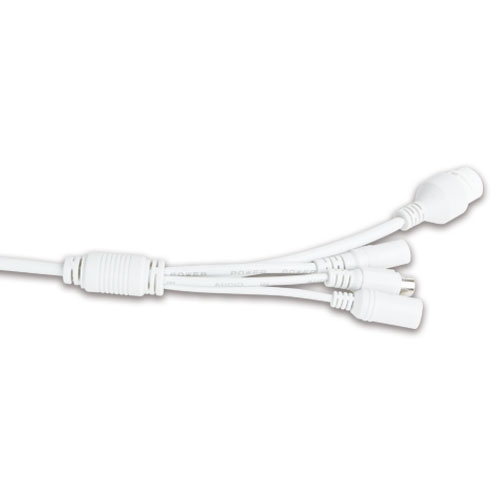

| Connector | 10/100Mbps Ethernet, waterproof and dustproof RJ45 connector DC power jack RCA audio in /out (white) Alarm in/out (1~4) |
||||||||||
| Enclosure | IP67 metal case | ||||||||||
| Standards Conformance | |||||||||||
| Regulatory Compliance | FCC Part 15 Class B, CE | ||||||||||
| Environment | |||||||||||
| Operating | Temperature: -20 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
||||||||||
| Storage | Temperature: -20 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
||||||||||
