Planet - MGB-LA40 - Mini GBIC WDM TX1310 Module - 40KM, DDM Supported

Product Overview

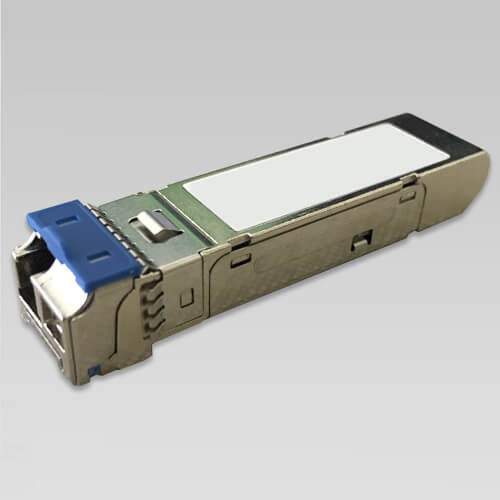

The Planet MGB-LA40 is a 1000BASE-BX SFP fiber transceiver operating over single-mode fiber with WDM/BiDi LC connector, TX:1310nm / RX:1550nm wavelengths, and a maximum distance of 40km. Hot-pluggable and MSA compliant for use with Planet switches, media converters, and third-party SFP equipment.

Key Configuration

• PHY Type: IEEE 802.3ah 1000BASE-BX
• Fiber Type: Single Mode
• Connector: WDM/BiDi LC
• Wavelength: TX: 1310nm, RX: 1550nm
• Maximum Distance: 40km
• Operating Temperature: 0 ~ 60°C

Key Features

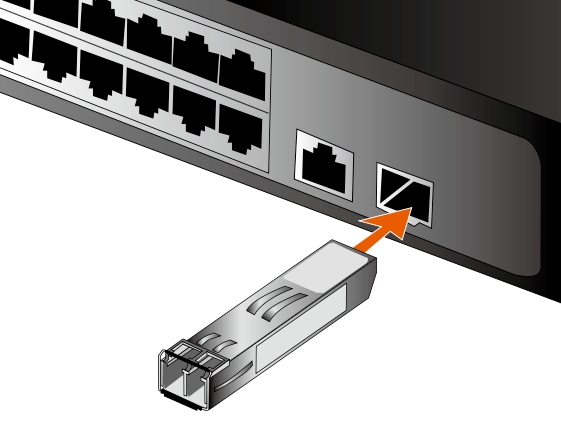

Bi-directional WDM technology transmits and receives on different wavelengths over a single fiber strand. Hot-pluggable SFP form factor installs without interrupting host equipment. Designed for PLANET SFP media converters, switches, and third-party SFP-compatible equipment. Single-mode fiber operation for long-distance links up to 40km. 1000Mbps Gigabit Ethernet data rate.
