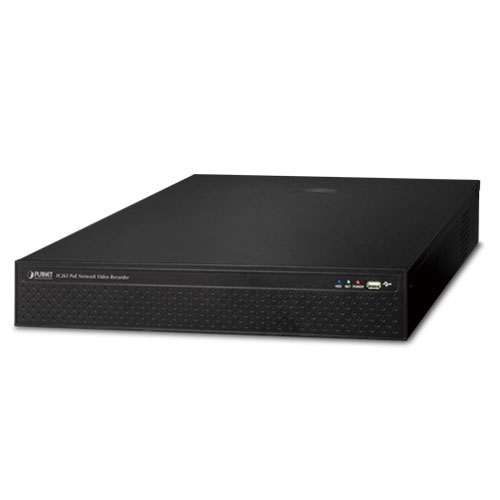

Planet - NVR-2516P - H.265 25-ch 4K Network Video Recorder with 16-Port PoE
- High Efficiency Surveillance Solution
- High-resolution Local Display
- Real-time, Remote Monitoring
- Remote Access via Mobile App, Web Browser or PVMS
- Wide Applications
- Perfectly-integrated NVR System and IP PoE Camera Solution
- Advanced Event Management
- Perfect for Indoor Surveillance Applications
Part number:
NVR-2516P
Price:

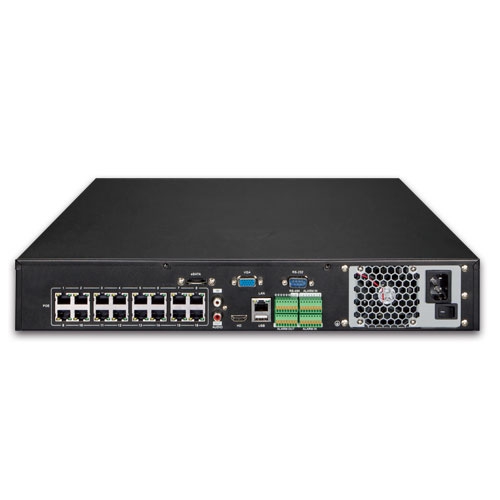

Hardware
- Linux-embedded, highly-reliable standalone NVR
- 16 Fast Ethernet ports with IEEE 802.3af/at PoE injector function
- 1 Gigabit Ethernet RJ45 port
- One 1080p VGA and 4K HDMI video interface for dual local display
- Four 3.5" SATA III HDDs, up to 32TB capacity
- One e-SATA interface for external storage
- Two USB 2.0 interfaces
- One RS485 interface
- One Audio In interface and one Audio Out interface
- Sixteen Alarm input interfaces and four Alarm output interfaces
Video and Audio
- Simultaneous recording and live streams
- 25-channel input of IP cameras
- Supports H.265/H.264/H.265+/H.264+ compression
- Video resolution up to 4K (3840 x 2160)
- Supports bandwidth up to 120Mbps
- Two-way audio support
- Image adjustment options:
- Image adjustment
- IR-cut filtering
- White balance
- Image enhancement
Video Recording and Backup
- Scheduled recording of 25 IP cameras simultaneously
- Simultaneous main/sub-stream support
- Supports operation simultaneously for Preview, Recording, Playback, Live and Backup
- Exports recorded video file in AVI format to USB device or local network storage
- Multiple event detections like motion detection, video loss and PLANET AI IP camera event management
PoE
- Complies with IEEE 802.3af/at Power over Ethernet Plus/mid-span PSE
- 16 Fast Ethernet ports with IEEE 802.3af/at PoE injector function
- Supports PoE Power up to 30.8 watts for each PoE port
- Total 200-watt PoE Budget
Network Service
- Easy access with PLANET Dynamic DNS
- SNTP Network Time Protocol/synchronize with computing time
- Supports PPPoE/DHCP/static network connection
- Supports low bit-rate connection for remote access
- Supports P2P Cloud (Google/Dropbox)
- TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P Network functions
Easy Installation and Management
- ONVIF compliant for interoperability
- Supports multiple languages
- PLANET Search Tools utility and PVMS ( Professional Video/Central Management Software) for easy configuration
- Up to 256 channels management through PVMS
- Easy configuration and management via Windows-based software or web interface
- System log
- User management options for various authorities:
- Admin
- Operator
- Guest
- Supports mobile phone remote app application
| Hardware | |
|---|---|
| Ethernet | 1 x 10/100/1000BASE-T MDI/MDI-X RJ45 port |
| PoE | 16 x 10/100BASE-TX MDI/MDI-X RJ45 ports |
| USB Interface | 2 x USB 2.0 |
| Video Interface | 1 x HDMI, 1 x VGA |
| Audio Interface | 1 x Input, 1 x Output |
| Alarm | 16 x Input, 4 x Output |
| Storage Device | 4 x Hard Disk Interface (3.5" SATA), up to 32TB capacity |
| External Storage Interface | 1 x e-SATA interface |
| RS485 | Yes |
| Camera | |
| Max. Channels | 25-channel IP cameras |
| Incoming Bandwidth | 120MB |
| Video | |
| Compression | H.264/H.265/H.264+/H.265+ |
| Resolution | 4K (3840×2160) 5MP (2592×1944) 4MP (2688×1520/2560×1440) 3MP (2048×1536) 1080P (1920×1080) 960P (1280x960) 720P (1280×720) D1 (720×576/720×480) |
| Recording Rate (PAL/NTSC) | 4K@12×25fp/30fps 5MP@20×25fp/30fps 4MP@25x25fp/30fps 3MP@25×25fp/30fps 1080P@25×25fp/30fps 960P@25×25fp/30fps 720P@25×25fp/30fps D1@25×25fp/30fps |
| Record Mode | Manual\Timer\Motion Detection\Smart Alarm |
| Audio | |
| Audio Type | 2-way audio |
| Input | 1-port RCA |
| Output | 1-port RCA (Linear, 1kΩ) |
| Audio Bit Rate | 64kbps |
| Audio Compression | G711u, G711a, ADPCM_DVI4 |
| Local Display | |
| HDMI | 4K (3840 × 2160)/30Hz 1920 × 1080/60Hz 1280 × 1024/60Hz 1280 × 720/60Hz 1024 × 768/60Hz |
| VGA | 1920 × 1080/60Hz 1280 × 1024/60Hz 1280 × 720/60Hz 1024 × 768/60Hz |
| Display Split | 25CHxD1/16CHxD1/9CHxD1/4CHxD1/1CHx1080P/1CHx3MP/1CHx4MP/1CHx5MP/1CHx4k/1CHx12MP |
| Digital Zoom | YES |
| OSD | Camera Title, Time, Recording, Motion Detection, Event Alarm |
| Alarm | |
| Sensor Input | 16 |
| Output | 4 |
| Motion Detection | 25 Channels, MD Zones: 396 (22 × 18) |
| Trigger Events | Recording, Email, FTP, Snapshot, Buzzer and Screen Tips, Alarm Output |
| Playback & Backup | |
| Local Sync Playback | 1CH 4K@30fps 1CH 5MP@30fps 2CH 4MP@30fps 2CH 3M@30fps 4CH 1080P@30fps 4CH 960P@30fps 4CH 720P@30fps |
| Decode Capability | 1CH 4K (3840×2160) @30fps |
| Remote Sync Playback | Yes |
| Search Mode | All, Channel, Manual, Time, Date, Motion Detection, and Event Alarm |
| Playback Functions | Play, Pause, Stop, Rewind, Fast Play, Slow Play, Full Screen, Frame Play ,Frame Rewind, Digital Zoom |
| Backup Mode | USB Device/Network |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus/PSE Backward compatible with IEEE 802.3af Power over Ethernet |
| PoE Power Supply Type | Mid-span 4/5(+),7/8(-) |
| PoE Power Budget | 200 watts |
| Number of PDs, 7 watts | 16 |
| Number of PDs, 15.4 watts | 12 |
| Number of PDs, 30 watts | 6 |
| Network and Configuration | |
| Network Functions | TCP/IP, HTTP, UPnP, DNS, NTP, SMTP, DHCP, FTP, DDNS, RTSP, RTCP, P2P |
| Cloud Support (P2P) | Cloud (Google, Dropbox) |
| Application Programming Interface | ONVIF compliant |
| Management | |
| Web Browser | IE8~11, Google Chrome, Firefox , Mac Safari |
| PVMS | Support Windows 7/ Windows 8/Windows 10/MAC OS |
| App | Yes (Android, IOS with P2P QR code) |
| Language | Chinese Simplified, Chinese Traditional, English, Bulgarian, Polish, Arabic, German, Russian, French, Korean, Portuguese, Japanese, Turkish, Spanish, Hebrew, Italian, Dutch, Czech, Vietnamese |
| Environment | |
| Power | AC 100-240V/5.5A |
| Operating Temperature | -10~55 degrees C /10~90% |
| Humidity | 10~85% RH |
| Weight | 7.5kg (without HDD) |
| Dimensions (W x D x H) | 440 x 356 x 72 mm |
