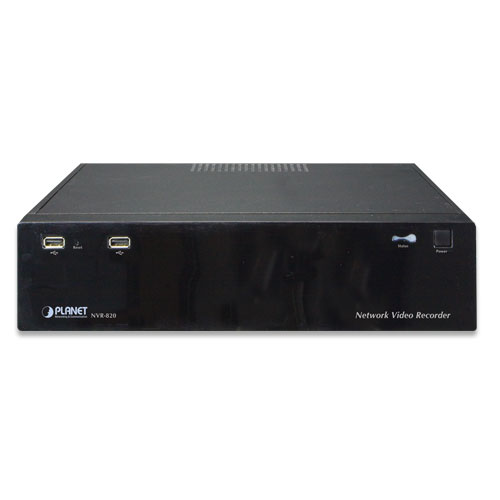

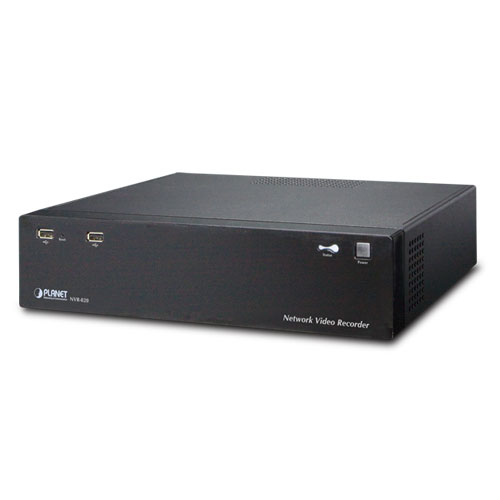

Planet - NVR-820 - 8-CH Network Video Recorder with HDMI
- Efficient SMB Surveillance Solution
- High Resolution Local Display
- Performing Real-time Remote Monitoring
- Managing and Presenting Clear and Concise Video
- Advanced Event Management
- Perfect for Indoor Surveillance Applications
Part number:
NVR-820
Price:
Hardware
- Linux-embedded, highly-reliable standalone NVR
- Supports Gigabit Ethernet port
- Supports VGA/HDMI dual local display
- Supports 3.5" SATA II x 2 HDDs
Video/Audio
- Supports M-JPEG / MPEG-4 / H.264 compressions
- Auto configuration for PLANET IP cameras
- Video resolution up to 5 mega-pixel (2560 x 1920)
- Supports up to 120fps@1080p (H.264)
- 2-way audio support with enhanced audio quality
Video Recording/Backup
- Simultaneous recording and live video streams
- Manual or scheduled recording of 8 IP cameras simultaneously
- Video recycle function records events 24/7
- Exports recorded video files in AVI format to USB device or local storage
- Instant event notification
Network Service
- Easy access with PLANET Dynamic DNS and built-in NTP Server
- Supports DHCP Server/client (Auto detection)
Easy Installation & Management
- ONVIF compliant for interoperability
- Supports multiple languages
- Automatically discovered by management software
- E-map interface in web and utility configuration
- Web-based and management utility for easy configuration
- Up to 16 NVRs, max. 128 channels with the central management software
- Supports USB keyboard and mouse
- Supports mobile phone remote view

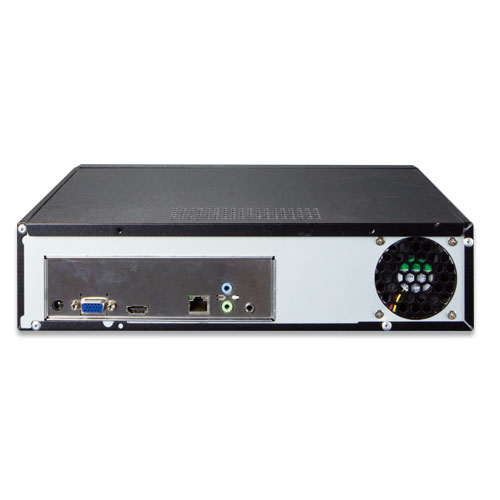

| Hardware | |
|---|---|
| Ethernet | 1 x RJ45, 10/100/1000BASE-T |
| USB Interface | 2 x USB 2.0 for backup device and firmware upgrade |
| Video Interface | VGA/HDMI video interface |
| Audio Interface | Mic-in, line-in and line-out |
| Storage Device | 2 x 3.5" SATA II hard disk connectors |
| LED | Power, Status |
| Button | Power, Reset |
| Camera | |
| Max. Channels | 8-channel IP cameras |
| Additional Camera | Manual / Smart Camera Search / Auto setup |
| Video | |
| Compression | H.264 / MPEG-4 / M-JPEG |
| Resolution | 5MP / 3MP / 1080p / 720p / FD1 / CIF / QCIF |
| Max. Live Video Frame Rate (Local Display) | 240fps@720p (8-ch) 120fps@1080p (4-ch) 80fps@3MP (2-ch) *Supports 5MP and Full HD 1080p@60fps |
| Max. Recording Frame Rate (Local Display) | 240fps@1080p (8-ch), 4Mbps per channel, total of 8 channels 120fps@3MP, 6Mbps per channel, total of 8 channels *Real performance may vary in different environments. |
| Audio | |
| Audio Type | 2-way |
| Audio Format | G.711, G.726 (Camera dependent) |
| Live view | |
| Display Mode | Live View / Playback / Full Screen / Sequence View / Saved views |
| Split Screen | 1/4/9 |
| Full Screen | 1/4/9 |
| Sequence Mode | Sequence all/manually selected cameras in 1/4 split view with configurable timer |
| Snapshot | Video snapshot in JPEG format |
| PTZ Support | Digital PTZ / Auto Pan / Preset Point / Sequence view |
| Playback | |
| Split Screen | 1/4 |
| Play Method | Play / Pause / Stop / Forward / Reverse/Speed Adjust/Frame by Frame Search by time or event only |
| Bookmark | Intuitive timeline interface with bookmark function for easy file export |
| Monitor | |
| Dual Monitor | Main UI + Full screen live view / sequence view |
| Monitor Resolutions | 1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 |
| Network and Configuration | |
| Network Service | TCP / HTTP / SMTP / DHCP / DNS / ARP / P2P / NTP / UPnP / FTP |
| Streaming Protocols | Depending on the supported cameras |
| Triggers and Event | |
| Event Type | System Events –
Camera Events –
|
| Event Action |
|
| Management | |
| Number of Groups | 7 (Administrator/Guest/User Define * 5) |
| Privileges | Live View / Playback / System Configurations / Camera Configurations / Recording Configuration / Event Configuration / Maintenance |
| User Interface |
|
| Log Type | Alert/Event/User Access |
| Software Utility | Search utility/media player for exporting recorded files |
| Environment | |
| Power | 19V DC, 4.74A |
| Consumption | 60W |
| Operating Temperature | 5~40 degrees C |
| Storage Temperature | -40~70 degrees C |
| Humidity | 10~90% (non-condensing) |
| Weight | 2.4kg |
| Dimensions (W x D x H) | 315 x 225 x 75 mm |
