Planet - POE-TESTER - IEEE 802.3af/at/bt Power over Ethernet Tester
Product Overview

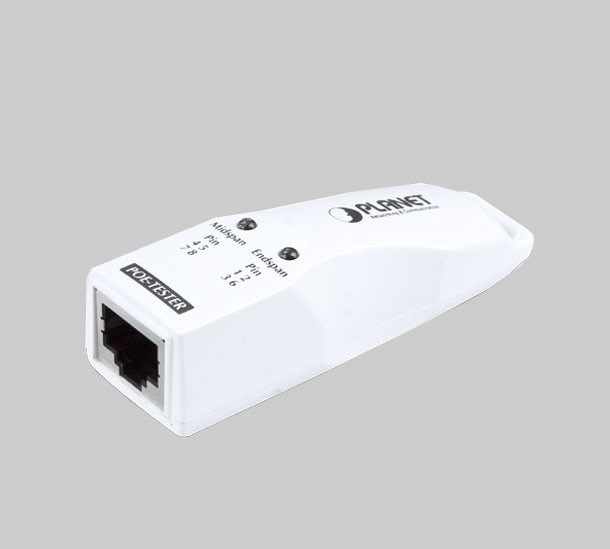

The Planet POE-TESTER+ is a compact, plug-and-play PoE diagnostic tester that quickly detects IEEE 802.3af/at/bt PoE voltage over UTP cables and determines PSE type — End-span (Mode A), Mid-span (Mode B), or 4-pair mode — via bi-color LED indicators. It supports 6 detection modes including 802.3bt PoE++ (Type 4), 802.3at PoE+, 802.3af PoE, and non-standard force mode, making it an essential troubleshooting tool for any PoE installation.
Key Configuration
• Interface: 1 × RJ45 connector (PoE input/PD).
• Input voltage: 37–57V DC (802.3af) / 42–57V DC (802.3at/bt).
• Detection modes: End-span, Mid-span, and 4-pair (End-span + Mid-span).
• Standards: IEEE 802.3af, 802.3at, and 802.3bt (Type 4).
• Dimensions: 23 × 70.1 × 22 mm; weight: 24 g.
Key Features
The POE-TESTER+ is a plug-and-play diagnostic dongle that detects PoE voltage and identifies PSE type — End-span (Mode A on data pairs 1/2/3/6), Mid-span (Mode B on spare pairs 4/5/7/8), or 4-pair mode (802.3bt/PoH). Bi-color LEDs provide instant interpretation: Left Amber = 802.3at End-span, Left Green = 802.3af End-span, Right Amber = 802.3at Mid-span, Right Green = 802.3af Mid-span, Both Amber = 802.3bt PoE++ or 4-pair 802.3at, Both Green = 802.3af or non-standard force mode.
Technical Context
The tester detects 6 PoE modes, including non-standard force mode, and confirms PoE presence before connecting powered devices to prevent mismatched PSE/PD configuration failures. It operates with input voltages of 37–57V DC (802.3af) and 42–57V DC (802.3at/bt), and is CE and TAA compliant.
Installation Notes
The dongle (23 × 70.1 × 22 mm, 24g) plugs directly into any RJ45 outlet or PSE port, operating from 0–50°C with 5–95% RH and storing from -10–60°C. LED indicators illuminate automatically when PoE voltage is detected, with no configuration required.
| Hardware Specifications | |
| Interface | 1 x RJ45 TP connector ■ PoE Power Input (PD) |
| LED indicators | |
| Left Amber | 802.3at PoE+ End-span / Pins 1, 2, 3 and 6 The PoE standard is detected as 802.3at PoE+ and voltage is detected on pair 1,2,3,6 |
| Left Green | 802.3af PoE End-span / Pins 1, 2, 3 and 6 The PoE standard is detected as 802.3af PoE and voltage is detected on pair 1,2,3,6 |
| Right Amber | 802.3at PoE+ Mid-span / Pins 4, 5, 7 and 8 The PoE standard is detected as 802.3at PoE+ and voltage is detected on pair 4,5,7,8 |
| Right Green | 802.3af PoE Mid-span / Pins 4, 5, 7 and 8 The PoE standard is detected as 802.3af PoE and voltage is detected on pair 4,5,7,8 |
| Both Amber | 4-pair 802.3bt PoE++ or 4-pair 802.3at PoE+ The PoE standard is detected as IEEE 802.3bt PoE++ or PoH and voltage is detected on all pairs |
| Both Green | 4-pair 802.3af PoE or non-standard force mode PoE The PoE standard is detected as IEEE 802.3af PoE or non-standard PoE and voltage is detected on all pairs |
| Power input | IEEE 802.3af PoE compliant with DC voltage within 37~57V IEEE 802.3at PoE+ and IEEE 802.3bt PoE++ compliant with DC voltage within 42~57V |
| Dimensions | 23 x 70.1 x 22 mm (W x D x H) |
| Weight | 24g |
| Environments | |
| Operating | Temperature: 0~50 degrees C Relative Humidity: 5~95% (non-condensing) |
| Storage | Temperature: -10 ~ 60 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Standards Conformance | |
| Standards compliance | IEEE 802.3af Power over Ethernet, IEEE 802.3at Power over Ethernet Plus, IEEE 802.3bt Power over Ethernet Plus Plus |
| Emission | CE Compliance |
| Ordering Information | |
| Product | POE-TESTER+ IEEE 802.3af/at/bt Power over Ethernet Tester |
