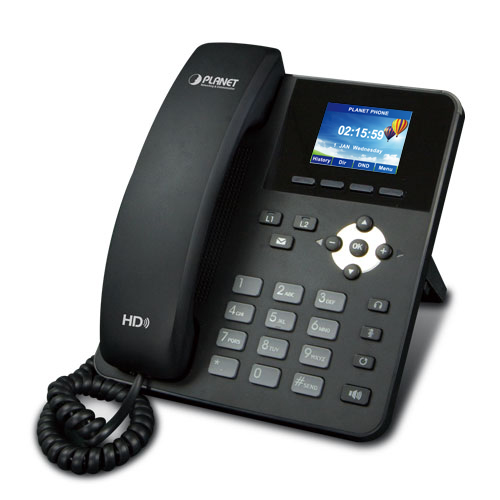

Planet - VIP-1120PT - High Definition Color PoE IP Phone

Name: Planet - VIP-1120PT - High Definition Color PoE IP Phone
Brand: Planet
SKU: VIP-1120PT

Part number:

VIP-1120PT

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

High Definition Color POE IP Phone: (2.4-inch Color LCD, G.722 HD Voice, 2 SIP Lines, Multi-Language, 3-way Conferencing, Caller ID, DND, PoE, QoS, VPN, VLAN, STUN, Auto Provision, TR069)

Features:

Intuitive Design Brings Quality Communication
IP Phone with Color Display
Compliant with SIP 2.0
Affordable for All Businesses
Enhanced, Full-Featured SIP IP Phone
Enterprise IP Telephony Deployment of VIP-1120PT

Highlights

2.4-inch color LCD monitor
2-line key with color LED
2 SIP identities
Wideband G.722 HD audio
Power over Ethernet (PoE) compliant
QoS, TR069, auto-provisioning and multi-language

Advantageous Applications

Supports SIP 2.0 (RFC 3261)
Inband, SIP info, RFC 2833 DTMF relay
Soft keys and function keys programmable
Echo cancellation: Supports G.168, and 96ms max. filter length in hands-free mode
Supports voice gain setting, voice activity detection (VAD) and comfort noise generation (CNG)
Full duplex hands-free speakerphone
Hands-free headset ringing choice
Voice codec setting for each SIP line

SIP Applications

Call forward and transfer (blind/attended)
Call holding and waiting
3-way conferencing
Paging and intercom
Call park, call pickup and join call
Redial and click to dial
Secondary dialing automatically
Incoming calls, outgoing calls and missing calls (Each supports 300 records)
SMS and speed dial
Phonebook up to 500 records

Call Control Features

Flexible dial map, hotline and empty calling no. for rejected service
Black list for rejected authenticated calls
White list and call limit
Do not disturb (DND)
Caller ID display
Dial without registration

Network Features

PPPoE/DHCP client
802.1 VLAN (voice VLAN/data VLAN)
VPN (L2TP) and openVPN
Quality of Service

Maintenance and Management

Integrated web server provides web-based administration and configuration
Telephone keypad configuration via display menu/navigation
Automated provisioning and upgrade via HTTPS, HTTP, TFTP
User authentication for configuration pages
SNTP time synchronization
TR069

Hardware
Lines (Direct Numbers)	2 SIP Lines
Physical Interfaces	LCD x 1: 2.4-inch (320 x 240) color LCD Keypad: 32 keys, including 　• 4 soft-keys 　• 12 standard phone digit keys 　• 5 navigation keys 　• 2-line key with tri-color LED 　• 5 function keys 　• 3 volume control keys -- Up, Down, Mute (microphone) 　• 1 hands-free feature HD hands-free speaker (0 ~ 7KHz) x 1 HD hands-free microphone (0 ~ 7KHz) x 1 HD handset (RJ9) x 1
Protocols and Standard
Protocols	SIP2.0 over UDP/TCP/TLS RTP/RTCP/SRTP STUN DHCP PPPoE 802.1x L2TP (basic unencryption) OpenVPN SNTP FTP/TFTP HTTP/HTTPS TR069
Request for Comments (RFCs)	354, 1321, 1350, 1769, 1889, 1890, 2131, 2132, 2616, 2617, 2661, 2833, 2976, 3261, 3262, 3263, 3264, 3265, 3268, 3311, 3489, 3711, 4346, 4566, 5630, 5865
Networking
Networking	Physical: 10/100Mbps Ethernet, dual bridged port for PC bypass IP Configuration: Static, DHCP, PPPoE Network Access Control: 802.1x VPN: L2TP (basic unencryption), OpenVPN VLAN QoS
Deployment & Maintenance	Auto-provisioning via FTP/TFTP/HTTP/HTTPS/DHCP/OPT66/SIP PNP/TR069 Web management portal Web-based packet dump Configuration backup/restore Auto/Manual online software upgrade Syslog
Features
Call Features	Call out, answer, reject Mute/unmute (microphone) Call hold, resume Call waiting Intercom Caller ID display Call forwarding (always/busy/no answer) Call transfer (attended/unattended) Call parking, pick-up (depending on server) Redial Do-not-disturb (per line/per phone) Auto-answering (per line) Voice message (on server) Local 3-way conferencing Hot line
Phone Features	Phone accessibility control by user PIN Intelligent phonebook (up to 500 entries in total) Remote phonebook (XML/LDAP) Intelligent contact number matching/filtering Call log (300 entries in total, in/out/missed) Voice message waiting indication (VMWI) Network time synchronization Multi-language support in screen and web UI: English, Chinese (Traditional/Simplified), Japanese, Russian, Italian, Turkish, German, Dutch, Spanish, Hebrew, Polish, French, etc.
Audio Features	HD voice microphone/speaker (handset/hands-free, 0~7KHz frequency response) Wideband ADC/DAC 16KHz sampling Narrowband codec: G.711a/u, G.723.1, G.726-32K, G.729AB Wideband codec: G.722 Full-duplex acoustic echo canceller (AEC) – 96ms tail-length in hands-free mode Voice activity detection (VAD), comfort noise generation (CNG), background noise estimation (BNE), noise reduction (NR) Packet loss concealment (PLC) Dynamic adaptive jitter buffer up to 300ms DTMF: In-band, out-of-band – DTMF-relay (RFC 2833), SIP info
Environment
Power Requirements	IEEE 802.3af Power over Ethernet 5V 600mA
Operating Temperature	0 ~ 40 degrees C
Operating Humidity	10 ~ 65% (non-condensing)
Weight	620g
Dimensions (W x D x H)	196 x 164 x 60 mm
Emission	CE, FCC, RoHS

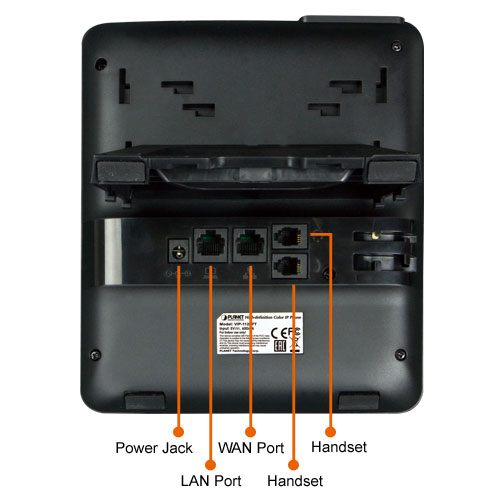

Connectors	RJ9 phone jacket x 2: Handset x 1 Headphone x 1 RJ45 Ethernet jacket x 2: Network x 1 (802.3af PoE Class 1 enabled) PC x 1 (Bridged Network)
