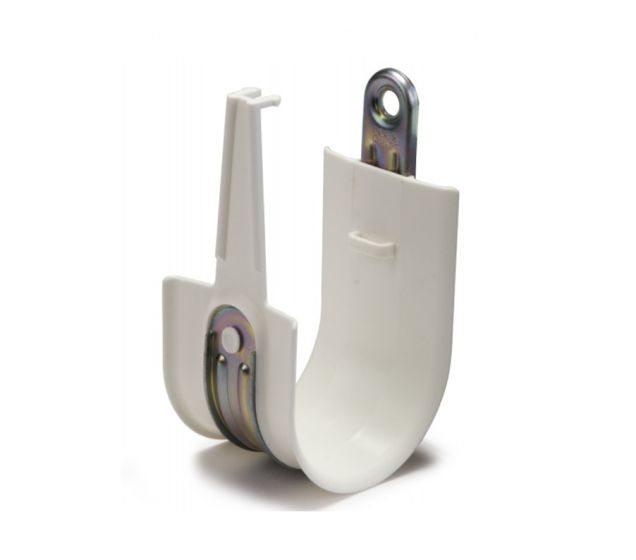

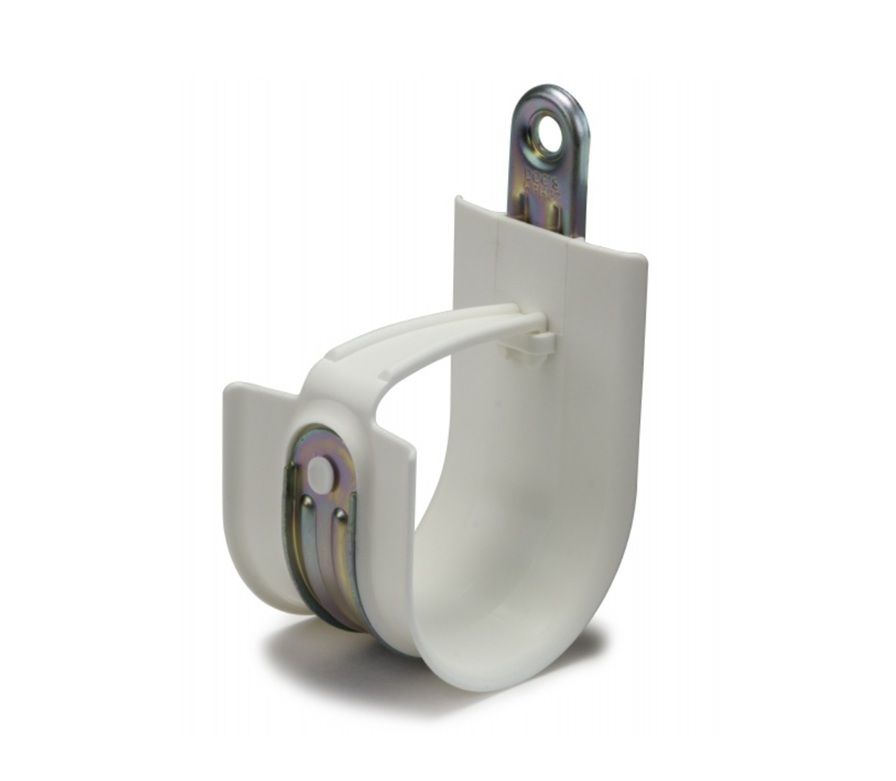

Platinum Tools - HPH48VO-25 - J-Hook 3" Vertical Overhang 180°, Size 48, White (25 Each)

Product Overview

The Platinum Tools HPH48VO-25 is a 3-inch High Performance J-Hook with a 180-degree vertical overhang design, supplied in a white 25-piece pack. It is designed for structured cable management installations where secure support, smooth cable routing, and reusable cable retention are required.

Key Configuration

Model: HPH48VO-25 | Product Type: 3-inch vertical overhang J-Hook | Size: 48 | Angle: 180 degrees | Color: White | Quantity: 25 each | Static Load: Up to 50 lb

Key Features

 · Steel J-Hook over-molded with polypropylene for smooth cable slide

 · Snap-Lock retainer securely holds cables and can be reused

 · 2-inch wide base support helps prevent cable kinks

 · Eliminates the need for cable ties or Velcro ties

 · cULus listed, Plenum rated, RoHS compliant, and TIA compliant

 · Supports up to 50 lb ultimate static load per J-Hook

Technical Context

The HPH48VO-25 provides a reliable cable support point for low-voltage cable runs while helping maintain proper cable bend and routing. Its over-molded polypropylene surface helps reduce friction during installation, while the reusable retainer keeps cable bundles organized without additional fastening hardware.

Installation Notes

This white vertical overhang J-Hook is suitable for commercial structured cabling and plenum-space installations. The 180-degree overhang configuration supports clean cable routing in space-efficient layouts while allowing cables to be adjusted or serviced after installation.
