Platinum Tools - HPH48VO-25R - J-Hook 3" Vertical Overhang 180°, Size 48, Red (25 Each)

Product Overview

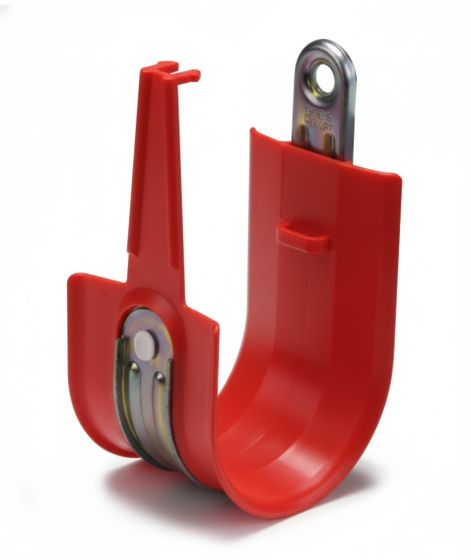

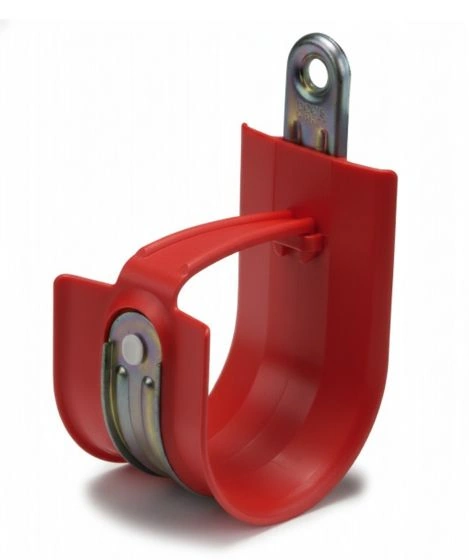

The Platinum Tools HPH48VO-25R is a 3-inch High Performance J-Hook with a 180-degree vertical overhang design, supplied in a red 25-piece pack. It is designed for structured cable management installations that require secure cable support, smooth routing, and reusable cable retention without separate ties.

Key Configuration

Model: HPH48VO-25R | Product Type: 3-inch vertical overhang J-Hook | Size: 48 | Angle: 180 degrees | Color: Red | Quantity: 25 each | Static Load: Up to 50 lb

Key Features

 · Steel J-Hook over-molded with polypropylene for smooth cable slide

 · Snap-Lock retainer securely holds cables and can be reused

 · 2-inch wide base support helps prevent cable kinks

 · Eliminates the need for cable ties or Velcro ties

 · cULus listed, Plenum rated, RoHS compliant, and TIA compliant

 · Supports up to 50 lb ultimate static load per J-Hook

Technical Context

The HPH48VO-25R helps organize low-voltage cable runs while maintaining proper cable support and bend integrity. Its slick over-molded polypropylene surface supports easier cable movement during installation, while the reusable Snap-Lock retainer keeps bundles secured and accessible for later service.

Installation Notes

This red vertical overhang J-Hook is suitable for commercial structured cabling and plenum-space installations. The 180-degree overhang configuration supports clean cable routing, and the red finish can help identify or separate cable pathways in larger cable management projects.
