Platinum Tools - HPH64VO-25R - J-Hook 4" Vertical Overhang 180°, Size 64, Red (25 Each)

Product Overview

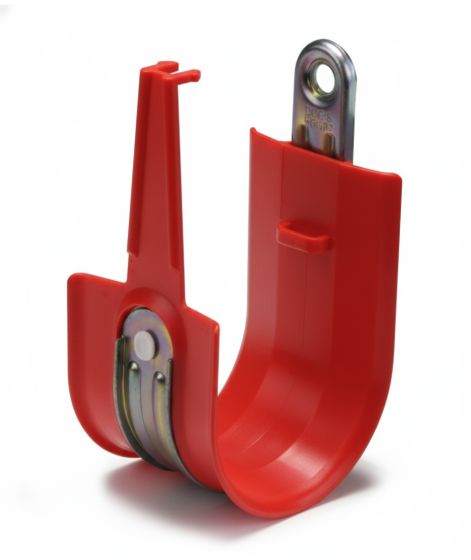

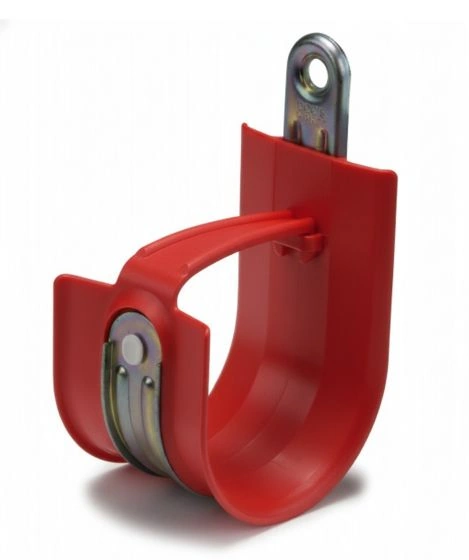

The Platinum Tools HPH64VO-25R is a 4-inch High Performance J-Hook with a 180-degree vertical overhang design, supplied in a red 25-piece pack. It is built for high-performance cable management applications that require secure cable retention, smooth cable routing, and organized support without cable ties or Velcro ties.

Key Configuration

Model: HPH64VO-25R | Product Type: 4-inch vertical overhang J-Hook | Angle: 180 degrees | Size: 64 | Color: Red | Quantity: 25 each | Static Load: Up to 50 lb | Compliance: cULus listed, Plenum rated, RoHS compliant, and TIA compliant

Key Features

 · Steel J-Hook over-molded with polypropylene for smooth cable slide

 · Snap-Lock retainer securely holds cables while allowing easy access

 · 2-inch wide base support helps prevent cable kinks

 · Eliminates the need for cable ties or Velcro ties

 · Smooth, burr-free surface helps reduce friction during cable routing

 · Lightweight construction supports easier handling and installation

 · Flush mount design provides a clean installation appearance

 · cULus listed, Plenum rated, RoHS compliant, and TIA compliant

 · Supports up to 50 lb ultimate static load per J-Hook

Technical Context

The HPH64VO-25R provides a stable support point for cable bundles while helping maintain proper cable routing and bend radius. Its polypropylene over-mold reduces friction during cable placement, and the reusable Snap-Lock retainer keeps cables organized without requiring additional fastening hardware.

Installation Notes

This J-Hook is suitable for commercial structured cabling, plenum-space installations, and vertical overhang cable routing applications. The red finish can support color-coded cable pathways, identification zones, or organized cable management layouts.
