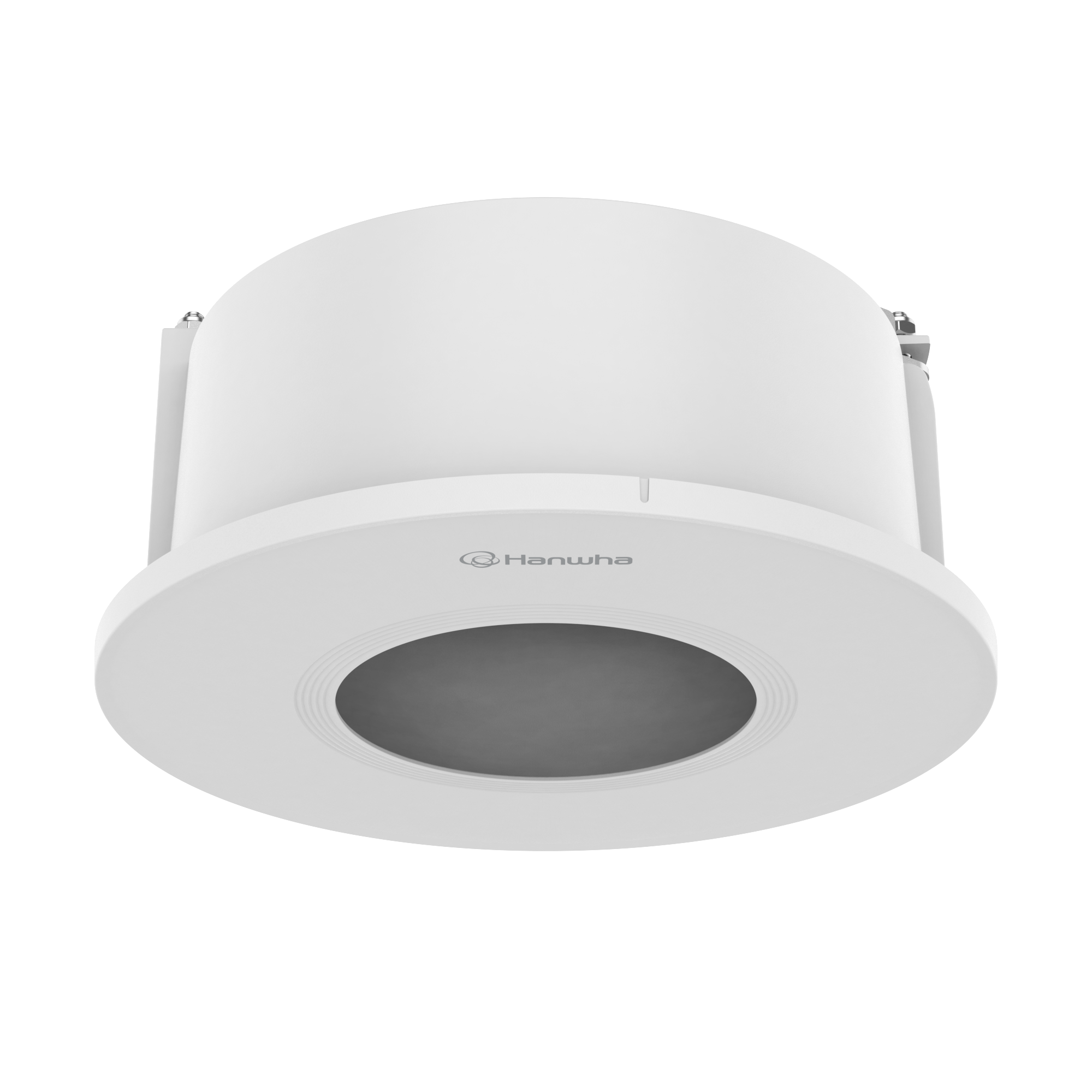

Hanwha - SHD-1400FW - In-ceiling flush mount Compatible with QNV-C8083R/C9083R
Hanwha - SHD-1400FW - In-ceiling flush mount Compatible with QNV-C8083R/C9083R
Hanwha - SHD-1400FW - In-ceiling flush mount Compatible with QNV-C8083R/C9083R

Hanwha - SHD-1400FW - In-ceiling flush mount Compatible with QNV-C8083R/C9083R

Part number:
SHD-1400FW
Price:
Dealers only
Add to Quote/Project Registration
Description Specifications Downloads

In-ceiling flush mount Compatible with QNV-C8083R/C9083R.

Mechanical
ColorWhite
MaterialPC(Polycarbonate)
RAL codeRAL9003
Product dimensions / weightø202.3x92.7mm(ø7.96x3.65") / 505g (1.11lb) ※ Ceiling hole size : ø185mm (ø7.28")
Tile thickness10~70mm (0.4~2.8")
Mount Screw sizeTR20
Max. load

2kg (4.41lb)

※ Maximum load of ceiling board : 4kg (8.82lb)

Supported productsQNV-C8083R/C9083R
Name
Description
Size
Downloads
File
Datasheet
0.2mb
