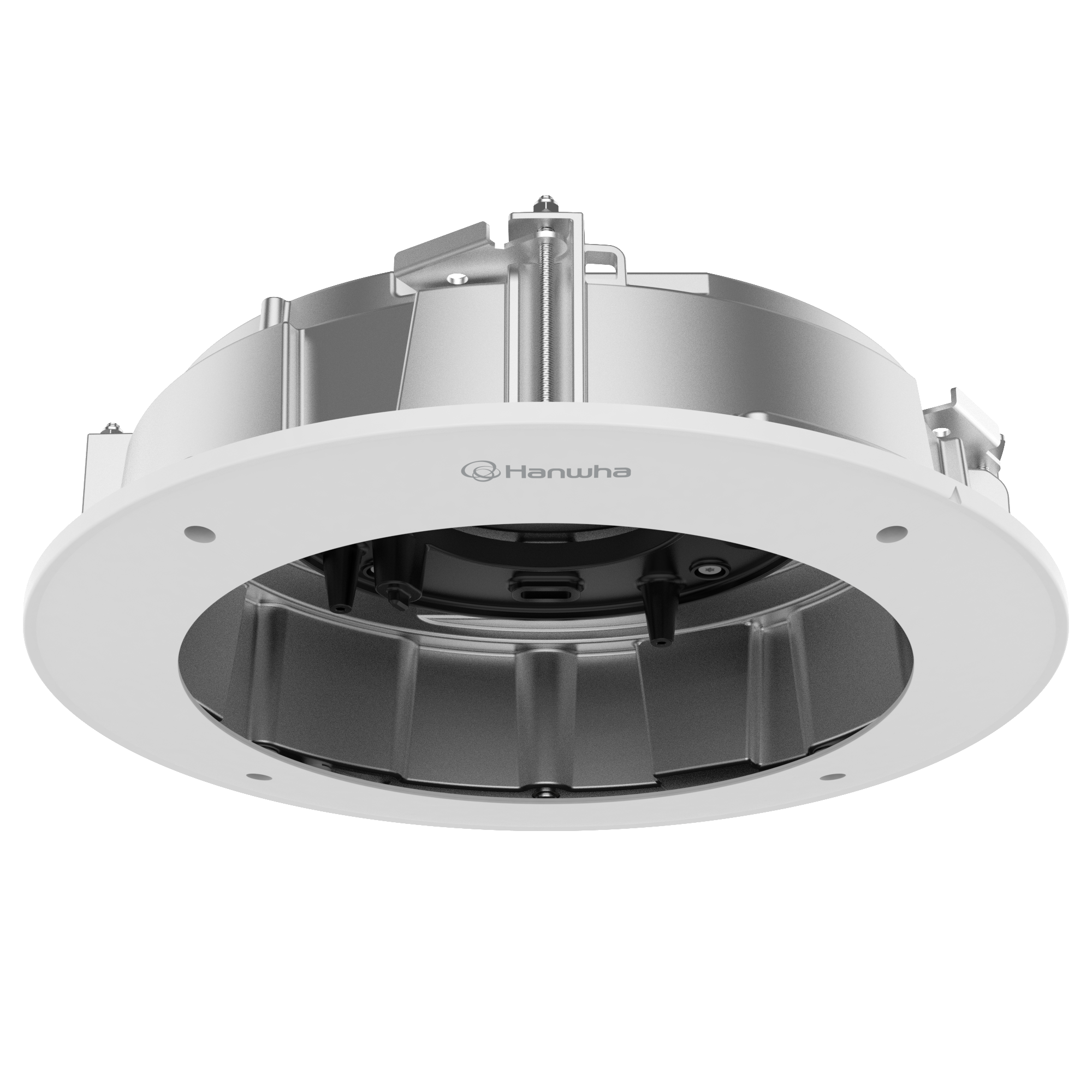

Hanwha - SHD-2500FPW - Plenum In-ceiling Mount compatible with: PNM-C16083RVQ/C32083RVQ
Part number:
SHD-2500FPW
Price:
Plenum In-ceiling Mount compatible with: PNM-C16083RVQ/C32083RVQ.
Features:
- Material: Body-Aluminum, Rim-PC
- Dimensions/ Weight : ø352x107.4mm (ø13.86x4.23") / 2,450g (5.40lb)
※ Ceiling hole size : ø326mm (ø12.83") - Color : White
- Max. load: 5kg (11.02lb)
※ Maximum load of ceiling board : 11.6kg (25.60lb)
| Mechanical | |
|---|---|
| Color | White |
| Material | Body: Aluminum Rim: PC |
| RAL code | RAL9003 |
| Product dimensions / weight | ø352x107.4mm (ø13.86x4.23") / 2,450g (5.40lb) ※ Ceiling hole size : ø326mm (ø12.83") |
| Tile thickness | 10~70mm (0.4~2.8") |
| Mount Screw size | TR20 |
| Max. load | 5kg (11.02lb) ※ Maximum load of ceiling board : 11.6kg (25.60lb) |
| Conduit hole | 12.7mm(1/2") (M20) / 19.1mm(3/4") (M25) |
| Supported products | PNM-C16083RVQ, PNM-C32083RVQ |
Name
Description
Size
Downloads
File
Datasheet
0.3mb
