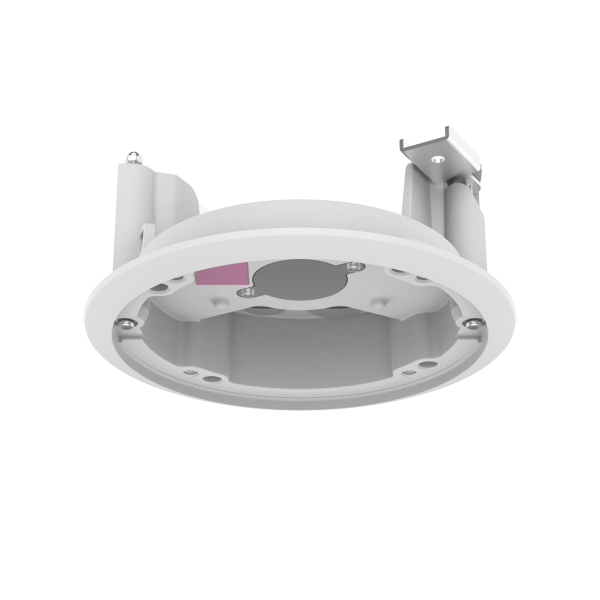

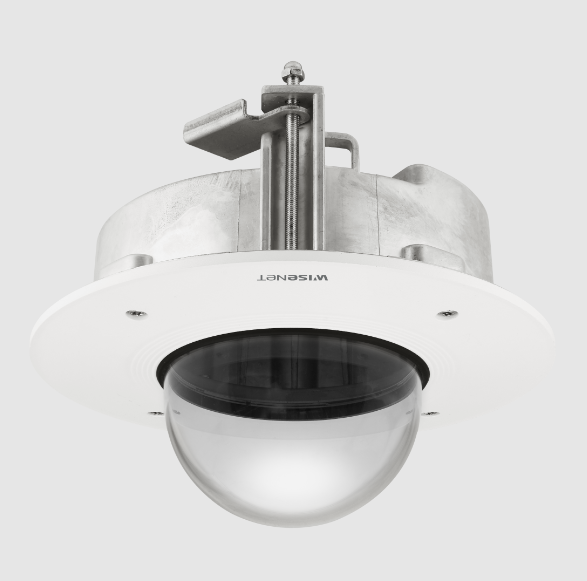

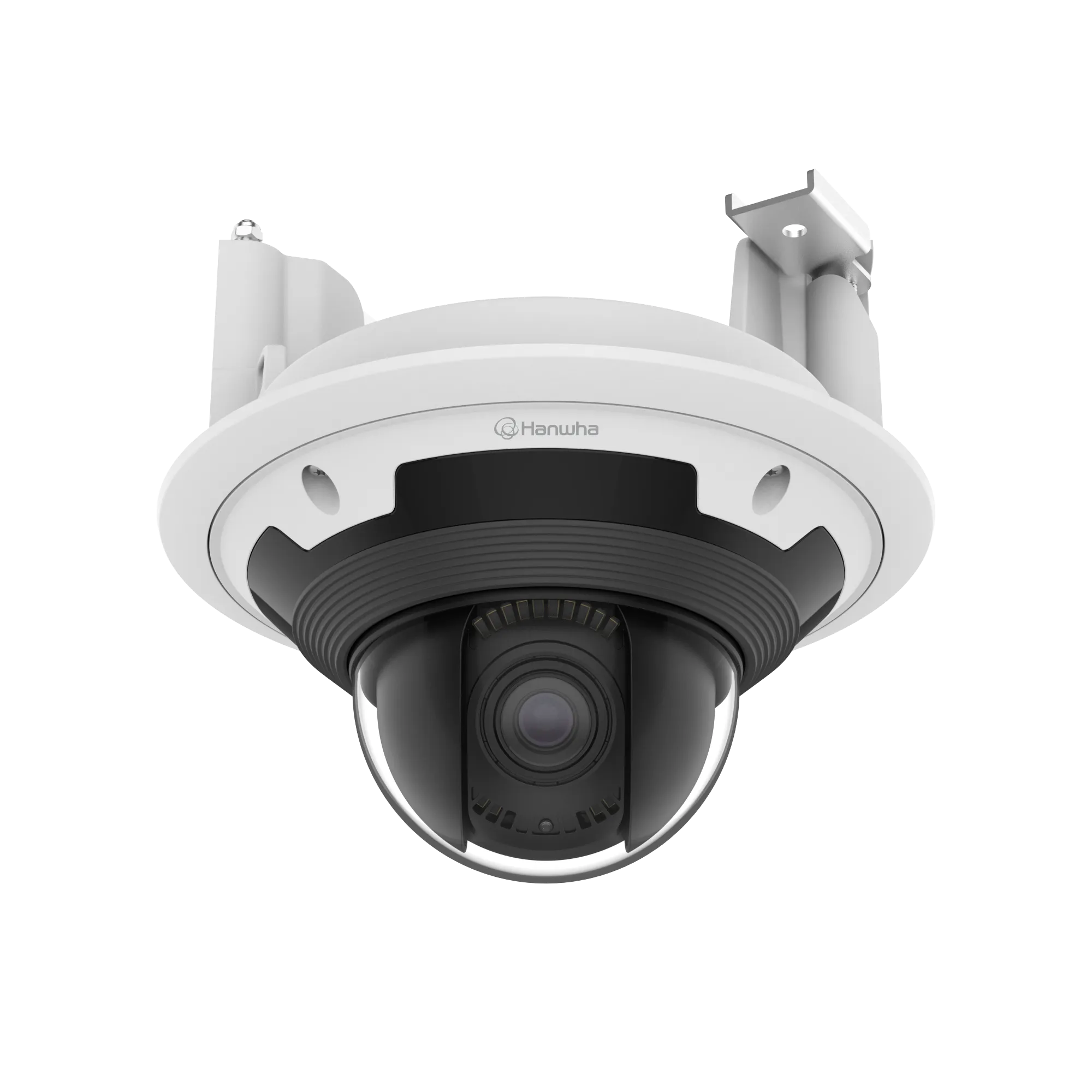

Hanwha - SHD-1370FPW - Plenum In-ceiling Housing
Part number:
SHD-1370FPW
Price:
In-ceiling Mount Plenum compatible with XNV-6123R, XNV-6083RZ/8083RZ/9083RZ, XNV-6083Z/8083Z, XNV-6083R/8083R/8093R/9083R, XNV-8082R/9082R, PNV-A6081R/A9081R
Features:
- Material: Aluminum
- Dimensions : Ø205x163mm(8.07x6.42")
- Weight : 1.17kg(2.58lb)
- Color : White
| Mechanical | |
| Color | White |
| Material | Aluminum |
| RAL code | RAL9003 |
| Product dimensions / weight | ø205x103mm (ø8.07x4.05") / 770g (1.70lb) ※ Ceiling hole size : ø181mm (ø7.12") |
| Tile thickness | 10~70mm (0.4~2.8") |
| Mount Screw size | TR20 |
| Max. load | 3kg (6.61lb) |
| Conduit hole | 12.7mm(1/2") (M20) / 19.1mm(3/4") (M25) |
| Supported products | PNV-A6081R/A9081R, XNV-8082R/9082R, XNV-6083R/8083R/8093R/9083R, XNV-6123R, XNV-6083Z/8083Z, XNV-6083RZ/8083RZ/9083RZ |
Name
Description
Size
Downloads
File
Datasheet
1.2mb
File
Hanwha Vision America NDAA Compliant Product List
0.8mb
