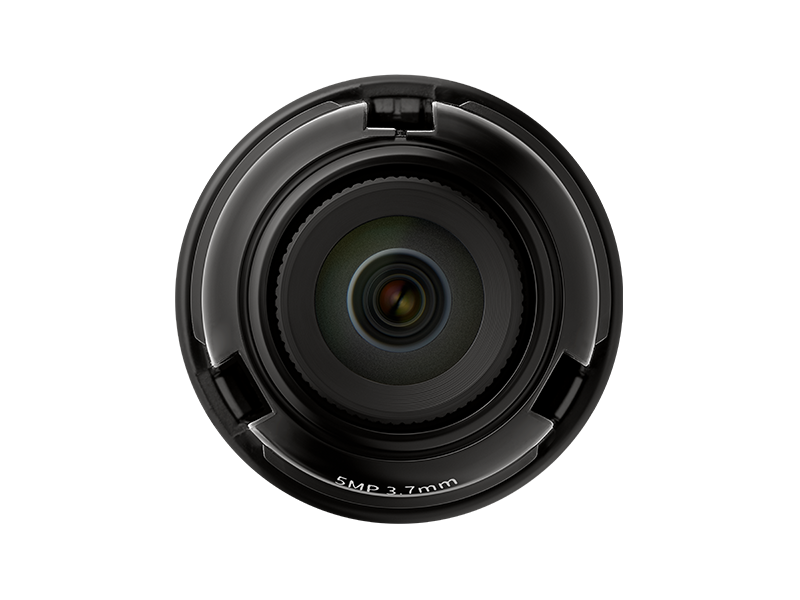

Hanwha - SLA-5M3700Q - PNM-9000VQ Lens module
Part number:
SLA-5M3700Q
Price:
1/1.8" 5MP CMOS with a 3.7mm fixed focal lens, FoV: H: 97.5˚, V: 71.9˚ for the PNM-9000VQ
Features:
- 0.16Lux@F1.6 Color, B/W (5MP lenses)
- Selectable lens options: 3.7 / 4.6 / 7.0mm fixed lens (5MP)
| Imaging Device | 1 / 1.8" 5M CMOS |
| Effective Pixels | 3096 (H) x 2094 (V) |
| Min. Illumination | Color: 0.16Lux(F1.6, 1/30sec) B/W: 0.16Lux(F1.6, 1/30sec) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.7mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H:97.5˚, V:71.9˚, D:126.2˚ |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | -90˚~+90˚ / 59˚~66˚ / -180˚~+180˚ |
| Mechanical | |
| Color / Material | Black / Plastic |
| Product dimensions / weight | Ø35.5x35.9mm, 35g |
