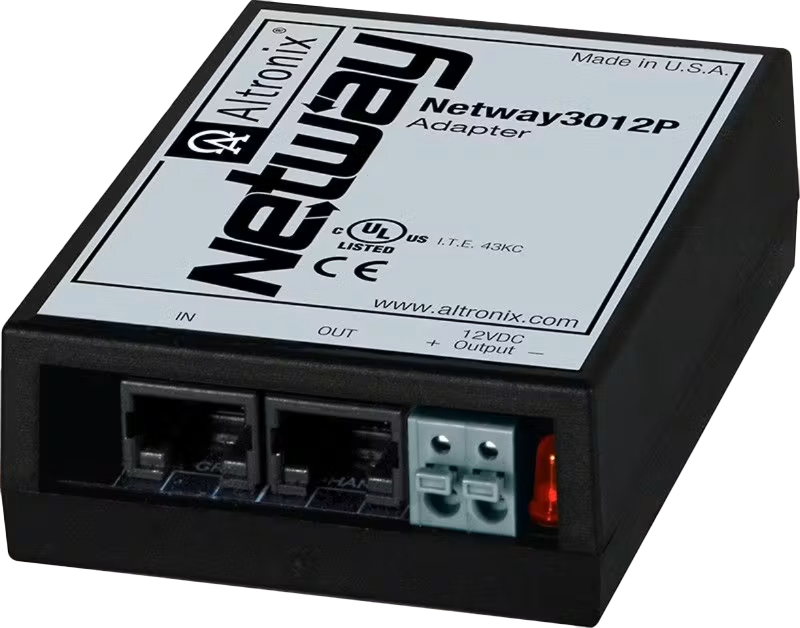

Hanwha - NetWay3012P - Altronix Netway3012P provides simultaneous 12VDC and PoE/PoE+ outputs for applications including PoE cameras and external microphones.
Part number:
NetWay3012P
Price:
Altronix Netway3012P provides simultaneous 12VDC and PoE/PoE+ outputs for applications including PoE cameras and external microphones, control boards, switching equipment, and more.
| Specifications | |
| Functions | Passes PoE+ and converts PoE to 12VDC Speed: 10/100 Mbps. |
| Output | Up to PoE+ 12VDC up to 2A 30W max combined |
| Indicators (LED) | Red LED: Power ON |
| Agency Listings | CE: European Conformity |
| Physical and Environmental | |
| Dimensions (W x L x H) | 3.8” x 2.5” x 1” (96.52mm x 63.5mm x 25.4mm) |
| Weight (approx.) | Product Weight: 0.2 lbs. (0.1 kg) Shipping Weight: 0.25 lbs. (0.11 kg) |
| Temperature | Operating: 0ºC to 50ºC (32ºF to 122ºF) Storage: -40ºC to 70ºC (-40º to 158ºF) |
| Relative Humidity | 85% +/-5% |
| Operating Altitude | -304.8 to 3,048m |
Name
Description
Size
Downloads
File
Datasheet
0.6mb
File
Installation Instructions
0.6mb
