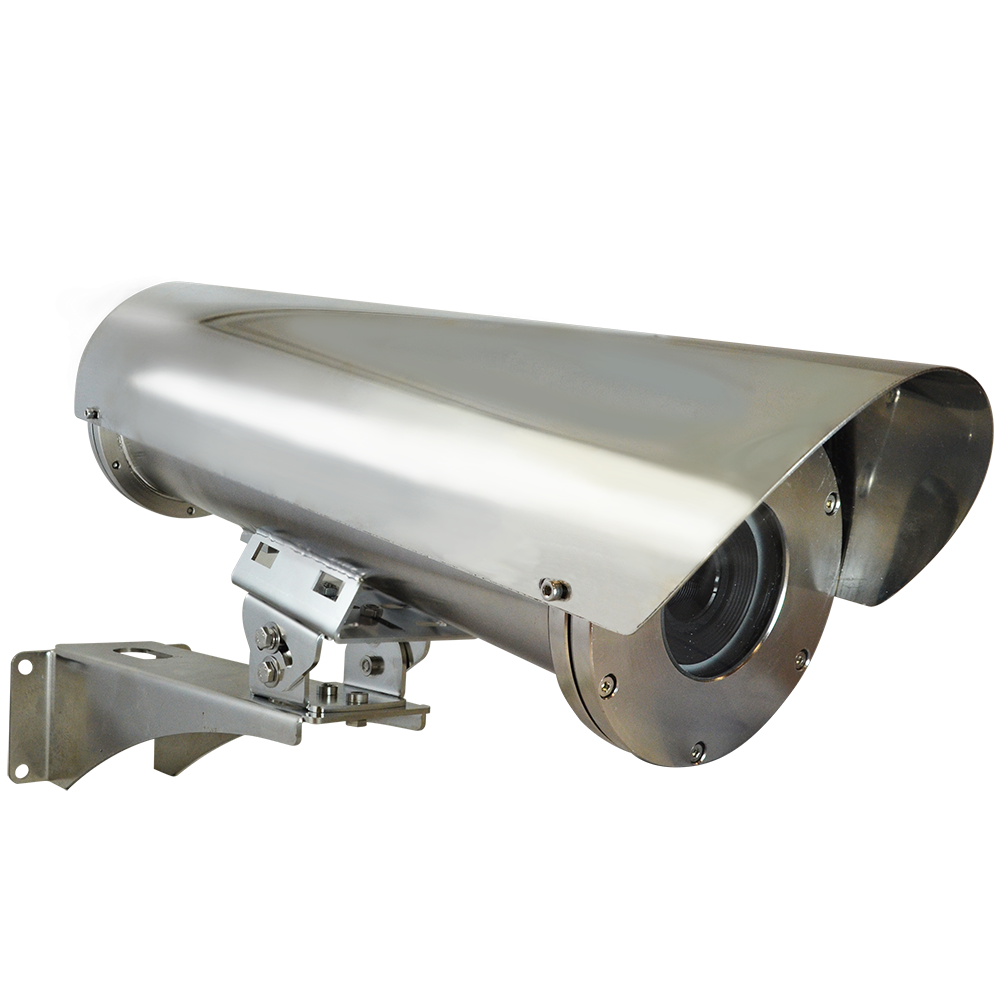

ACTi - PMAX-0208 - PoE Explosion Proof Housing with Heater, Fan and Bracket
Part number:
PMAX-0208
Price:
Explosion Proof Housing with Heater, Fan (AC 110V~220V) and Bracket
| Device | |
| Product Type | Box Camera Housing |
| Description | PoE Explosion Proof Housing with Heater, Fan and Bracket |
| General | |
| Power Source | High PoE (IEEE802.3at) |
| Power Consumption | High PoE: Max. 25.5W (camera and housing with heater and fan on) |
| Weight | 9000g (19.842lb) |
| Dimensions | (Ø x L): 132mm x 400mm (5.20" x 15.75") |
| Environmental Casing | Weatherproof (IP68), Explosion proof |
| Fan | Yes, 40°C / 104°F (fan on), 30°C / 86°F (fan off) |
| Heater | Yes, 15°C / 59°F (heater on), 24°C / 77°F (heater off) |
| Approvals | IP68, ATEX II 2G Ex d IIB T6 Gb (EN 60079-0, EN 60079-1), TS Ex d IIC T5 T6 Gb, TS Ex tb IIIC T100℃ Db |
| Color | Silver |
| Material | Stainless Steel 316 |
| Warranty | 1 Year(s). For extended warranty offering, see http://www.acti.com/support/warranty |
