Environmental Sensor, Advanced BLE Detection Engine, Multi-Detection Capabilities (Vaping, THC, Aggression, Glass Breakage), Cloud-Integrated, Privacy-Compliant Design, Compatible with Major Security Systems and Dashboards. Real-time environmental monitoring, Detection coverage up to 15m. Precision analytics: Vaping, Aggression, Keyword detection, Health and environmental monitoring. BLE Radar with device tracking for loitering and unauthorized access management. Supported alerts include: Audio detection (Scream/Shout), Keyword triggers, and Smoke/Vape analytics; Installed software features: Customizable API alerts, real-time cloud sync, and 3rd Party VMS or Triton Cloud dashboard. Operating temperature: -20°C to +55°C (-4°F ~ +131°F). Power in: PoE+ (802.3af), Power out: PoE+ (802.3af), 12VDC backup. Modular mounting options for versatile installation. Durable IP66-rated casing, privacy-compliant (no camera).

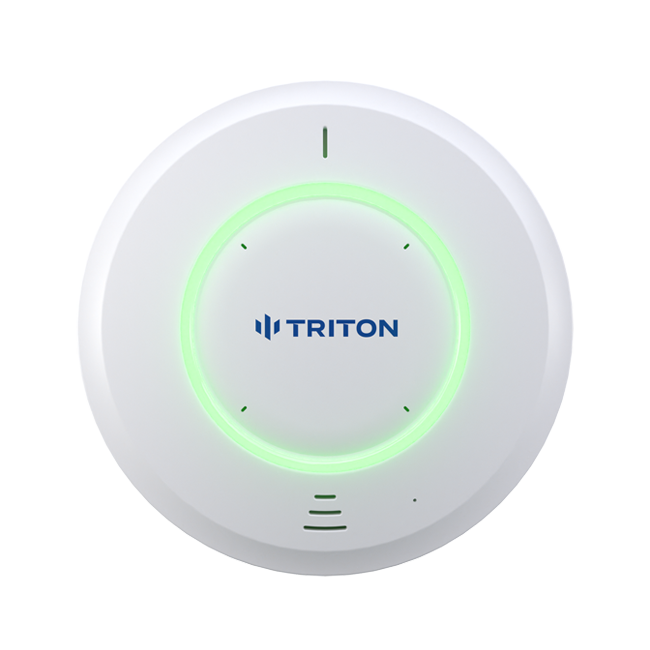

The Triton Ultra Sensor is a cutting-edge detection device designed for high-accuracy vape detection, capable of identifying THC, aggression, and environmental anomalies like screams and glass breaks. Featuring cloud integration, real-time alerts, and advanced security options, including people counting, loitering detection, and a 10-year warranty for long-term reliability.
Features:
- Operating Temperature: 0°C~+40°C (32°F~+104°F) / 0~90% RH (Non-Condensing)
- Weight: 340g
- Color: White
- Material: PC (Polycarbonate)
- Dimensions: 5.5” x 1.96” (140mm x 50mm)
- Max Load: 15kg
- Certifi cation: CE, FCC, IK8, RoHS, UKCA
Device Key Characteristics:
- Vaping
- False-Positive Rejection
- Noise Incidents
- Air Quality
- Spoken Word
- Tamper Detection
- VMS Integrations
- Loitering Detection & Occupancy Visualization
GENERAL
| Operating Temperature / Humidity | 32°F~+104°F (0°C~+40°C) / 0~90% RH (Non-Condensing) |
| Mounting Options | Surface Mount (recommended), Wall Mount via Stud, Pole Mount |
| Power Supply | POE (IEEE 802.3at Class 3 Compliance) input and output. Tether up to 4 devices together (optional). Conduit Adapter (optional). |
| Certification | FCC, CE, RoHS, IK8, UKCA |
NETWORK
| Ethernet In | RJ-45 (10/100 Base-T) PoE (IEEE 802.3at Class 3 Compliance) (48v 5-8w) |
| Ethernet Out | RJ-45 (10/100 Base-T) IEEE 802.3at Class Compliance (Up to 4 Tethered Devices) |
| Protocols | RTSP, IPV4 / V6, TCP / IP, HTTP, HTTPS, DHCP, Onvif |
| Wireless | 2.4 GHZ IEEE 802_11 b/g/n/ac Wire-less |
| Product Dimensions / Weight | Dimensions: 5.5" x 1.96" (140mm x 50mm) / Weight: 340g |
COMMUNICATION I/O
| Tritons PC Software | On-Premise management software to connect all Triton devices to a Single account and view and manage them individually |
| Triton Cloud | Cloud adds multi-tenant access, SSO, Alerts, Bulk Setup, and advanced analytics from the Triton Hardware. |
| Sent via AWS API | |
| SMS Text Message | Sent via Twilio API |
| Speaker | Ultra-loud speaker with pre-configured sounds and the options for users to upload Audio Files. The Speaker plays different audio files based on the event that is detected. |
| Alert Light | Users can map how the light reacts to different event types |
| Live Dashboard Stream | Live Dashboard Stream |
| Relay | Supports relay input and output to interface with external hardware |
| Integrations | ULTRA integrates with many 3rd party VMS, communications, and safety systems. Most popular include: Hanwha WAVE VMS, Milestone, Genetec, Raptor Technologies, i-Pro Video Insight, Axis Camera Station, Axis D4100, Arcules, OpenEye, ExacqVision, DW Spectrum, Nx Witness, Ganz CORTROL, VAST 2, EPIC System, IC Realtime, and Avigilon. Contact Triton for integration requests and a full list of integrations. |
