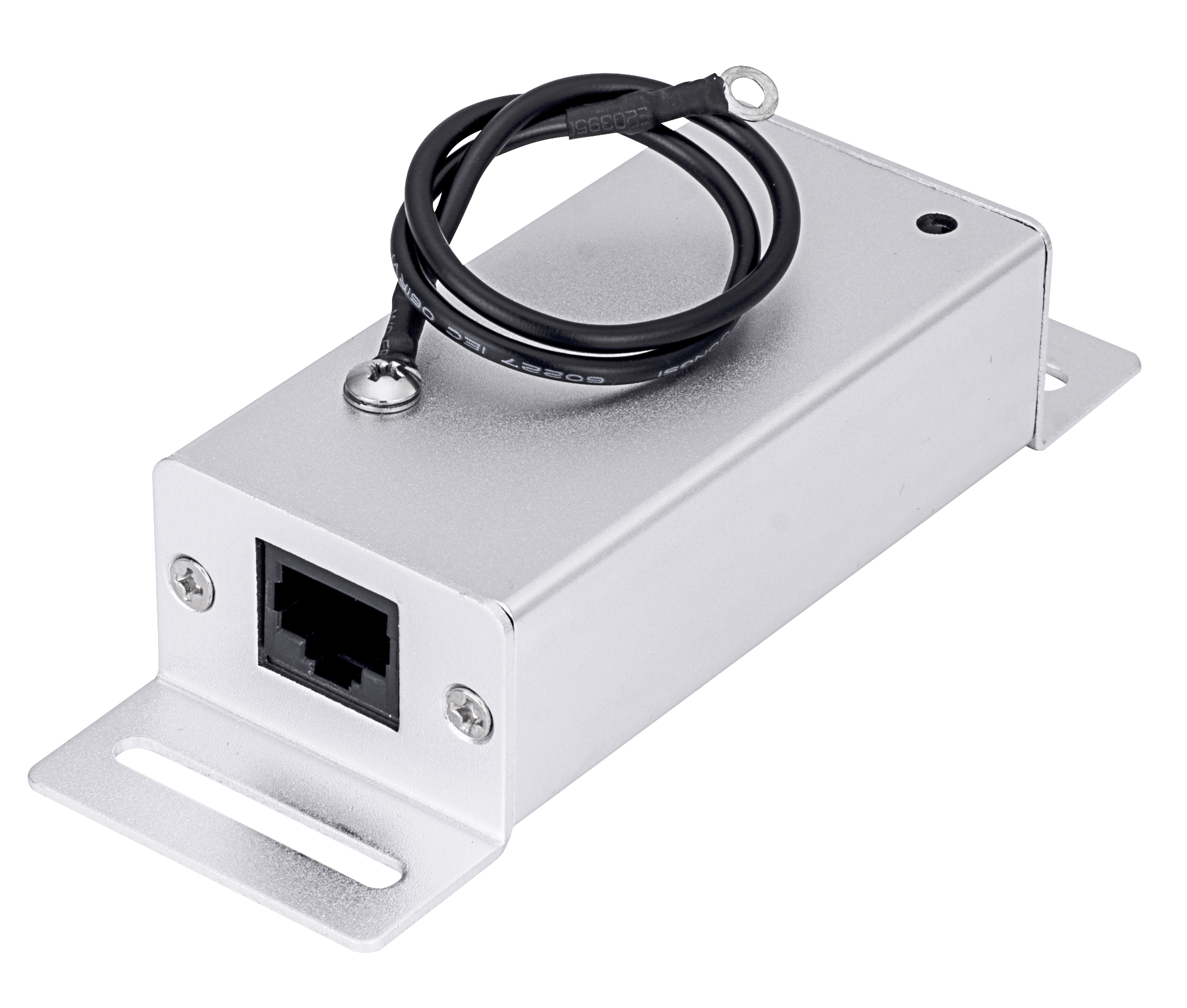

Vivotek - AT-PSP-001 - PoE Surge Protector: 8-10KA.
Part number:
AT-PSP-001
Price:
PoE Surge Protector: 8-10KA.
Features:
- Surge Protector against Lightning/Transient Voltage
| Technical Specification | |
| Number of Ports | 1 |
| Pass Through Data Rates | 10/100/1000 Mbps |
| Max Discharge Current (8/20us, 1KA per Line) | 8KA,16KV |
| Maximum Operation DC Voltage | 60VDC |
| Maximum Operation DC Current | 1A for 2 pair, 2A for 4 pair, 95W maximum |
| Common Mode Protection Level (10/700us) | 20KV |
| Differential Mode Protection Level (10/700us) | 4KV |
| Clamping Voltage (Line to GND) | 600V |
| Clamping Voltage (Line to Line) | 20V |
| Insertion Loss @ 10MHz/100MHz | 1dB |
| Return Loss @ 10MHz/100MHz | -20dB |
| Response Time | 5ns |
| Warranty | 12 Months |
| Dimensions (WxHxD) | 25 x 40 x 80 mm |
| Environmental Specifications | |
| Operating Temperature | -40 °C ~ 85 °C (-40°F ~ 185°F) |
| Storage Temperature | -40 °C ~ 85 °C (-40°F ~ 185°F) |
| Operating Humidity | 5% ~ 95% non-condensing |
Name
Description
Size
Downloads
File
Specification Sheet
0.5mb
File
QIG Surge Protection General Cameras
1.3mb
File
QIG PoE Surge Protector
0.5mb
