Hanwha - SHB-V-DBHWGC - Pole Mount
Part number:
SHB-V-DBHWGC
Price:

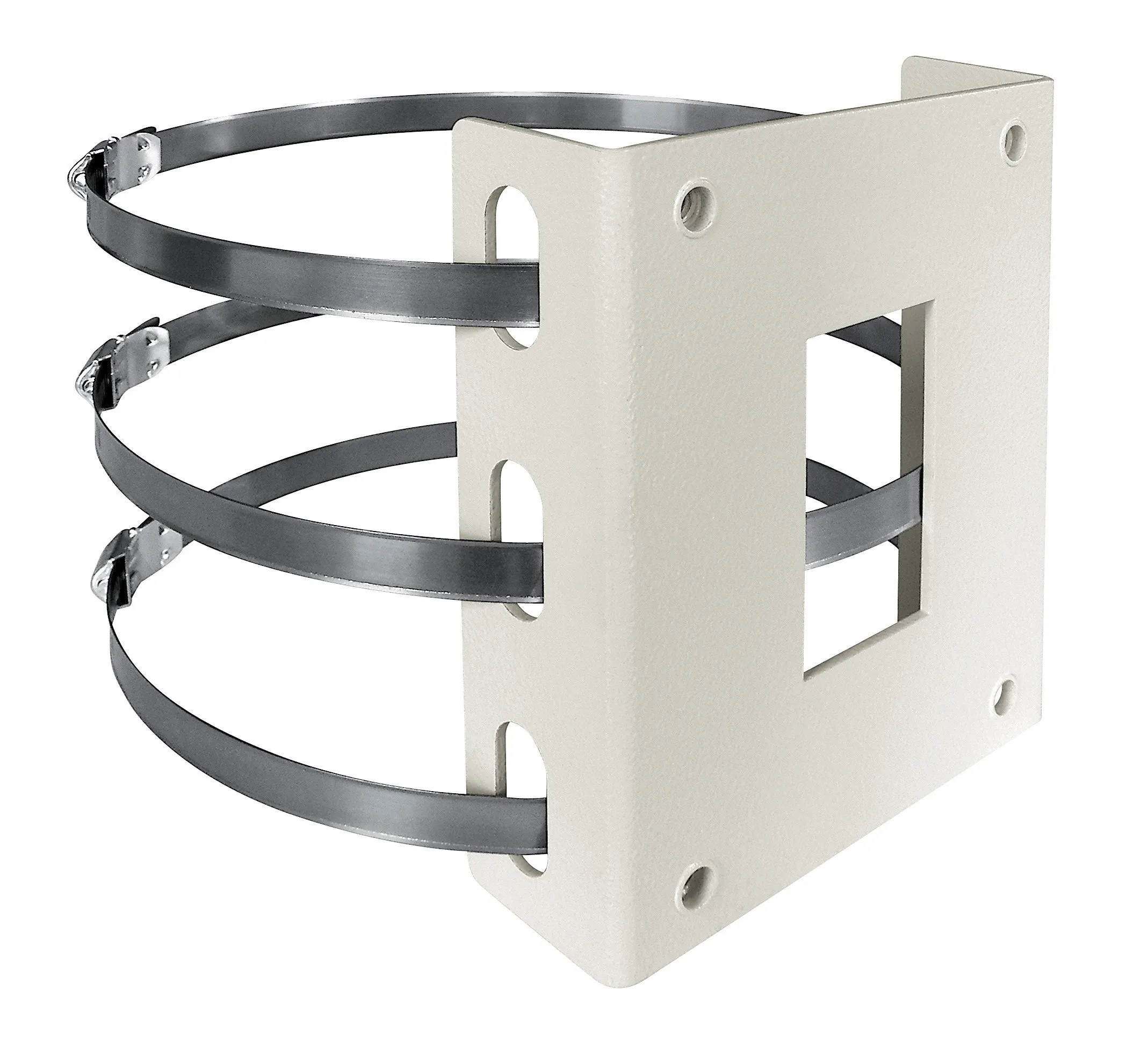

Pole mount adapter, (Ø 8.2", max 8.9") for outdoor enclosure: SHB-V-3200HPR. Note: The SHB-V-WCPA is also needed for pole mount installation.
Features:
- Pole mount adapter, (Ø 8.2", max 8.9") for outdoor enclosure SHB-V-3200HPR.
- Constructed from steel and epoxy-polyester powder painted, color RAL9002.
- Note: The SHB-V-WCPA is also needed for pole mount installation.
| TECHNICAL DATA |
| MECHANICAL |
| Made of steel |
| For pole diameters: from 210mm (8.3in) up to 225mm (8.8in) |
| Load rating: 25kg (55lb) (static load) |
| To be combined with the Conduit adapter/reinforcing support plate SHB-V-WCPA |
| Unit weight: 1.2kg (2.6lb) |
