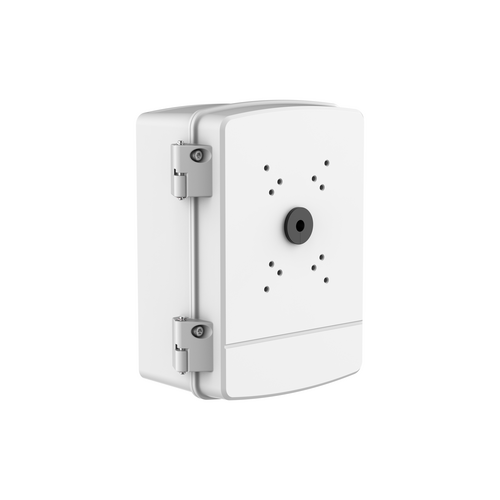

Luminys - P55/P54/P45-D01 - Power Box for Select P55/P54/P45 Series PTZ Camera Models
Part number:
P55/P54/P45-D01
Price:
Power Box for P55/P54/P45 Series PTZ
Features:
- Aluminum Alloy and SECC Construction
- Max. Load Capacity: 17.6 lb (8.0 kg)
- Compatible With Wall, Corner, and Pole Mounts
- IP66 Rating
| Specifications | |
| Weight | 3.4 kg (7.5 lb) |
| Load Bearing Capacity | 8.0 kg (17.6 lb) |
| Material | Aluminum Alloy and SECC |
| Color | White |
| Dimensions | Φ60.8mm x 49.0mm (Φ2.4 in. x 1.9 in.) |
| Thread Size | G1/2 in. |
| IP Rating | IP66 |
| Operating Temperature | –40 °C to 60 °C (–40 °F to +140 °F) < 90% (RH) |
| Storage Temperature | –40 °C to 60 °C (–40 °F to +140 °F) 10% to 90% (RH) |
Name
Description
Size
Downloads
File
Datasheet
0.1mb
