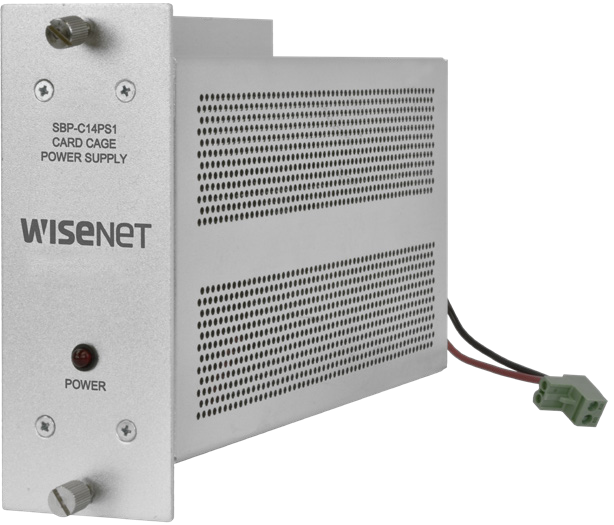

Hanwha - SBP-C14PS1 - 90-264 VAC 50/60hz power supply for SBP-C14
Part number:
SBP-C14PS1
Price:
The SBP-C14PS1 integral 115/230 VAC power supply for the SBP-C14 card cage provides for the elimination of a single-point failure in the event of a major fault within any module located within the SBP-C14 chassis rack, through the use of automatic electronic current limiting within each rack-mountable module. In the SBP-C14PS1 design only the faulty module shuts down, and the operation of the other modules within the rack continue unimpaired. This automatic current limiting feature is also self-resetting, should the fault or overload be of a temporary or intermittent condition.
Features:
- Automatic electronic current limiting feature
- Modular design for easy replacement
| Electrical | |
| Input Voltage | 90-264 VAC @ 70 W Maximum |
| Output Voltage | 9 VDC +/- 5% @ 6.5 Amps @ 75˚C |
| Fusing | 1.25 A slow blow 5x20mm (rack power supply) Plug-in modules individually electronically fused. Each power supply unit is individually fused |
| Power Indicator | Red LED |
| AC Line Cord | Detachable, IEC-connected. Allows easy field replacement or exchange for various worldwide AC power plug configurations. |
| Environmental | |
| MTBF | >100,000 hours |
| Operating Temp | -40˚ C to +75˚ C |
| Storage Temp | -40˚ C to +85˚ C |
| Heat Generation | 240 BTU |
