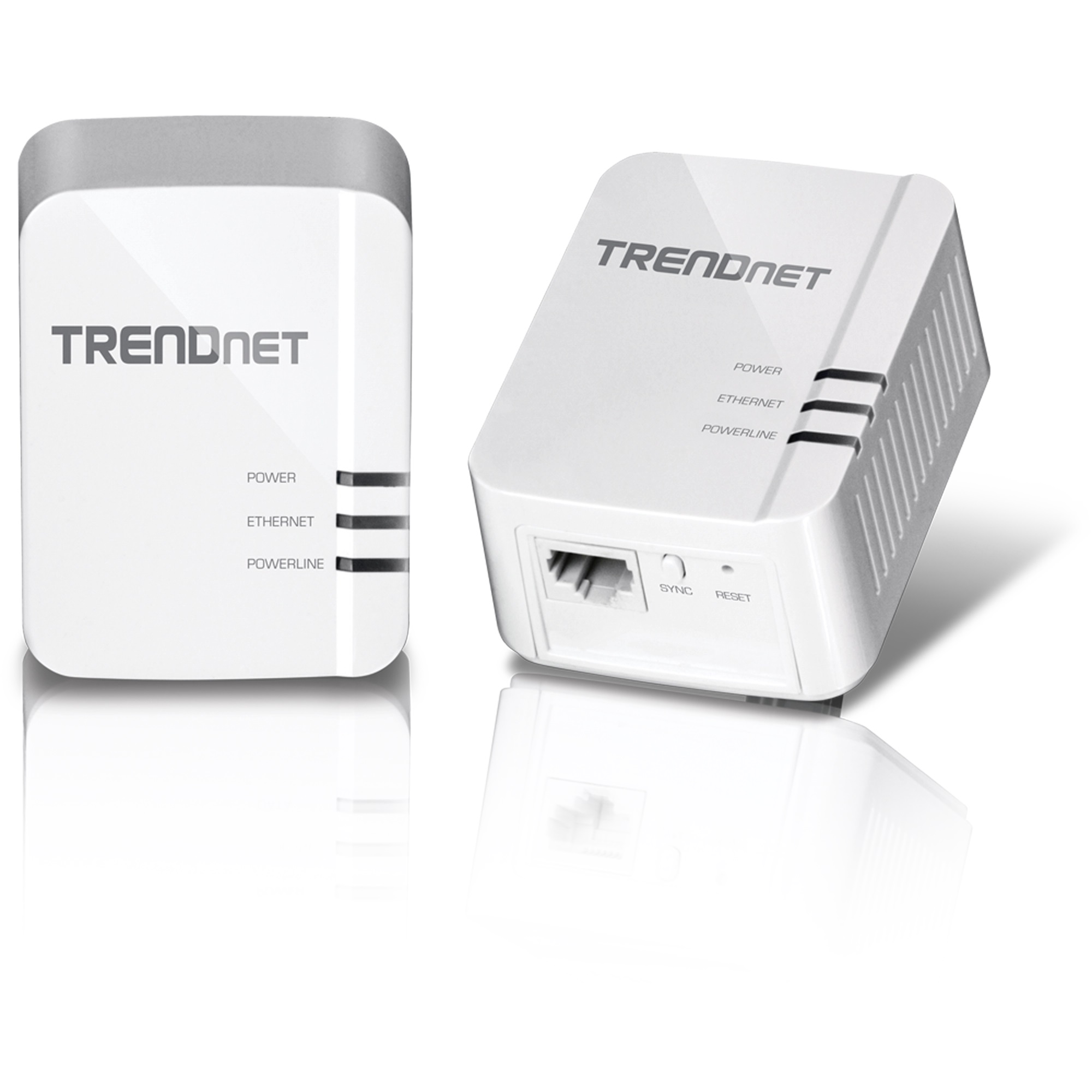

Trendnet - TPL-422E2K - Powerline 1300 AV2 Adapter Kit
Part number:
TPL-422E2K
Price:

TRENDnet's Powerline 1300 AV2 Adapter Kit, model TPL-422E2K, comes with two Powerline adapters to create a high-speed Powerline 1300 network using your home's existing electrical system. Two adapters are needed to start a network. TRENDnet adapters are protected with 128-bit AES Encryption. Plug in the first adapter and network it to your existing router. Plug in other adapters on the same electrical system and they auto-connect to the first adapter for instant internet access.



Features:

  • Includes two TPL-422E adapters
  • Powerline 1300 networking over existing electrical lines
  • Enhanced Powerline performance and range from MIMO with Beamforming technology
  • Encrypted TRENDnet adapters auto-connect out of the box
  • Gigabit port for high-speed connectivity
  • Powerline range up to 300m (984 ft.)
  • Two Powerline adapters are required to start a network
  • Cross compatible with Powerline 1200, 600, 500, and 200 adapters
  • NDAA compliant
Standards
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 1901
  • IEEE 1905.1
Device Interface
  • 1 x Gigabit LAN port
  • Sync button
  • Reset button
  • LED indicators
Power plug
  • North America Type B (NEMA 5–15)
Frequency Band
  • 2 – 67.5MHz
Modulation/Protocol
  • OFDM, 4096/1024/256/64/16/8-QAM, QPSK, BPSK, ROBO, HS-ROBO, Mini-ROBO
  • CSMA/CA
Data PHY Rate
  • Up to 1300Mbps
Networking Distance
  • Powerline: Up to 300m (980ft.) linear distance over electrical power lines***
Encryption
  • 128-Bit AES (Advanced Encryption Standard)
Powerline Nodes
  • Up to 8 (max.)
Overlapping Powerline Networks
  • Up to 4 (per electrical system)
Special Features
  • Auto-connects to other TRENDnet Powerline adapters
  • IPv6 support
  • IGMP / MLDv2 Streams
Optional Utility: OS Compatibility
  • Windows® 10, 8.1, 8, 7, Vista, XP
Power
  • Input: 100 - 240V AC, 50-60Hz
  • Consumption: Active mode: 4W (max.); Standby mode: 0.5W (max.)
Operating Temperature
  • 0 – 50°C (32 – 122°F)
Operating Humidity
  • Max. 90 % non-condensing
Certifications
  • FCC
  • IC
  • ETL
Dimensions
  • 58 x 77 x 65 mm (2.3 x 3.0 x 2.6 in.)
Weight
  • 108g (3.8 oz.)
Warranty:
  • 3 year

PACKAGE CONTENTS

  • 2 x TPL-422E
  • Quick Installation Guide
  • CD-ROM (Utility & User's Guide)
  • 2 x Network cable (1.5 m/5 ft.)
