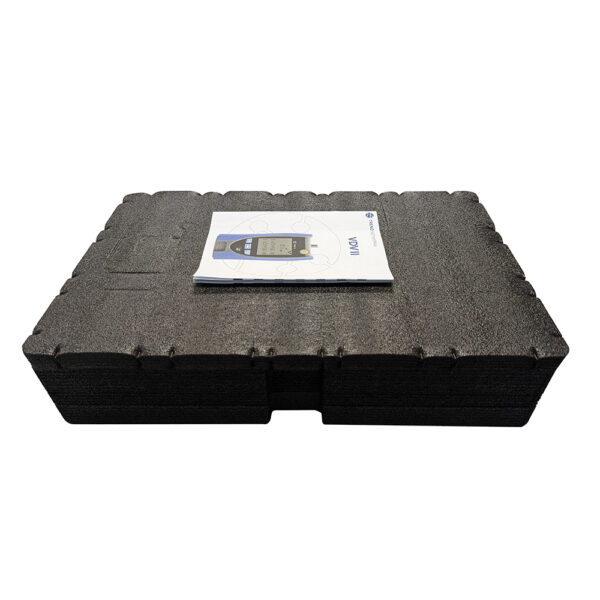

Simply 45 - S45-PSKMP1NC - PROSeries Loaded Kaizen Foam Inserts for Milwaukee Packout, Includes all products - Designed to fit Milwaukee Case (48-22-4450), not included
Part number:
S45-PSKMP1NC
Price:
Simply45 Category Cable Termination Kit with Customized Milwaukee Foam Insert (Case NOT Included)
For kit with the Milwaukee Packout case, please see S45-PSKMP1

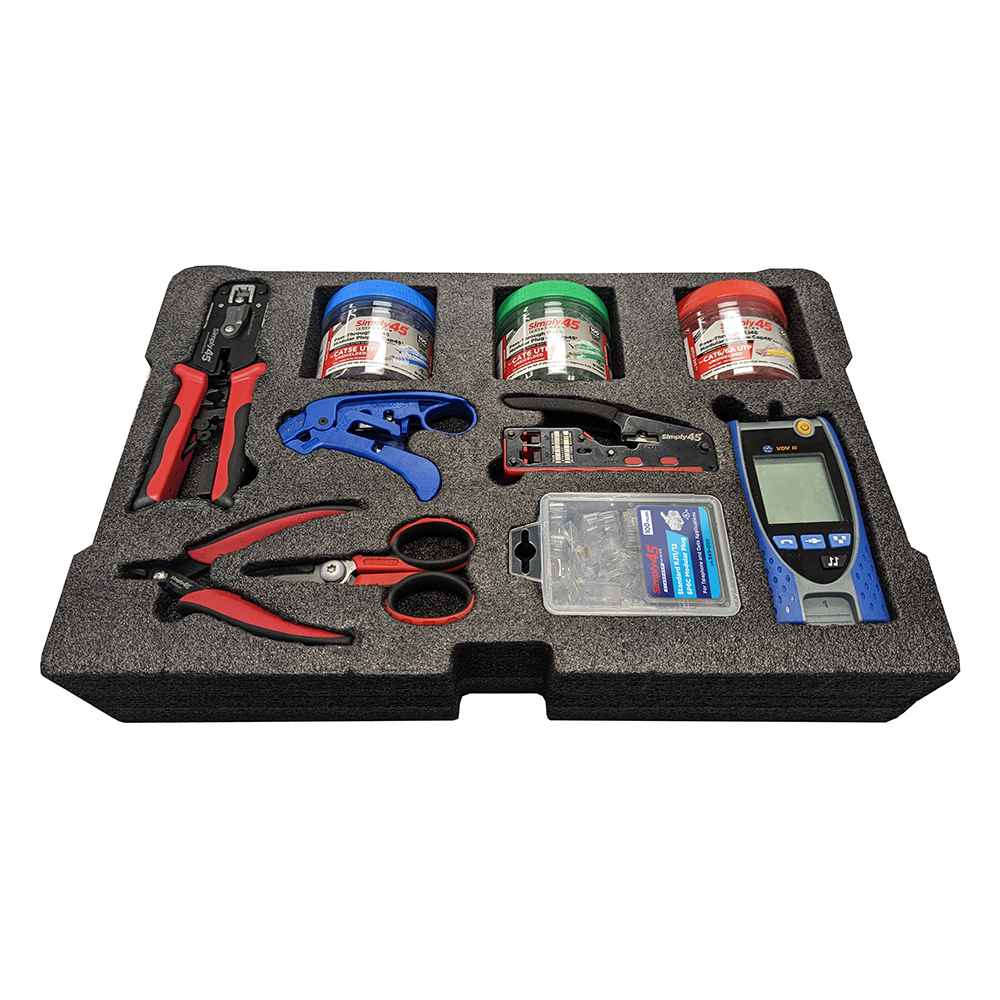

Simply45 ProSeries Category Cable Termination Kit Includes:
- S45-1500P – ProSeries Pass Through RJ45 Blue Tint – Cat5e UTP with Cap45 – 100pc Jar
- S45-1600P – ProSeries Pass Through RJ45 Green Tint – Cat6 UTP with Cap45 – 100pc Jar
- S45-1700P – ProSeries Pass Through RJ45, Red Tint – Cat6/6a UTP with Cap45 – 100pc Jar
- S45-0111 – Standard RJ11/RJ12 Modular Plugs, Clear Tint – 100PC/Clamshell
- S45-C101 – ProSeries Heavy Duty RJ45 Crimp Tool for all S45 brand UTP & STP RJ45 Plugs
- S45-C110 – Dual Cavity Crimp Tool for STP/UTP Standard & Pass-Through RJ45 and RJ11 Plugs
- S45-801 – 5″ Premium Flush Cutter Tool up To 18AWG
- S45-810 – ProSeries 5 1/2″ Electrician Scissor with Stainless Steel Blade and Serrated Teeth
- S45-S01BL – Adjustable Cat7a/6a/6/5e UTP/STP Stripper – Blue – 1Ea/Blister
- ST-158000 – VDV II Voice, Data and Video Cable Verifier with Wiremap
| Category Type | Cat5e & Cat6 |
| Connector Style | Pass Through with Cap45 |
| Wire Alignment | Hi/Lo Stagger (Cat6a), Straight Insert (Cat5e & Cat6) |
| Cable Type | UTP |
| AWG | 23AWG Solid |
| Conductor Range | 0.95 – 1.05mm (0.037″ – 0.041″), 1.05mm - 1.20mm (0.041″-0.047") |
| Max Cable OD | 7.0mm (0.276″), 7.4mm (0.291″) |
| Plug Material | Polycarbonate |
| Material Rating | UL94 V0 Commercial (Plenum, LSZH) Rated |
| Plug Color | Blue Tint Cat5e, Green Tint Cat6 & Red Tint Cat6a |
| Contact Design | 3 Prong Style |
| Contact Material | Phosphor Bronze |
| Base Contact Plating | 100µ of nickel plating |
| Surface Contact Plating | 50µ 24ct Gold |
| UL & cUL Listed | E520614 |
| Connector Quantity | 100 pieces Cat5e, 100 pieces Cat6, 100 pieces Cat6a |
| Compliant | TAA, P65 |
| HDBaseT | Approved |
| Packaging Type | Boxed |
| Kit Contents | |
| Crimper | S45-C101 |
| Crimper | S45-C110 |
| Stripper | S45-S01BL |
| Flush Cutter | S45-801 |
| Scissor | S45-810 |
| Connectors | S45-1500P |
| Connectors | S45-1600P |
| Connectors | S45-1700P |
| Connectors | S45-0111 |
| Tester | ST-158007 |
| Milwaukee Packout Case | 48-22-8450 (Not Included) |
