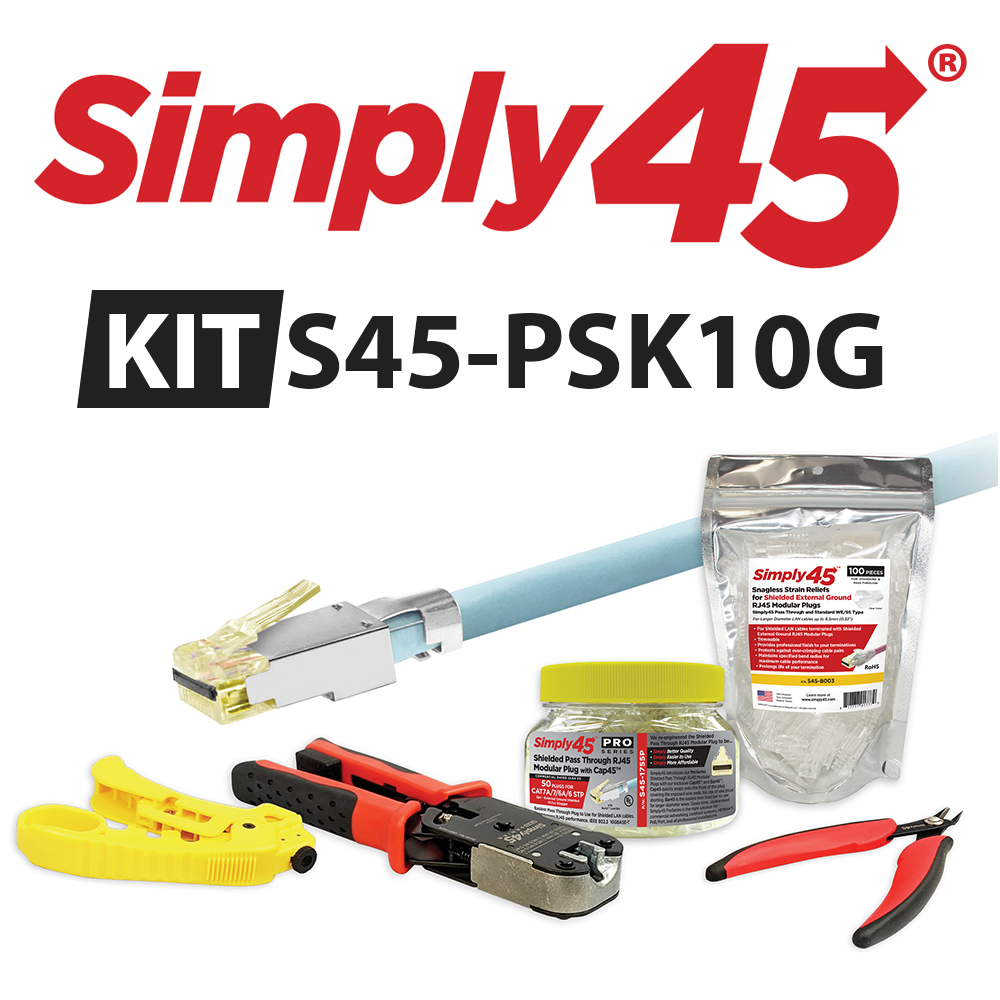

Simply 45 - S45-PSK10G - PROSeries Pass Through 10G STP Starter Kit, 1ea (S45-1755P, S45-C101, S45-801, S45-S01YL & S45-B003) - Boxed
Part number:
S45-PSK10G
Price:
Model Number: S45-PSK10G
ProSeries – 10G STP Starter Kit (Cap45 & Bar45)
| Category Type | Cat6a/7/7a/10G |
| Connector Style | Pass Through with Cap45 |
| Wire Alignment | Hi/Lo Stagger, Sled Style Load Bar |
| Cable Type | STP |
| AWG | 23AWG Solid |
| Conductor Range | 1.15mm-1.35mm (0.045″-0.053″) |
| Max Cable OD | 8.0mm (0.315″) |
| Plug Material | Polycarbonate |
| Material Rating | UL94 V0 Commercial (Plenum, LSZH) Rated |
| Plug Color | Yellow Tint |
| Contact Design | 3 Prong Style |
| Contact Material | Phosphor Bronze |
| Base Contact Plating | 100µ of nickel plating |
| Surface Contact Plating | 50µ 24ct Gold |
| UL & cUL Listed | E520614 |
| Connector Quantity | 50 pieces |
| Metal Shell Quantity | 50 pieces |
| Cap45 Quantity | 55 pieces |
| Bar45 Quantity | 50 pieces |
| Compliant | TAA, P65 |
| HDBaseT | Approved |
| Packaging Type | Boxed |
| Kit Contents | |
| Crimper | S45-C101 |
| Stripper | S45-S01YL |
| Flush Cutter | S45-801 |
| Connectors | S45-1755P |
| Strain Relief Boots | S45-B003 |
Name
Description
Size
Downloads
File
Connector Selector Guide
0.2mb
