Simply45 ProSeries hybrid connectors feature our patented Cap45. The ProSeries connector provides the convenience of a pass-through style with the security of a standard modular plug. Simply45 only uses the highest quality materials to ensure reliable results and will greatly reduce truck rollbacks. Our connectors are commercially rated and feature a 3-prong style contact designed for all PoE applications, making Simply45 ProSeries the most reliable terminations on the market today.

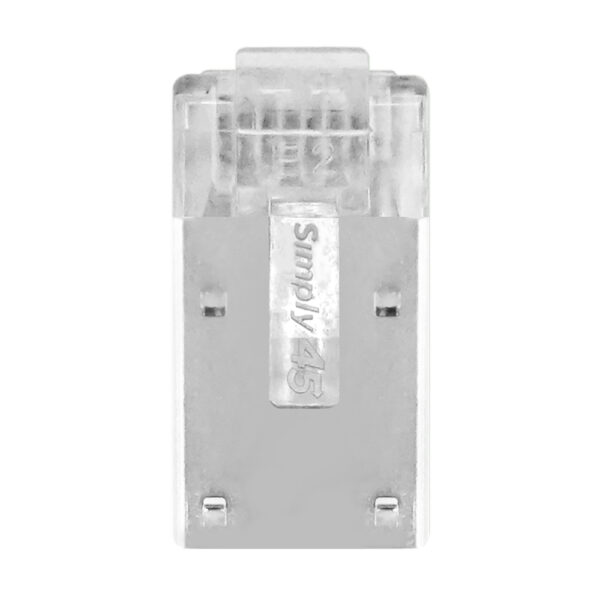

Simply45 ProSeries Shielded Internal Ground Pass Through RJ45 Modular Plug with Cap45 for 24AWG Solid (Cat5e STP), 28-26AWG Stranded (Cat5e/6/6a STP), Wire Conductors 0.95 – 1.05mm/ 0.037″ – 0.041″, Max Cable OD 6.5mm/0.255″, UL94 V0 Commercial Rated, Blue Tint- 50pcs/Clamshell.
| Part Number | S45-1550P |
| Category Type | Cat5e |
| Connector Style | Pass Through with Cap45 |
| Wire Alignment | Straight Insert |
| Cable Type | STP |
| AWG | 24AWG Solid , 28-26AWG Stranded. |
| Conductor Range | 0.95 – 1.05mm (0.037″ – 0.041″) |
| Max Cable OD | 6.5mm (0.255″) |
| Plug Material | Polycarbonate |
| Material Rating | UL94 V0 Commercial (Plenum, LSZH) Rated |
| Plug Color | Blue Tint |
| Patent Number | 10,811,831 B1 |
| Contact Design | 3 Prong Style |
| Contact Material | Phosphor Bronze |
| Base Contact Plating | 100µ of nickel plating |
| Surface Contact Plating | 50µ 24ct Gold |
| UL & cUL Listed | E520614 |
| Compliant | TAA, P65 |
| HDBaseT | Approved |

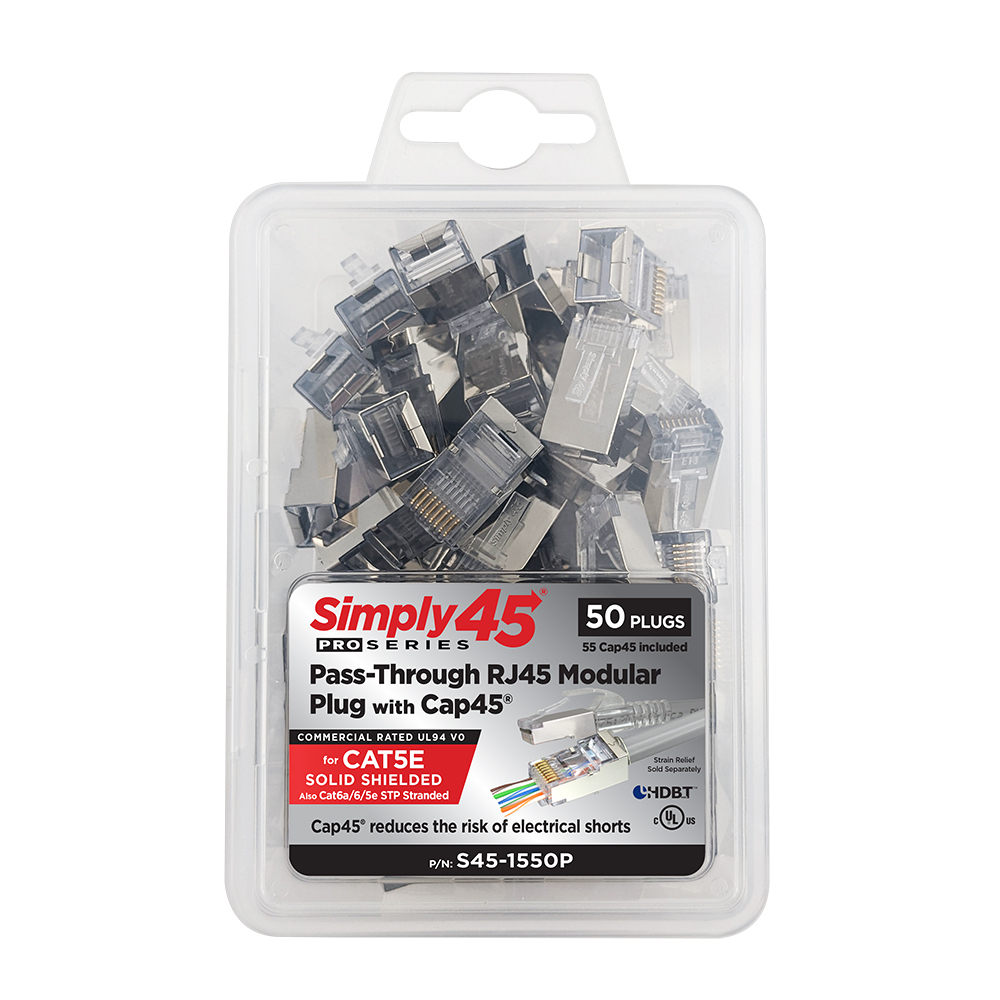

| Packaging Type | Resealable Clam Pack |
| Connector Quantity | 50 pieces |
| Cap45 Quantity | 55 pieces |
