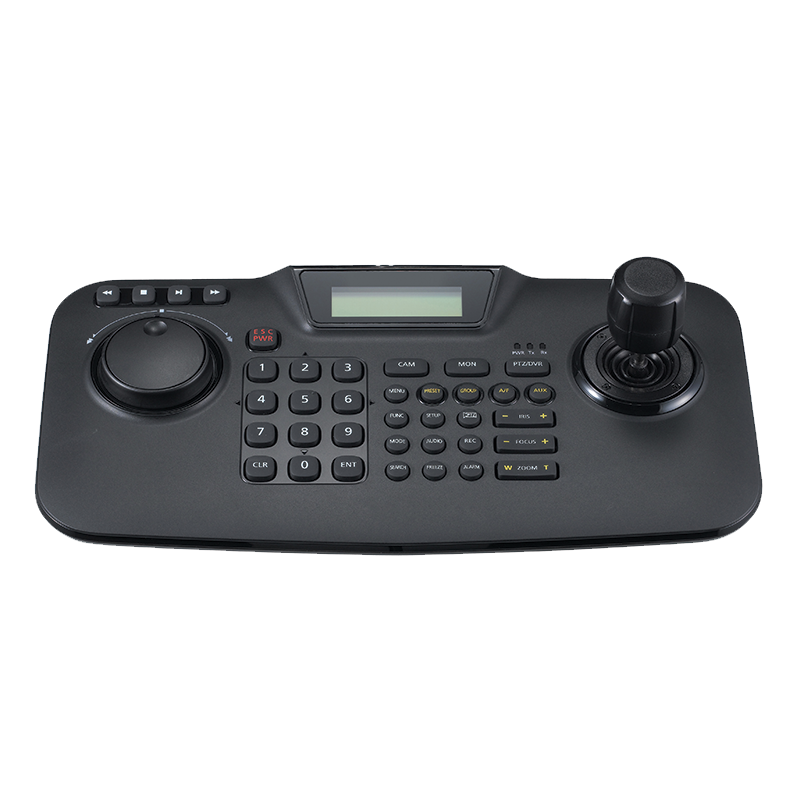

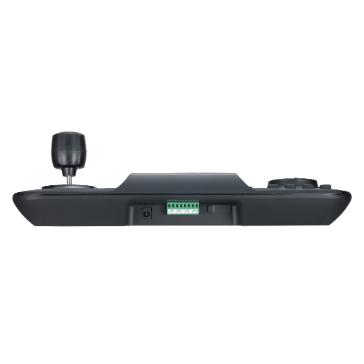

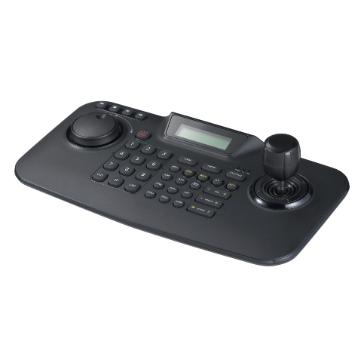

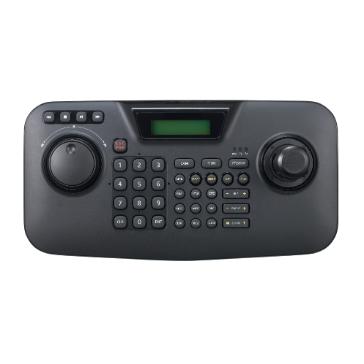

Hanwha - SPC-2010 - Controller, 3D joystick, 2 line text LCD display, built-in jog shuttle, up to 255 PTZ/zoom cameras, RS-485, DVR, supports Multi-protocol
Part number:
SPC-2010
Price:
3D Joystick Controller, 2 Line Text LCD Display, Built-in Jog Shuttle, Up to 255 PTZ/zoom Cameras, RS-485, DVR, Supports Multi-protocol
Features:
- Controls up to 255 PTZ cameras + DVR
- Superior system compatibility
- OSD Menu, 3D joystick control
- Built-in jog shuttle
- RS-485 and RS-422 compatibility
- 16 x 2 Character LCD display
| COMMUNICATION | ||
| Interface | RS-485/422 | |
| Baud Rate | 2 ,400 ~ 57,600bps | |
| Control Equipment | PTZ/DVR/Receive | |
| Protocol | PTZ Camera | Samsung-T/E, Pelco-D/P, Panasonic, Vicon, AD, Honeywell , Bosch, Elmo, GE |
Zoom Camera | SCZ series | |
| DVR | SRD series(except SRD-480D) | |
| Receiver | Samsung-T(SRX-100B) | |
| OPERATIONAL | ||
| LCD display | 16 x 2 character LCD, English |
| Joystick | 3 Axis twist Zoom |
| Jog shuttle | DVR Play back control |
| ENVIRONMENTAL |
| Operating Temperature | 0 ˚C~ 40 ˚C |
| Operating Humidity | 0 ~90% |
| ELECTRICAL | |
| Input Voltage | 12 V DC |
| Power Consumption | 1.1 W |
| MECHANICAL | |
| Dimension(WxHxD) | 334.1 x 171.1 x 105.2 mm (13.15"x 6.74" x 4.14" ) |
| Weight | 800 g (1.76lb ) |
