ELK - P1216 - Pwr Supply; 1.5A, 12VDC Wall Plug-in
Part number:
P1216
Price:

ELK-P1216 (1.5 Amp)

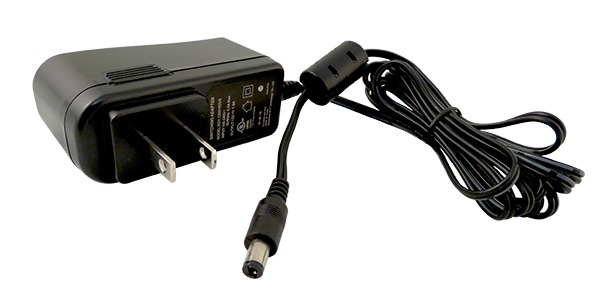

The ELK-P1216 is a general purpose 12 Volts D.C. Switching Plug-In Power Supply. It is ideal for alarm, access control, and CCTV applications requiring up to 1.5 Amps. The power pack plugs into 100 to 120 volts A.C., and supplies regulated 12 volts D.C. to a standard 2.1mm power plug.



Features:

  • Switching Power Supply
  • Regulated 12VDC Output
  • Six foot cord and standard 2.1mm x 5.5mm x 9mm plug (plug center is positive)
  • Slimline Design
  • UL Listed
  • RoHS Compliant
  • Efficiency Level: IV
  • Lifetime Limited Warranty
DC Output Voltage12 Volts DC
Current Rating1.5 Amps
AC Input Voltage Range100 -120 @ 47~63Hz
Size1.75"H x 1.375"W x 2.75"D
