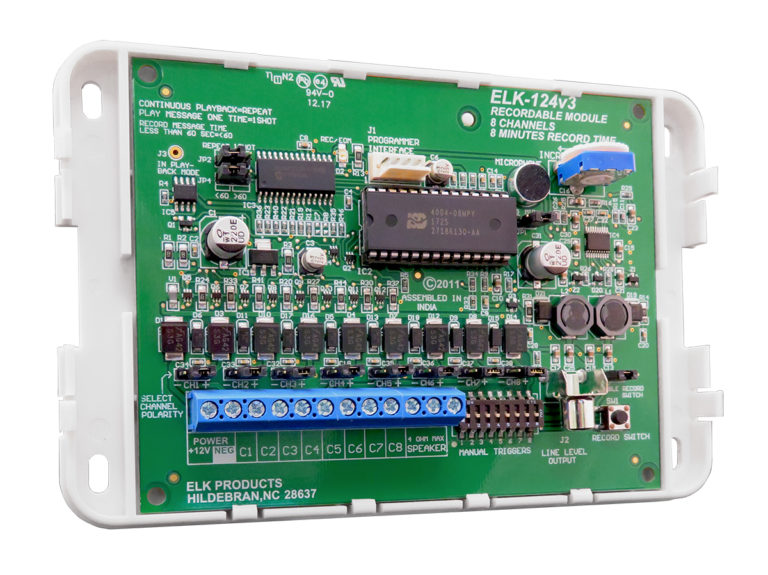

ELK - 124 - Recordable Annunciator with Enclosure; 8 Minutes, 8 Channels
- • Eight Channels of Recordable Voice/Music
- • Maximum record time is 8 minutes which may be divided between the number of channels required
- • Recordings are stored in non-volatile memory
- • Each channel selectable for "+" or "-" triggering
- • Each channel will accept a momentary trigger
- • Continuous playback or "One Shot" settings
- • Built-in condenser microphone for recording
- • Adjustable speaker volume and current draw
- • Powerful 24 watt audio amplifier for Speakers
- • Line Level Output for Amplifiers and Paging Systems
- • PC sound card interface connector
- • Mounted inside ELK-PB1 plastic enclosure
• Included: ELK-124 - 8 Channel Recordable Module, Plastic Housing, 4 plastic wall anchors and 4 #6 pan head sheet metal screws, Instructions
| Operating Voltage | 11 to 14 Volts DC |
| Current Draw | .2 to 2 Amps, (depends on volume setting and speaker loading) |
| Sound Level | 122 db @ 1 meter, 14 vdc |
| Max. Speaker Loading | 4 Ohms |
| Max. Message Length | 1 minute per channel or 8 minutes for a combined single channel |
| Enclosure Size | 6.5" W x 4.375"H x 2"D, White Plastic |
The ELK-124 is an eight-channel recordable voice module. Ideal for applications such as telephone on-hold announcements, security and access control warnings, and museum narrations, it can also be used for many other purposes. Each channel can hold up to one minute of recorded voice and/or music, with a total recording time of eight minutes. Recording is quick and easy using the built-in microphone and push-to-record button. A line-level output jack allows connection to external amplifiers, audio equipment and paging systems. Convenient channel activation switches allow you to play each channel once or repeat it endlessly. The optional ELK-129 can be used to download .WAV files from a PC to the ELK-124. The ELK-120 is also available, offering voice and siren channels.
