PDK - RCNEW - Red CloudNode Ethernet+WiMAC

Product Overview

The PDK Red CloudNode is a cloud-managed access control controller with built-in Ethernet self-discovery and WiMAC wireless connectivity (2.4 GHz/802.15.4). It includes an onboard power supply, a fully supervised power circuit, and can function as a single-door controller. The unit features a 2A Form-C relay, reader interface, Input A and Input B connections, and removable screw-down terminals for field wiring.


Key Configuration

• • Door control: Functions as the main controller for multi-door systems or a standalone single-door controller
• • Wireless: WiMAC (2.4 GHz/802.15.4), AES 128-bit encryption, 1 mile LoS / 450ft indoor average
• • Wired communication: Ethernet (self-discoverable)
• • Form-C relay: 1 × industrial-grade 2A relay (single door)
• • Inputs: 1 × Input A, 1 × Input B
• • Power: 12V-24V DC input; includes 14VDC 2A (28W) Class 2 wall-wart; 200mA idle draw; 2A total peripheral output at 12V

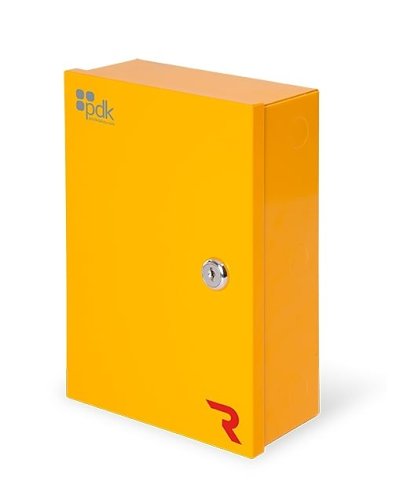

• • Enclosure: Lockable metal security can, 7.625" x 10.4375" x 3", indoor use

Key Features

CloudNode acts as a main controller for both standalone and multi-door access control systems. It supports automatic over-the-air updates for ongoing security and feature improvements, and is managed through the PDK.io cloud platform from any internet-connected device. WiMAC wireless allows daisy-chaining of additional Red controllers without Ethernet cabling, while Ethernet self-discovery removes the need for manual IP setup. The onboard power system provides full supervision of voltage, current, battery, and controller health, and OSDP ensures secure reader communication.

Installation Notes

Lockable indoor metal enclosure (7.625" × 10.4375" × 3"), powered by 12–24V DC with included 14VDC 2A supply. Supports Ethernet self-discovery and WiMAC wireless (up to 1 mile LoS / 450 ft indoor) for multi-controller linking. Works as standalone or main multi-door controller, requires backup battery for UL 294 compliance, and includes 1–5 year warranty.
