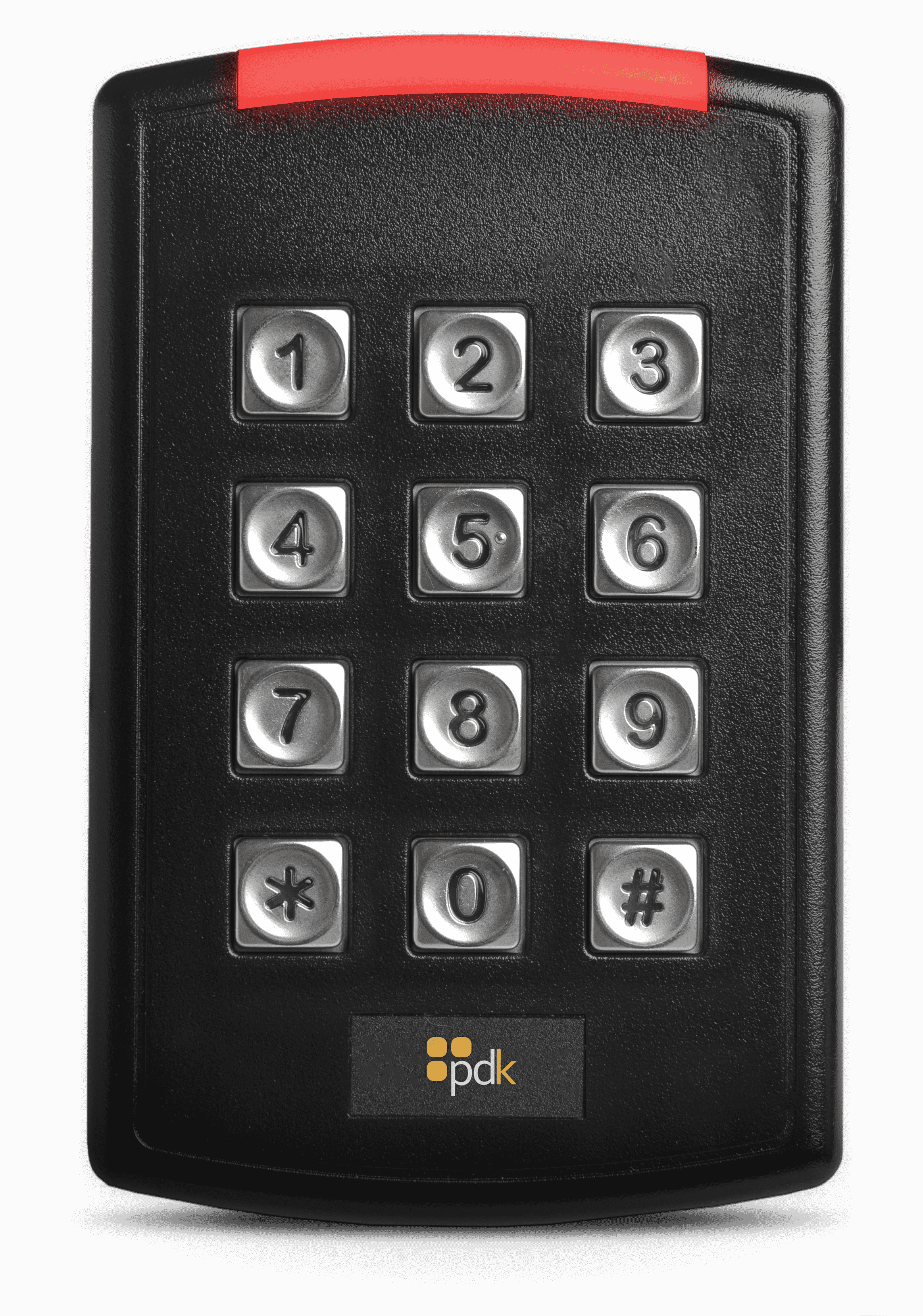

PDK - RKPB - Red Keypad Reader High Security + Prox + Mobile
Part number:
RKPB
Price:
Multi-Technology, High-Security (13.56 MHz), Prox (125 KHz), Mobile (BLE), OSDP, Weigand, Keypad Reader
ProdataKey’s Red Readers are in a class of their own, with OSDP secure connectivity, high (13.56MHz) and low-frequency (125 kHz) communication, and mobile-ready options. Red Readers are now one of the most secure and versatile readers on the market today, handling every application, from your daily install to the most secure implementation.
| Specifications | |
RF Technologies High-Security(13.56 MHz) High-Security + Prox High-Security + Mobile High-Sec + Prox + Mobile | Part Number RK RKP RKB RKPB |
| Read Range | 125 kHz up to 4” |
| Output | OSDP and Wiegand protocol |
| Encryption | MIFARE® DESFire® EV2 |
| Cable Distance | OSDP - 1000’ or Wiegand - 500’ (22AWG) |
| Temperature | -31º ~ +150º F or -35º ~ +66ºC |
| Humidity | 0 - 95% non-condensing |
| Protection Rating | IP55 |
| Power | 5 - 16V DC (Linear power supply recommended) |
| Average Amperage | 143 mA |
| Max Amperage | 193 mA |
| Dimensions | 3.25” x 5.1” x 0.71” |
| Weight | 11.3 oz |
Name
Description
Size
Downloads
File
Datasheet
2mb
