ELK - M1RB - Relay Board, 8 form C, Connects to M1, M1XOVR, or M1XOV

Product Overview

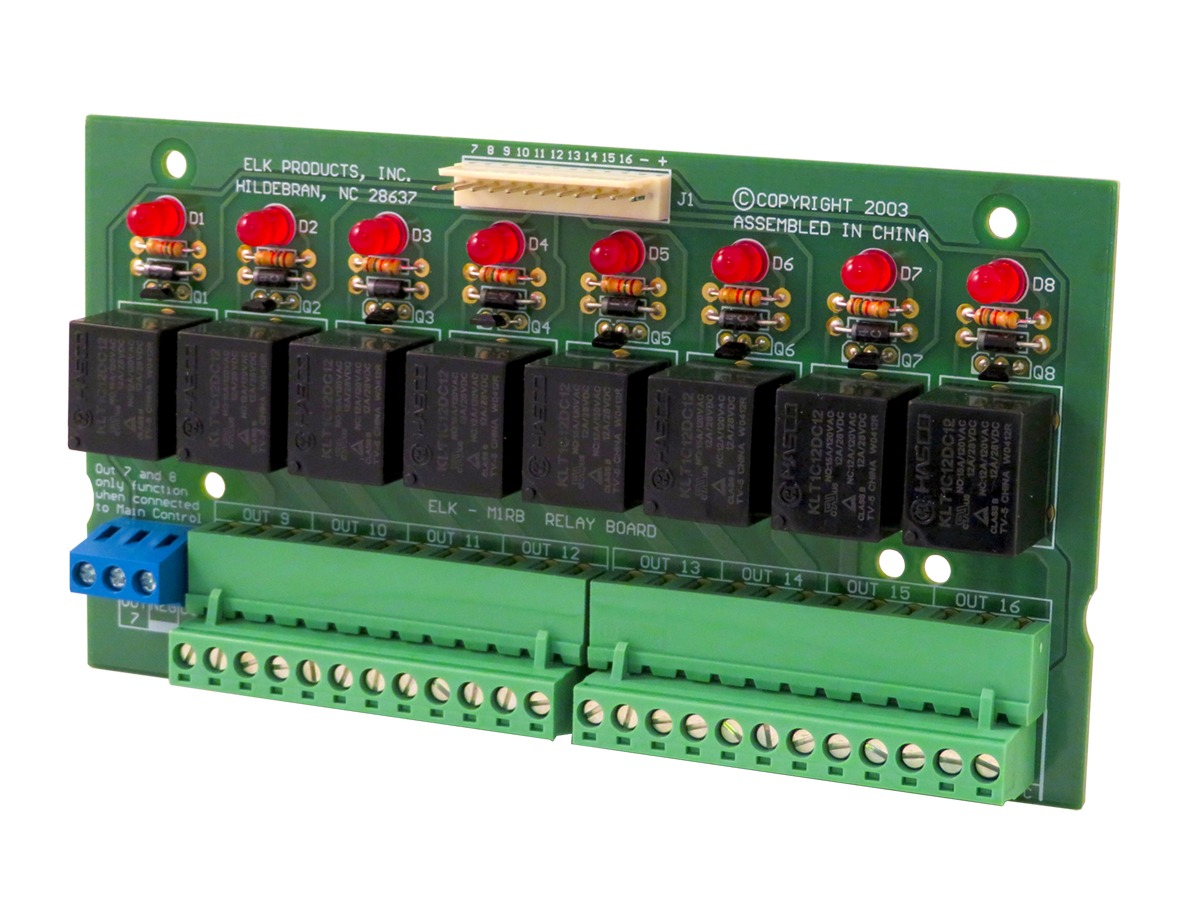

The ELK-M1RB is a relay board with 8 Form C (SPDT) dry contact relays that can be plugged directly into an M1G, M1EZ8, M1XOV, or M1XOVR to convert voltage outputs into relays rated for 7A @ 30 VDC or 10A @ 125 VAC. It features plug-in removable terminal blocks, LED status indicators on all 8 relays, and diode protection across each relay coil.

Key Configuration

• • Relay contacts: 8 Form C SPDT relays, 7A @ 28 VDC, 10A @ 125 VAC
• • Operating voltage: 12 Volts DC nominal
• • Current draw: 0 mA idle, 250 mA max
• • Wire harness length: 24" (12-conductor plug-in)
• • Dimensions: 6" × 3.25" × 0.75" H

Key Features

This versatile module features 8 heavy-duty Form C relays with SPDT dry contacts, ideal for general-purpose switching with minimal current draw. It is designed for easy maintenance via plug-in removable terminal blocks and includes LED indicators for real-time status monitoring of each relay. The kit comes complete with diode-protected coils for circuit safety, mounting glides for enclosure installation, a 12-conductor cable assembly, and adhesive tape for flexible setup.
