ELK - 924 - Sensitive Relay DPDT 12 or 24 VDC with 1.2 mA Trigger

Product Overview

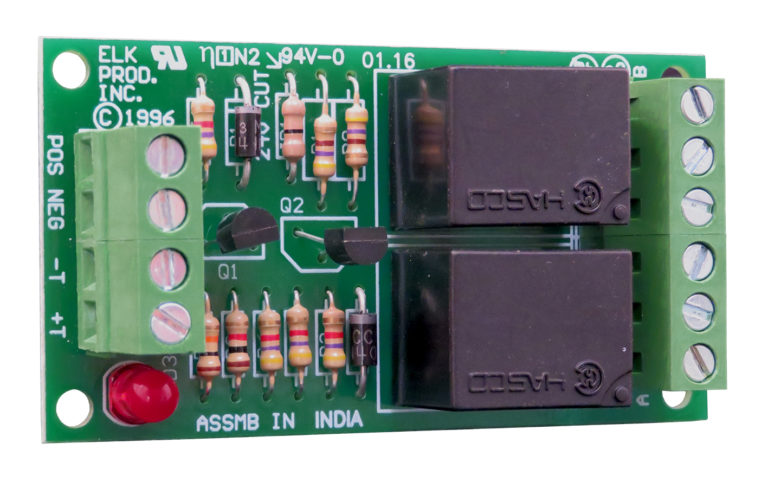

The ELK-924 Sensitive Relay module features DPDT (Form C) dry contacts for general-purpose switching of devices or high-current loads. It operates on 12 or 24 volts DC (jumper-selectable) and can be triggered by a negative or positive input at an incredibly low trigger current of only 1.2 mA. The relay contacts are rated at 7A @ 30 VDC or 10A @ 125 VAC.

Key Configuration

• • Operating voltage: 12 or 24 Volts DC (jumper selectable)
• • Current draw: 60 mA (both relays on)
• • Relay contacts: DPDT Form C, 7A @ 30VDC, 10A @ 125VAC
• • Trigger voltage: 5 – 24 VDC; trigger current: 1.2 mA @ 12 VDC
• • Dimensions: 1.5" × 2.75"; mounts in standard 2.75" snap track

Key Features

Super low 1.2 mA trigger current. Positive (+) or negative (-) trigger input. Double Form C contacts (DPDT). Heavy-duty contact rating. On-board LED status indicator. Includes double-sided mounting tape. Packaged in reusable poly storage box. Also available in a 4-pack (ELK-9244) on a pre-scored break-off circuit board. Lifetime limited warranty.
