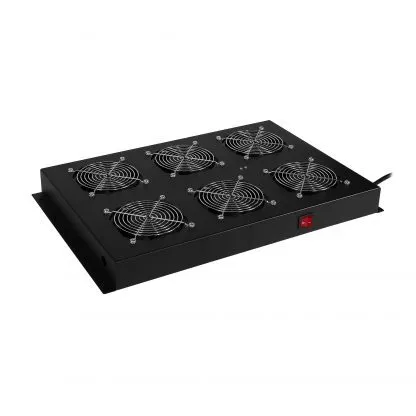

Cyber Power - CRA12001 - Roof-mounted Fan Panel, 6x 208/240Vac Fans, for 42" to 47" (1070mm-1200mm) Deep Enclosures, 480 CFM, 2 Year Warranty
Part number:
CRA12001
Price:
The CRA12001 Carbon Rack Fan improves ventilation in rack enclosures. The fan panel has (6) 208 Vac high performance fans and a 6.5 ft power cord with IEC-320 C14 plug. Mounting hardware is included. The CRA12001 is covered by a 2-year limited warranty. Compatible with CyberPower Rack Enclosures CR42U11001 and CR24U11001.
Features:
- Fan Type: Roof mounted
- Number of Fans: 6
- Operating Voltage: 208 Vac
- Air Flow: 480 (CFM)
- Warranty: 2-Year Limited
| Input | |
| Cord Length | 6.5 ft (2.0 m) |
| Input Frequency Range | 50 Hz – 60 Hz |
| Input Plug Type | IEC-320 C14 |
| Nominal Input Voltage | 208 – 240 VAC |
| Power Cord Length | 6.5 ft (2 m) |
| Power Switch | Lighted On/Off |
| Output | |
| USB Charge Port | No |
| Performance | |
| Air Flow (CFM) | 480 CFM |
| Physical | |
| Color | Black |
| Installation | Hardware Included |
| Material of Construction | Metal |
| Number of Fans | 6 |
| Dimensions | |
| Physical Dimensions – (WxHxD) (cm) | 35.0 x 5.11 x 56.01 (cm) |
| Physical Dimensions – (WxHxD) (in) | 13.78 x 2.01 x 22.05 (in) |
| Physical Dimensions – (WxHxD) (mm) | 350 x 51 x 560 (mm) |
| Physical Weight (kg) | 5.72 |
| Physical Weight (lb) | 12.6 |
| Dimensions – Shipping | |
| Shipping – Weight (kg) | 10.89 |
| Shipping – Weight (lb) | 24.0 |
| Shipping Dimensions – (WxHxD) (cm) | 38.1 x 7.62 x 59.06 (cm) |
| Shipping Dimensions – (WxHxD) (in) | 15.0 x 3.0 x 23.25 (in) |
| Shipping Dimensions – (WxHxD) (mm) | 381.0 x 76.2 x 590.55 (mm) |
| Environmental | |
| Audible noise at 1.5M from surface of unit | 52 dBA |
| Certifications | |
| Environmental | RoHS Compliant |
| Safety | CE |
| Warranty | |
| Product Warranty | 2 Year Limited Warranty |
