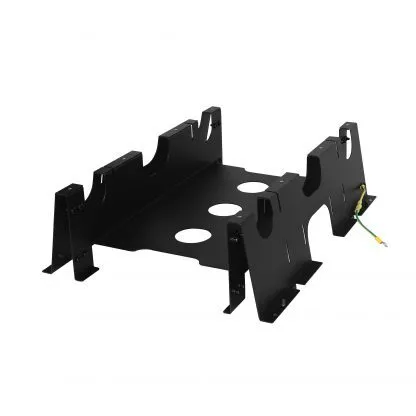

Cyber Power - CRA30009 - Roof-Mounted Power Cable Trough, for 600MM Wide Rack Enclosures, 5 Year Warranty
Part number:
CRA30009
Price:
The CRA30009 trough system allows users to safely and securely run power distribution on top of rack enclosures. Can be used across multiple racks in a row to create a dedicated path for cable runs, reducing cable stress. This model features toolless mounting to the rack roof panel and has a grounding stud to tie-in to the enclosure and the facility ground. Compatible with the CR42U11001 and CR24U11001 rack enclosures. The CRA30009 comes with a 5-year limited warranty.
Features:
- Type: Cable management trough system
- Compatibility: Fits CR42U11001 and CR24U11001
- Installation: Toolless mounting
- Warranty: 5 years
| General | |
| Type | Power Cable Trough |
| Physical | |
| Installation | Toolless Mounting |
| Material | Cold Rolled Steel |
| Unit Dimensions – WxHxD (in) | 22.44 x 7.09 x 18.11 |
| Unit Dimensions – WxHxD (mm) | 570 x 180 x 460 |
| Weight (lbs) | 8.4 |
| Weight (kg) | 3.8 |
| Shipping Dimensions – WxHxL (in) | 18.9 x 7.9 x 23.6 |
| Shipping Dimensions – WxHxL (mm) | 480 x 200 x 600 |
| Shipping Weight (lbs) | 10.7 |
| Shipping Weight (kg) | 4.9 |
| Certifications | |
| Approvals | RoHS |
| Warranty | |
| Product Warranty | 5 Years Limited |
