PDK - RDRMRK - Rugged Reader - Mullion Keypad
Part number:
RDRMRK
Price:

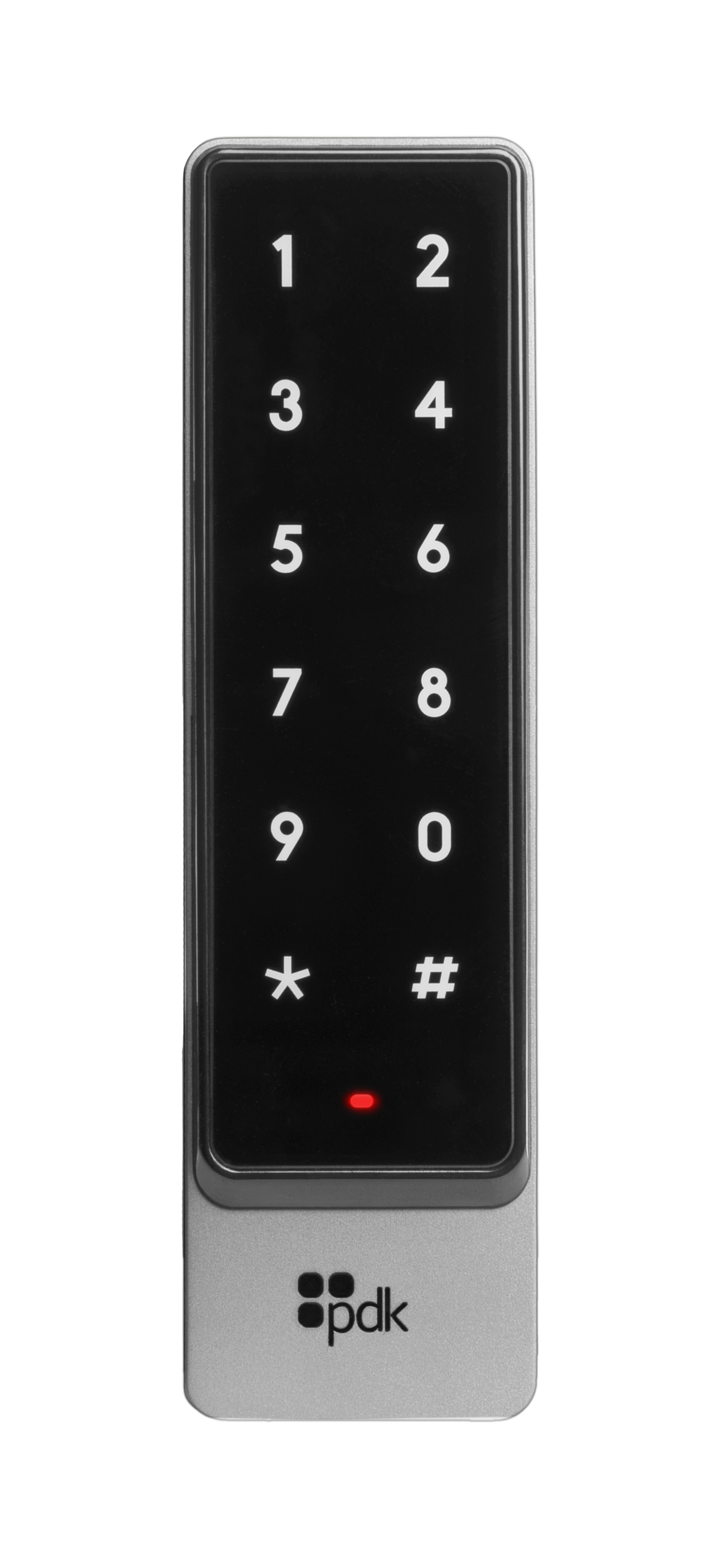

Ruggedized Mullion Touchscreen Keypad Reader, Prox (125 kHz), Wiegand
| Part Number | RDRMRS | RDRGRS | RDRMRK | RDRGRK |
| Read Range | ≤ 2” inches (5cm) | |||
| Input | 125 kHz | |||
| Output | 26 bit Wiegand protocol; 8-bit burst PIN mode | |||
| Temperature | -4° ~ +122° F (-20° ~ +50° C) | -4°F ~ 140°F (-20°C ~ 60°C) | ||
| Operating Humidity | 0 - 95% | |||
| Dust & Waterproof Rating | IP68 | |||
| Impact Protection Rating | IK10 | |||
| Power Voltage | DC12V±10% | |||
| Amperage Max | 45 mA | |||
| Dimensions | 4.05 x 1.88 x 0.86” | 4.72 x 3.27 x 0.89” | 6.3 x 1.8 x 1” | 5.7 x 3.3 x 1” |
