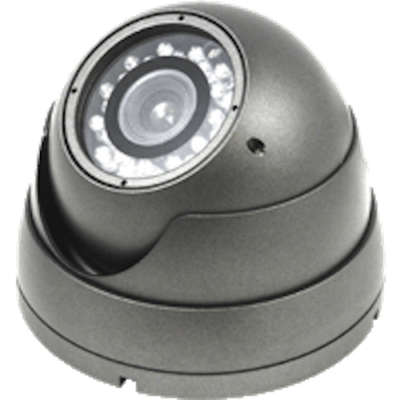

SecuNext - SN-DE700S - Eyeball Outdoor Day/Night Camera

Product Overview

The SN-DE700S is a legacy 700TVL analog eyeball dome featuring a 1/3" Sony Effio CCD sensor and a 3.6mm fixed lens. Housed in an IP67 waterproof metal casing, it provides reliable outdoor performance with 21 infrared LEDs for night vision and a standard CVBS/BNC output.

Key Configuration

• • Image sensor: 1/3" Sony Effio CCD (960H); resolution: 700 TV lines (analog)
• • Lens: 3.6mm fixed lens
• • Night vision: 21 infrared (IR) LEDs
• • Video output: CVBS (BNC)
• • Power: 12V DC; protection rating: IP67

Key Features

Built with a Sony Effio CCD for enhanced color accuracy, this camera features a 3-axis eyeball design for effortless aiming during setup. Its IP67-rated metal housing is fully dust-protected and submersible, while the double glass construction eliminates IR bleed and fogging to ensure clear night vision in harsh outdoor conditions.

Technical Context

Operating on the legacy 700TVL Sony Effio platform, this camera delivers standard CVBS video via BNC. Its IP67-rated metal eyeball design features 3-axis adjustment for easy aiming and a double glass interface to prevent night-time IR fogging. Powered by 12V DC, it uses 21 IR LEDs to provide reliable night vision for outdoor security.
