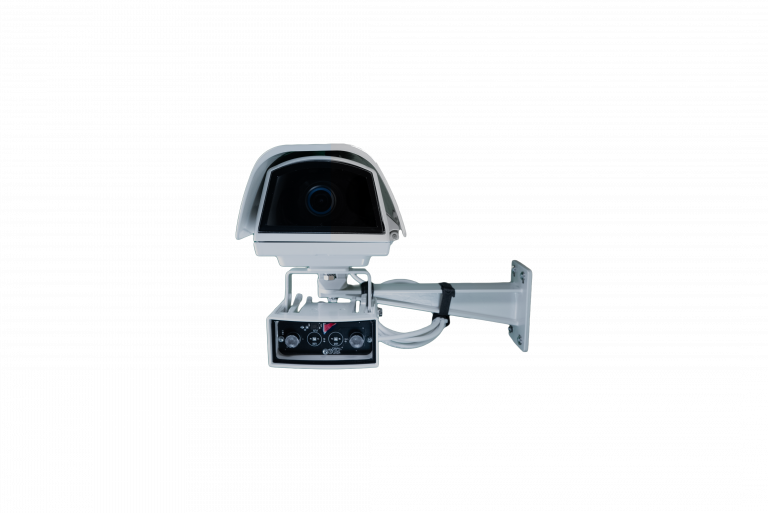

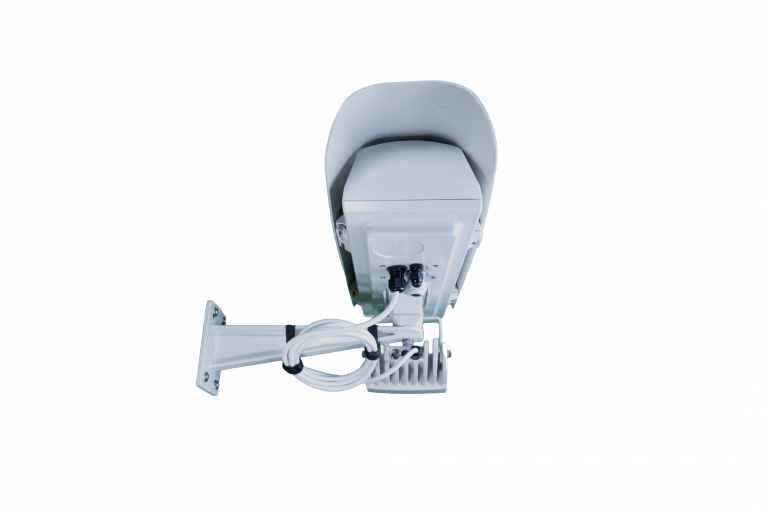

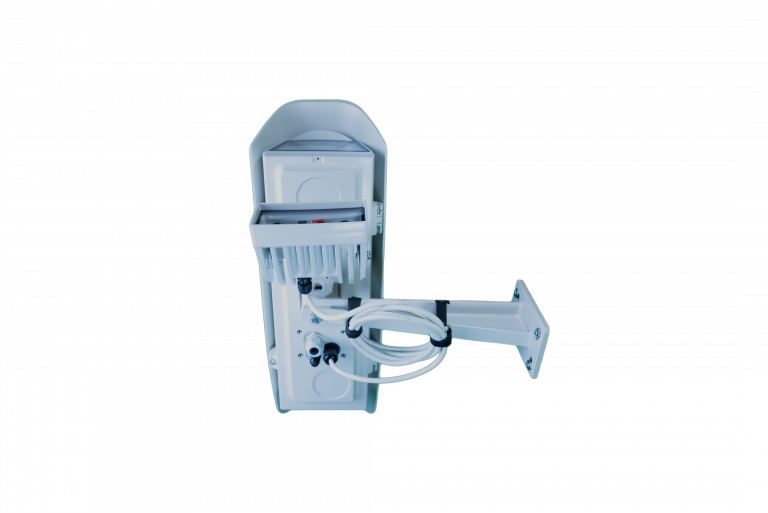

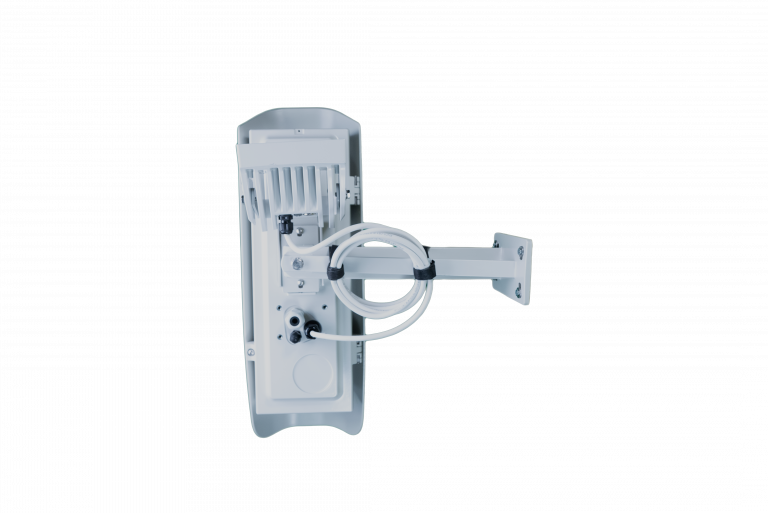

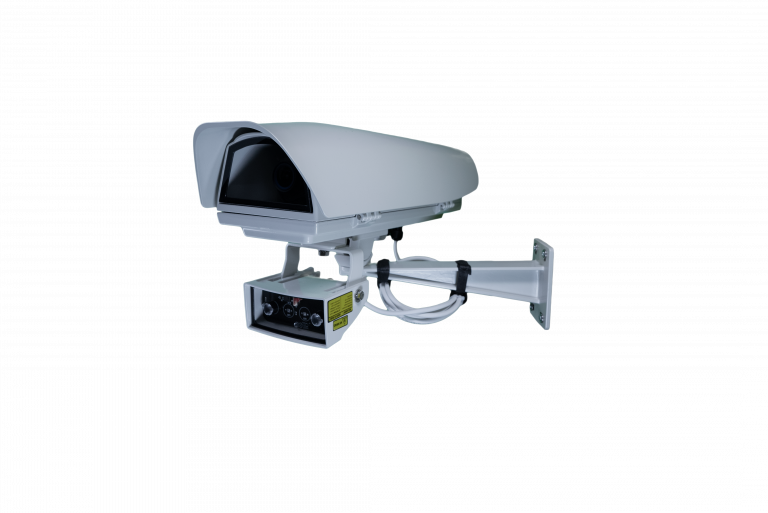

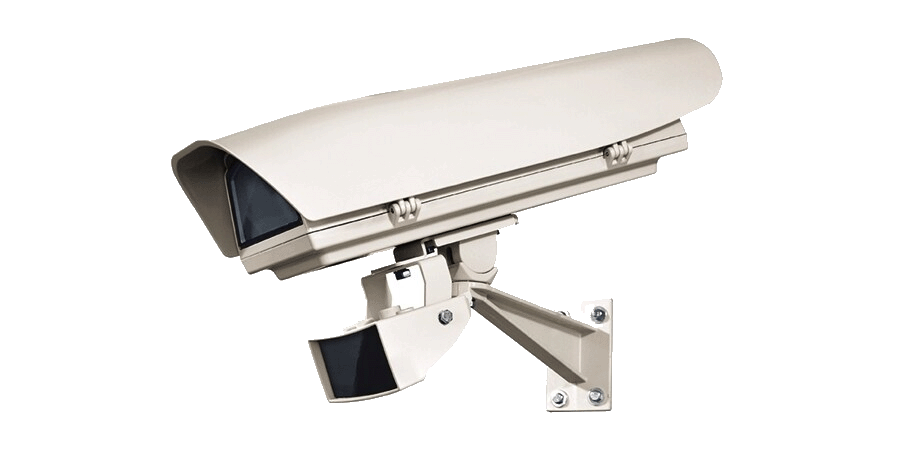

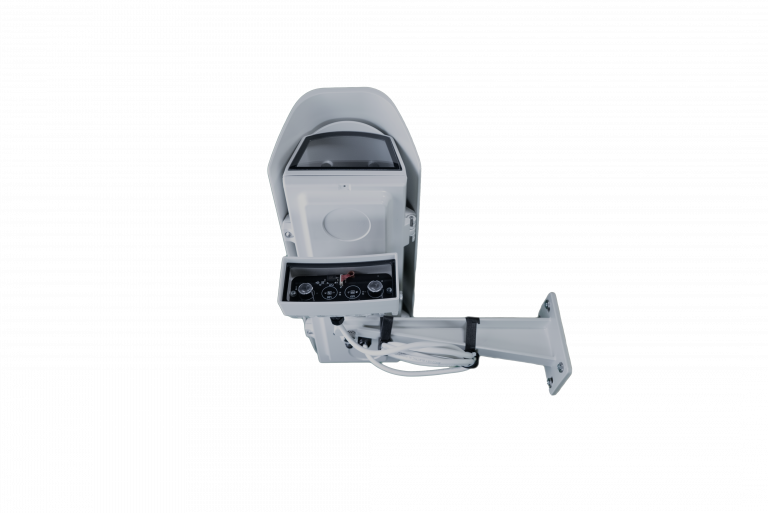

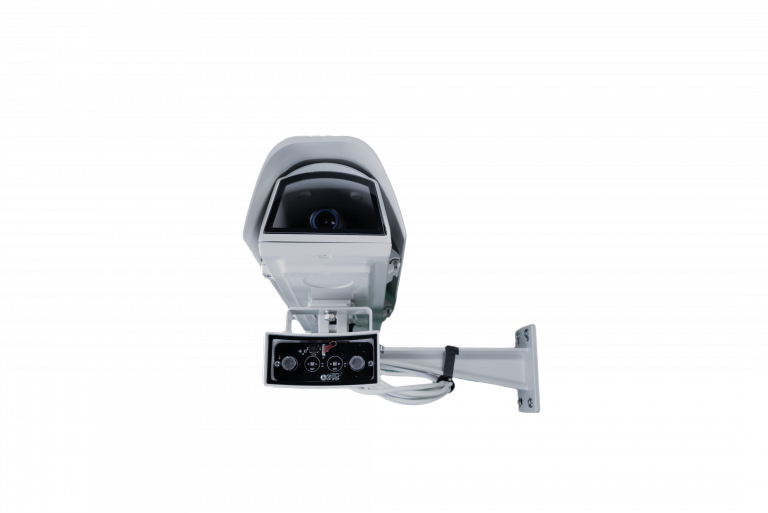

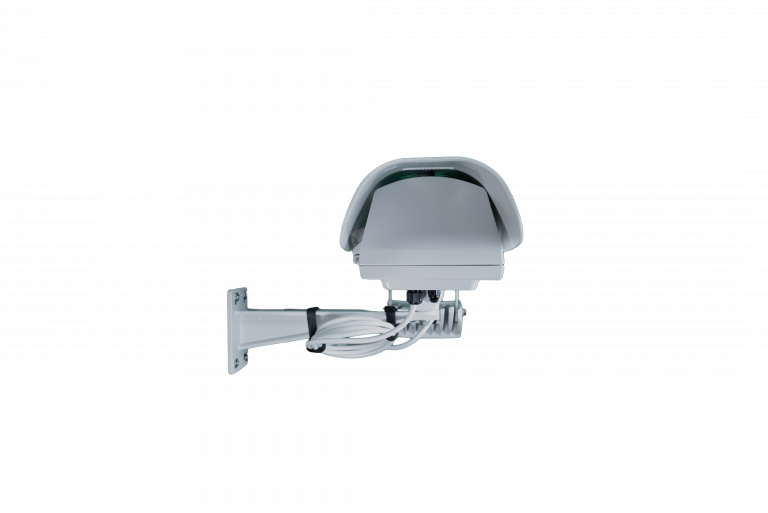

Hanwha - SHB-V-3200HPR - Outdoor enclosure with PoE+, IR and Wall mount for Box cameras. Compatible with most XNB and PNB Cameras. See complete camera compatibility list in the mount selection tool.
Part number:
SHB-V-3200HPR
Price:
Outdoor enclosure with PoE+, IR and Wall mount for Box cameras. Compatible with most XNB and PNB Cameras. See complete camera compatibility list in the mount selection tool.
Features:
- Robust aluminum housing designed to simplify the installation and service, and guarantee total protection against all environmental conditions.
- Its size makes it ideal for housing various combinations of standard box cameras with fixed or compact zoom lenses.

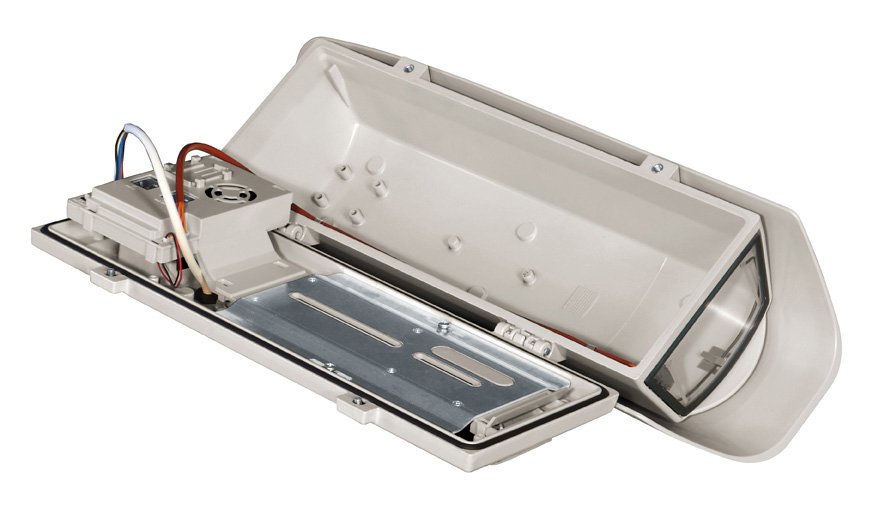

- Easy to install thanks to the side-opening system that allows full access to the camera, lenses and all internal connections.
- Include housing, PoE/PoE+ Camera board, Wall Bracket with ball joint, & IR Illuminator.
- IP66, excluding front glass.
| TECHNICAL DATA |
| MECHANICAL |
| Constructed from aluminium |
| Sunshield in ABS |
| Epoxypolyester powder painting, RAL9002 color |
| Stainless steel external screws |
| Internal usable area (WxH): 100x70mm (3.9x2.7in) |
| Internal usable length (with or without accessories): 250mm (9.8in) |
| Cable glands: 3xM16 |
| Extra clear glass window |
| • Dimensions (WxH): 118x75mm (4.6x2.95in) |
| Unit weight: 3kg (6.6lb) |
| ELECTRICAL |
| IPM technology (Intelligent Power Management) which offers the following power |
| options, selectable from dip switch: |
| ENVIRONMENT |
| For indoors and outdoors installation |
| Operating temperature (with fan): from -10°C (14°F) up to +60°C (140°F) |
| Relative humidity: from 5% up to 95% |
| CERTIFICATIONS |
| Electrical safety (CE): EN60950-1, IEC60950-1, EN62368-1, IEC62368-1 |
| Electromagnetic compatibility (CE): EN50130-4, EN61000-6-3, EN55032 Class B, FCC Part. |
| 15 Class B, ICES-003 Class B |
| Outdoor installation (CE): EN60950-22, IEC 60950-22 |
| IP protection degree (EN60529): |
| • IP66 (with cable glands) |
| IK protection degree (EN62262): |
| • IK10 (except for the front glass) |
| Salty fog resistance: to 1000 hours (ISO9227) |
| UL certification cULus Listed, TYPE 4X |
| EAC certification Input: PoE @ 12.95W PoE class 3 |
| Input: PoE+ @ 25.5W PoE class 4 |
| Note: PoE/PoE+ injector not included |
| Available power for camera (PoE IN class 3): PoE Class 2 (7W) |
| Available power for camera (PoE+ IN class 4): PoE class 3 (13W) |
| IR Illuminator: 6W |
| Demisting with forced hot air: 5W |
| Compatible with IEEE 802.3af, IEEE 802.3at/PoE Plus |
