Planet - POE-175-95 - Single-Port 10/100/1000Mbps 802.3bt PoE++ Injector (95 Watts, 802.3bt Type-4/UPoE/Legacy mode support via DIP switch) - w/ internal power
Product Overview

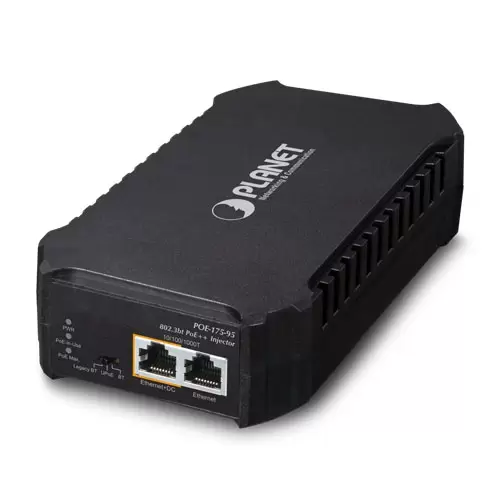

The Planet POE-175-95 is a Gigabit 802.3bt PoE++ injector that delivers up to 95W of power over a single Ethernet connection. It supports 802.3bt Type 4, UPoE, and Legacy modes via DIP switch, uses 4-pair power delivery for high-power devices, and features an integrated power supply, real-time PoE usage LEDs, and 10/100/1000Mbps data support.
Key Configuration

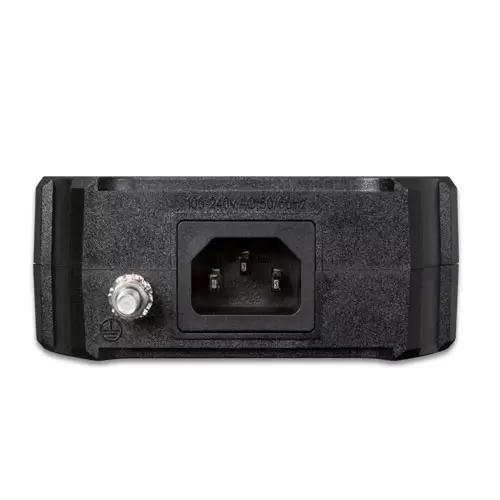

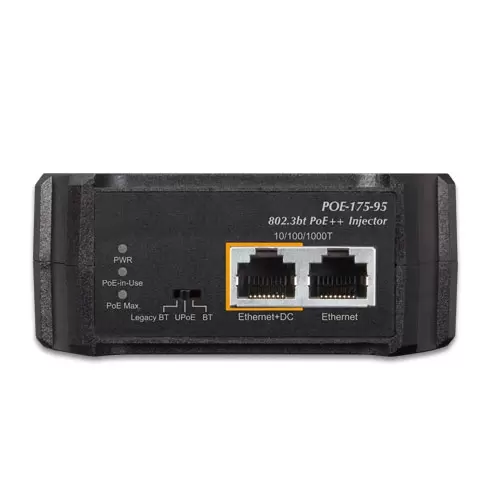

- • Interfaces: 1 × RJ45 Data In, 1 × RJ45 PoE Out (Data+Power), 1 × AC input socket
- • PoE standard: 802.3bt Type-4, UPoE, Legacy (mode selectable via DIP switch)
- • Power output: 54V DC, up to 95W via 4-pair / up to 30W via 2-pair; max 90W at 1m cable, max 73W at 100m cable
- • Data rate: 10/100/1000 Mbps
- • Power input: 100-240V AC, 1.5A max; consumption: 120W max
- • Dimensions: 170 × 100 × 40 mm; weight: 480g
Key Features
802.3bt Type 4 PoE++ injector delivering up to 95W over 4-pair Ethernet cabling. Supports 802.3bt, UPoE, and legacy PoE modes, with LED indicators for power status and PoE usage. Backward compatible with 802.3af/at devices and features an integrated power supply for plug-and-play deployment.
Technical Context
Designed for high-power PoE devices such as PTZ cameras, digital signage, and touch-panel PCs. Uses both data and spare wire pairs to deliver up to 95W, while automatically supporting lower-power PoE standards. Power output varies slightly with cable length due to transmission losses.
Installation Notes
Desktop unit measuring 170 × 100 × 40 mm and weighing 480g. Operates from 0°C to 50°C with a 100–240V AC input and provides up to 95W at 54V DC output. Includes a power cord and supports Cat5e or better cabling for maximum performance over 100m.
| Hardware Specifications | |
| Interface | Input Port
AC Socket |
| Network Cable | Twisted-pair cable up to 100 meters (328ft) 10BASE-T: 4-pair UTP Cat. 3, 4, 5, 5e, 6 100BASE-TX: 4-pair UTP Cat. 5, 5e, 6 1000BASE-T: 4-pair UTP Cat. 5e, 6 |
| LED Indicator | PWR x 1 (Green) 2-pair x 1 (Green) 4-pair x 1 (Green) PoE Usage x 3 (Green) |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 170 x 100 x 40 mm |
| Weight | 480g |
| Unit Output Voltage | DC 54V |
| Power Requirements | AC 100-240V, 1.5A max. |
| Power Consumption | 120 watts max. |
| No. of devices that can be powered | 1 |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at/bt Ultra PoE PSE |
| PoE Power Output Budget | DC 54V / 95-watt PoE via 4-pair DC 54V / 30-watt PoE via 2-pair |
| PoE Power Output | Max. 90W@1 m cable Max. 73W@100 m cable |
| PoE Power Supply Type | End-span + Mid-span |
| Power Pin Assignment | Pair 1 End-span: 1/2 (-), 3/6 (+) Pair 2 Mid-span: 4/5 (+), 7/8 (-) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10BASE-T Ethernet IEEE 802.3u 100BASE-TX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bt 4-pair Power over Ethernet Type 4 IEEE 802.3at Power over Ethernet Plus IEEE 802.3af Power over Ethernet |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Environment | |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Operating Humidity | 5 ~ 90%, relative humidity, non-condensing |
| Storage Humidity | 5 ~ 90%, relative humidity, non-condensing |
| Standard Accessories | |
| Package Contents | POE-175-95 User’s manual Power cord |
