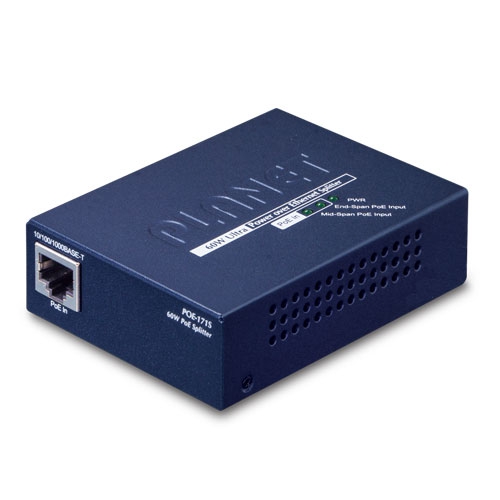

Planet - POE-171S - Single Port 10/100/1000Mbps Ultra POE Splitter (12V/19V/24V)
Product Overview
The Planet POE-171S is a Gigabit Ultra PoE splitter that converts 52–56V DC input from any 802.3at/bt PSE into a selectable 12V (4A), 19V (2.6A), or 24V (2A) DC output via DIP switch, delivering up to 50W to power non-PoE devices. It features passive 10/100/1000Mbps data pass-through, supports both End-span and Mid-span PoE input for universal compatibility, and operates plug-and-play with no configuration required.
Key Configuration
• PoE input: 1 × RJ45 supporting 802.3at/bt PD (52–56V DC).
• Data output: 1 × Gigabit RJ45 pass-through port.
• DC output: Selectable 12V (4A), 19V (2.6A), or 24V (2A) via DIP switch.
• Power output: Up to 50W maximum.
• Dimensions: 95 × 70 × 26 mm; weight: 300 g.
Key Features
The POE-171S is a PoE splitter that separates 802.3at/bt power from data, converting 52–56V DC input to a regulated 12V, 19V, or 24V DC output selectable via DIP switch. It supports both End-span and Mid-span PoE input, making it compatible with all PSE types, and delivers up to 50W output to power non-PoE devices such as IP cameras, laptops, thin clients, or industrial PTZ equipment.
Technical Context
Passive Gigabit data pass-through ensures seamless connectivity between the PSE and the non-PoE device over Cat5e/6 cable up to 100 meters. The unit is plug-and-play with no configuration required, and its LED indicator shows power status. It works with any 802.3at or 802.3bt injector or switch, and pairs with the Planet POE-171 injector for a complete PoE solution.
Installation Notes
The splitter measures 95 × 70 × 26 mm (3.74 × 2.76 × 1.02 in.), weighs 300g (0.66 lb), and outputs via DC jack with options of 12V at 4A, 19V at 2.6A, or 24V at 2A. It operates from 0–50°C with 5–95% RH and stores from -10–70°C, is TAA compliant, and carries FCC Part 15 Class A and CE certifications for reliable performance.
| Hardware Specifications | |

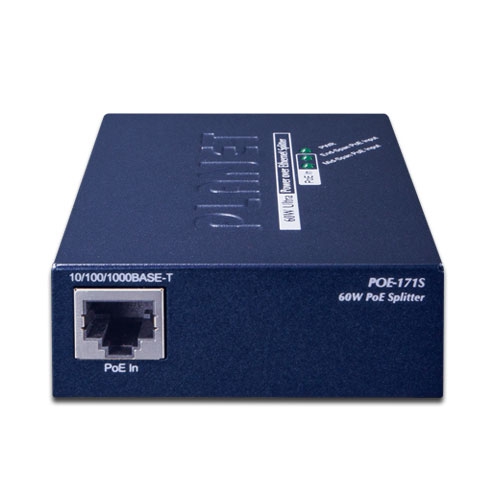

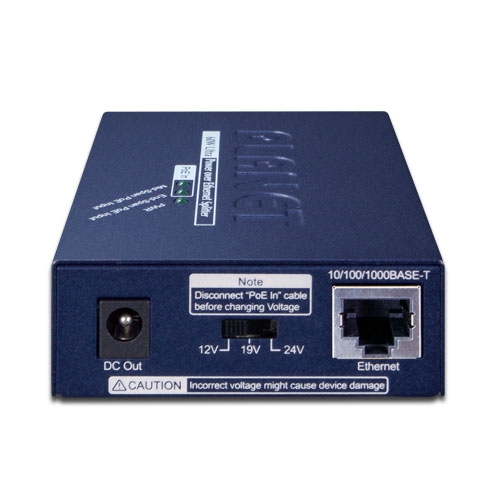

| Interface | Input Port – 1 x RJ-45 STP – PoE (Data + Power) In Output Port – 1 x RJ-45 STP – Data Out DC Socket – DC Out DIP-Switch – 12V DC/19V DC/24V DC output voltage |

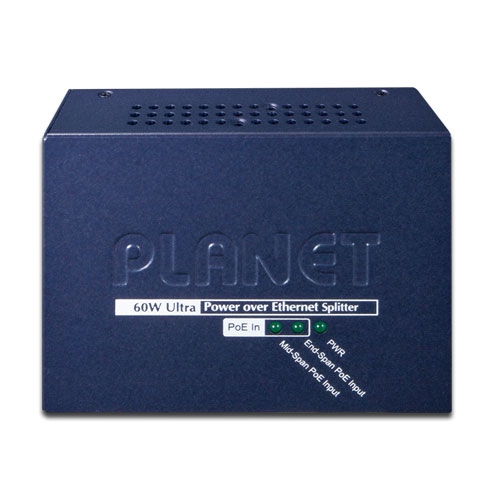

| LED Indicator | System: Power x 1 (Green) |
| Network Cable | Ultra PoE (60W): 10/100/1000Base-T: 4-Pair UTP Cat. 5e, 6 up to 100m (328ft) 802.3af / at PoE (15W / 30W): 10/100/1000Base-T: 2-Pair UTP Cat. 3, 5, 5e, 6 up to 100m (328ft) |
| Data Rate | 10/100/1000Mbps |
| Dimensions (W x D x H) | 95 x 70 x 26 mm |
| Weight | 300g |
| Power Requirements | 52 ~ 56V DC |
| Power Consumption | 50 watts (maximum) |
| Operating Temperature | 0 ~ 50 degrees C |
| Storage Temperature | -10 ~ 70 degrees C |
| Humidity | 5 ~ 95% (Non-condensing) |
| Power over Ethernet | |
| PoE Standard | IEEE 802.3at Power over Ethernet Plus |
| Power Output | DC 12V/19V/24V by DIP switch control |
| PoE Power Supply Type | End-Span + Mid-Span |
| Power Pin Assignment | Pair 1: 1/2(-), 3/6(+) Pair 2: 4/5(+), 7/8(-) |
| Standards Conformance | |
| Standards Compliance | IEEE 802.3 10Base-T Ethernet IEEE 802.3u 100Base-TX Fast Ethernet IEEE 802.3ab 1000Base-T Gigabit Ethernet IEEE 802.3at High Power over Ethernet IEEE 802.3af Power over Ethernet |
| Regulation Compliance | FCC Part 15 Class A, CE |
